18
Projecting an Image
Changing the aspect ratio of the projected image
Press the ASPECT key on the remote commander to change the aspect ratio of the projected
image. You can also change the setting in Aspect of the Screen menu (pages 23, 25).

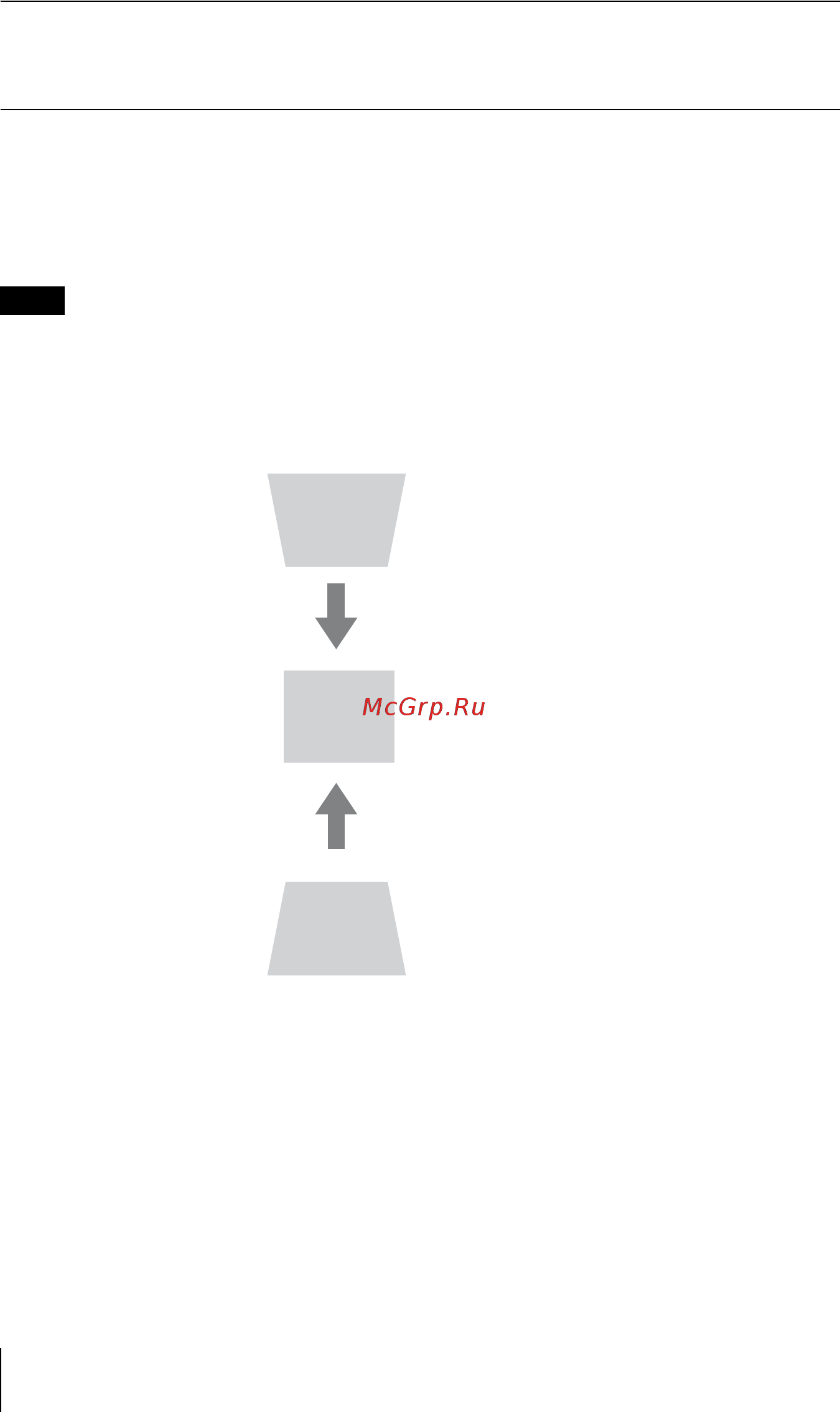

Correcting trapezoidal distortion of the projected image (Keystone feature)
If the image becomes trapezoidal, set the keystone manually.
1 Press the KEYSTONE key on the remote commander or select V Keystone in the Installation
menu.
2 Use the V/v/B/b keys to set the value. The higher the value, narrower the top of the projected
image. The lower the value, the narrower the bottom.
• Since the Keystone adjustment is an electronic correction, the image may be deteriorated.
• Depending on the position adjusted with the lens shift feature, the aspect ratio of the image may
change from the original or projected image may be distorted with Keystone adjustment.
• If you perform keystone adjustment and use mouse mode, the position of the Interactive Pen
Device and the computer cursor may not match. In this case, perform the calibration again.
(VPL-SW636C only)
Notes
Increase the number
towards plus
Increase the number
towards minus
