Connecting the Projector
Preparation
B Preparation
Connecting the Projector
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A/INPUT B
It is recommended that you set the resolution of your computer to 1280 × 800 pixels
(VPL-SW636C/SW631C/SW631) or 1024 × 768 pixels (VPL-SX631) for the external
monitor.
INPUT C
Notes
Connecting a Computer

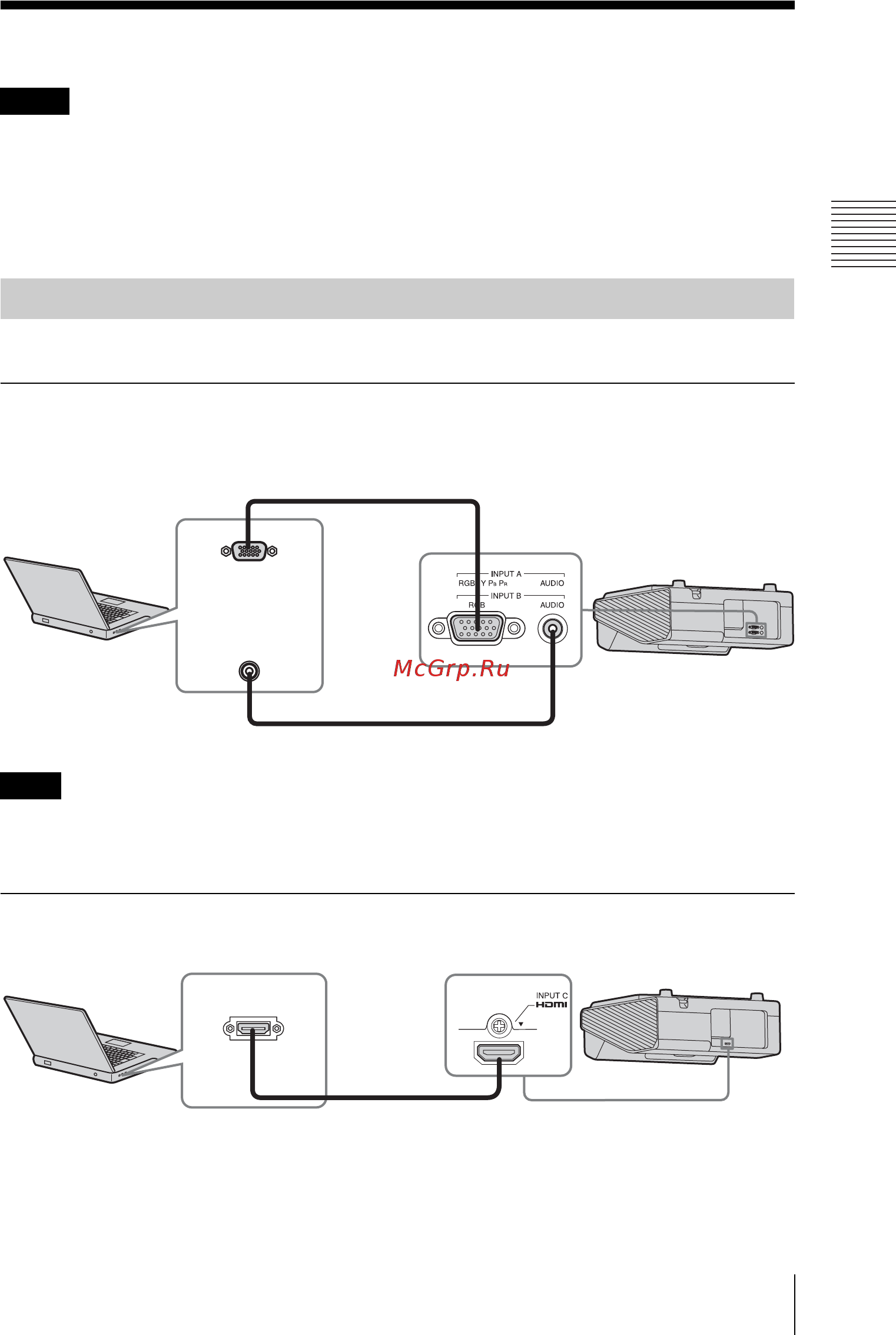

For connecting a computer with an RGB output terminal.
RGB output
terminal
Audio output
terminal
Mini D-sub 15-pin cable (not supplied)
Computer
Audio cable (Stereo mini plug) (not supplied)
Note
For connecting a computer with an HDMI output terminal.
HDMI output
terminal
HDMI cable
(not supplied)
Computer
