Sony VPL-SX631 [71/106] Display mode

Using USB Media Viewer

USB Media Viewer

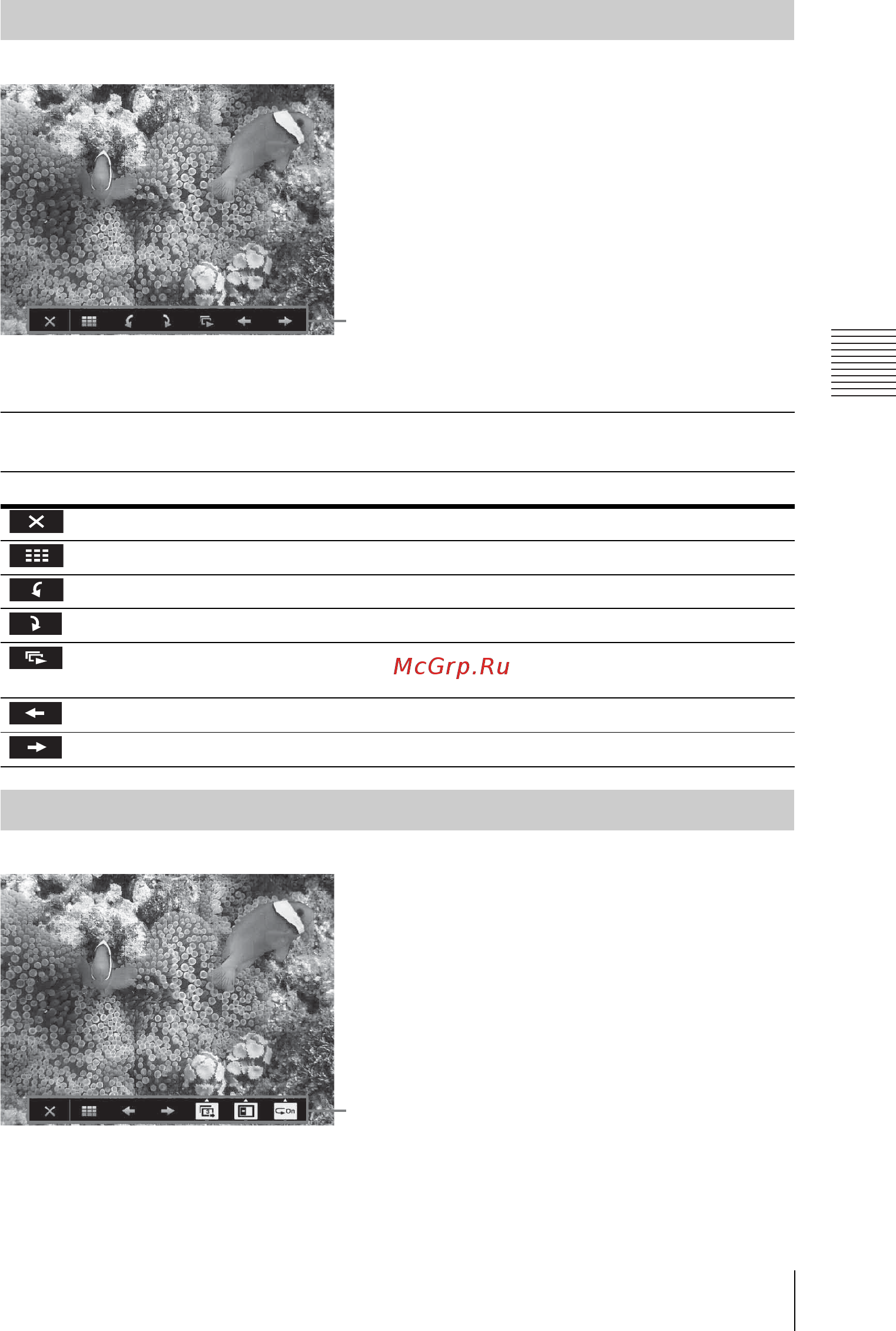

In display mode, you can view a selected image in full screen view.

Press the ENTER key on the remote commander. The option menu appears in the lower part of

the screen.

Option Menu

In slideshow mode, you can view images as a slideshow.

Press ENTER key on the remote commander. The slideshow pauses and the option menu

appears in the lower part of the screen.

Display Mode

Option menu

Items Item descriptions

Hide the option menu.

Return to the thumbnail mode (page 70).

Rotate the image 90 degrees counter-clockwise.

Rotate the image 90 degrees clockwise.

Switch to the slideshow mode, and start the slideshow from the selected

image. (page 71)

Display the previous image.

Display the next image.

Slideshow Mode

Option menu
