4

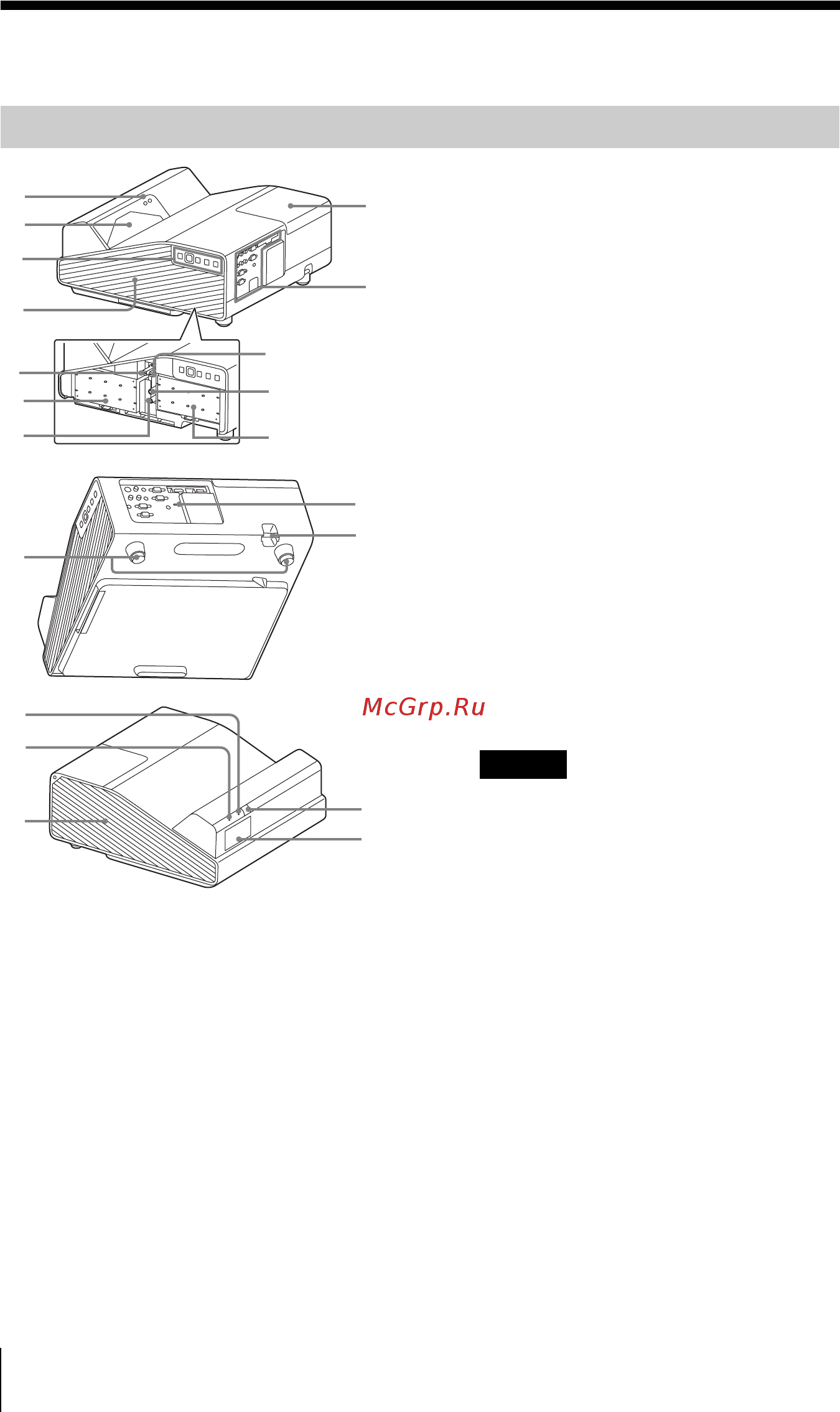

Location and Function of Controls
B Overview
Location and Function of Controls
a Interactive Pen detector
(VPL-SW636C/SW631C only)
b Projection window
c Control panel keys (page 6)
d Side cover/Ventilation hole
(intake)
e Focus lever (page 16)
f Air filter (page 82)
g Lens shift dial H (page 17)
h Lends shift dial V (page 17)
i Zoom lever (page 16)
j Terminals (page 5)
k Lamp cover (page 80)
l Foot (page 17)
m Security bar
Connects to a commercially available
security chain or wire.
n Security lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
o ON/STANDBY indicator
(page 73)
p WARNING indicator (page 73)
q Ventilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
r Speaker
s Remote control receiver
Main Unit
7
4
5
6
2
1
3
0
qa
8
9
6
qs
qd
qf
qh
ql
qk
qg
qj
Caution
