70
Using USB Media Viewer
Press the V/v/B/b key on the remote commander to select an image, then press the ENTER
key. The option menu appears in the lower part of the screen.
Option Menu
You can select the display order of thumbnails and display method of image files.
• Files without thumbnail data (including those created by an application) appear as blank icons.
• Cannot display more than 200 image files and folders in one folder.

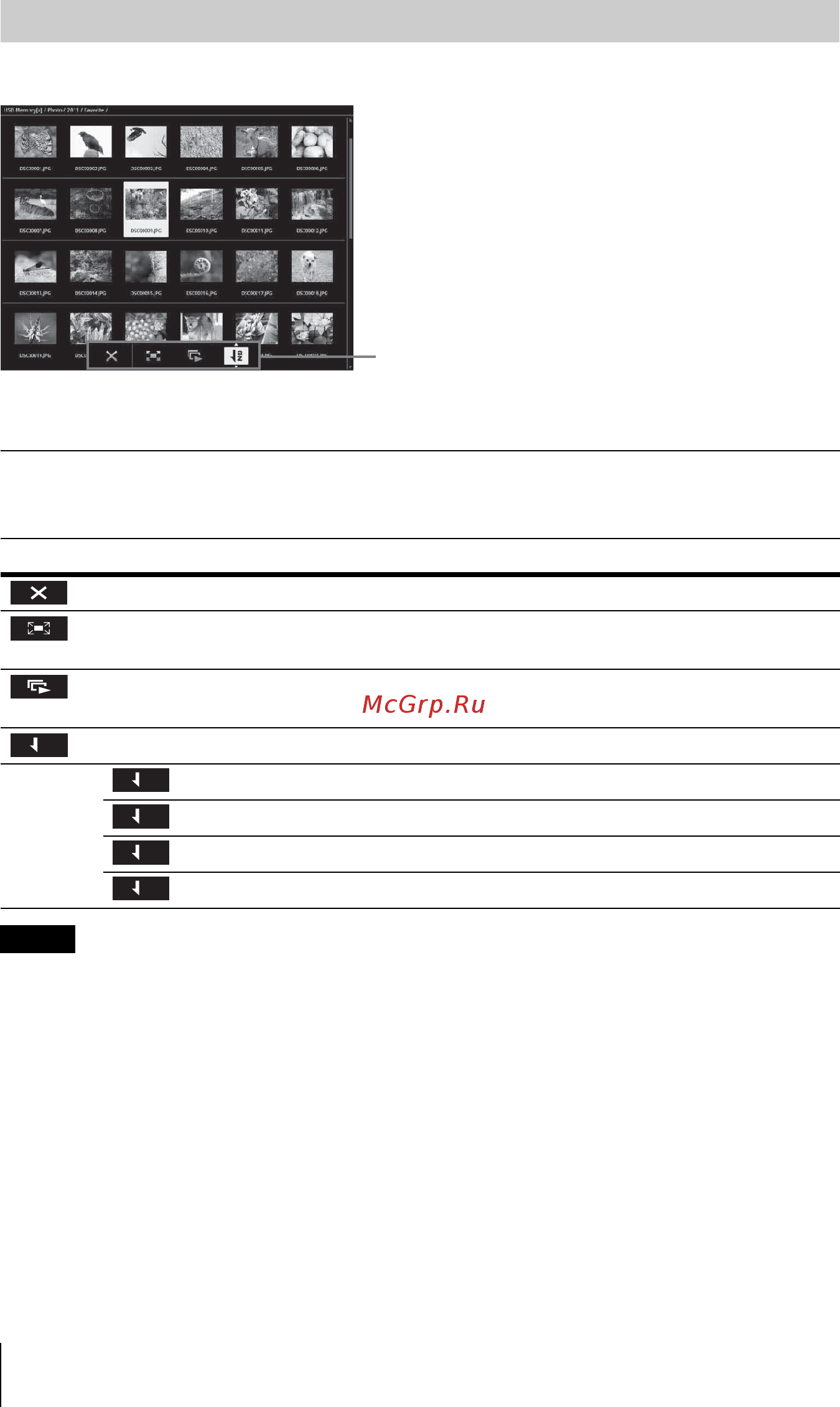

Thumbnail Mode
The image files in the folder are displayed as a thumbnail list.
Option menu
Items Item descriptions
Hide the option menu.
Switch to the display mode, and display the selected image in full screen
view. (page 71)
Switch to the slideshow mode, and start the slideshow from the selected
image. (page 71)
Sort image files.
Sort by name in alphabetical order.
Sort by name in reverse alphabetical order.
Sort by date in chronological order.
Sort by date in reverse chronological order.
Notes
a
z
a
z
a
z
1
2
2
1
