51
Using Interactive Presentation Utility 2 (VPL-SW636C/SW631C only)
Interactive Function
Icon for Interactive Presentation
Utility 2
Calibration Auto/Manual
Calibration aligns the points where the pen
(Main and Sub) is pointing and where the
projector displays the cursor on the screen.
“Calibration Auto” allows you to execute the
calibration automatically.
Click “Calibration” to select “Calibration
(Auto).” The calibration starts automatically.
Operating with the Interactive Pen
Device
With the Interactive Pen Device, you can use
the functions of the toolbar on the screen.
See “User’s Guide of Interactive
Presentation Utility 2” for details.
Closing Interactive Presentation
Utility 2

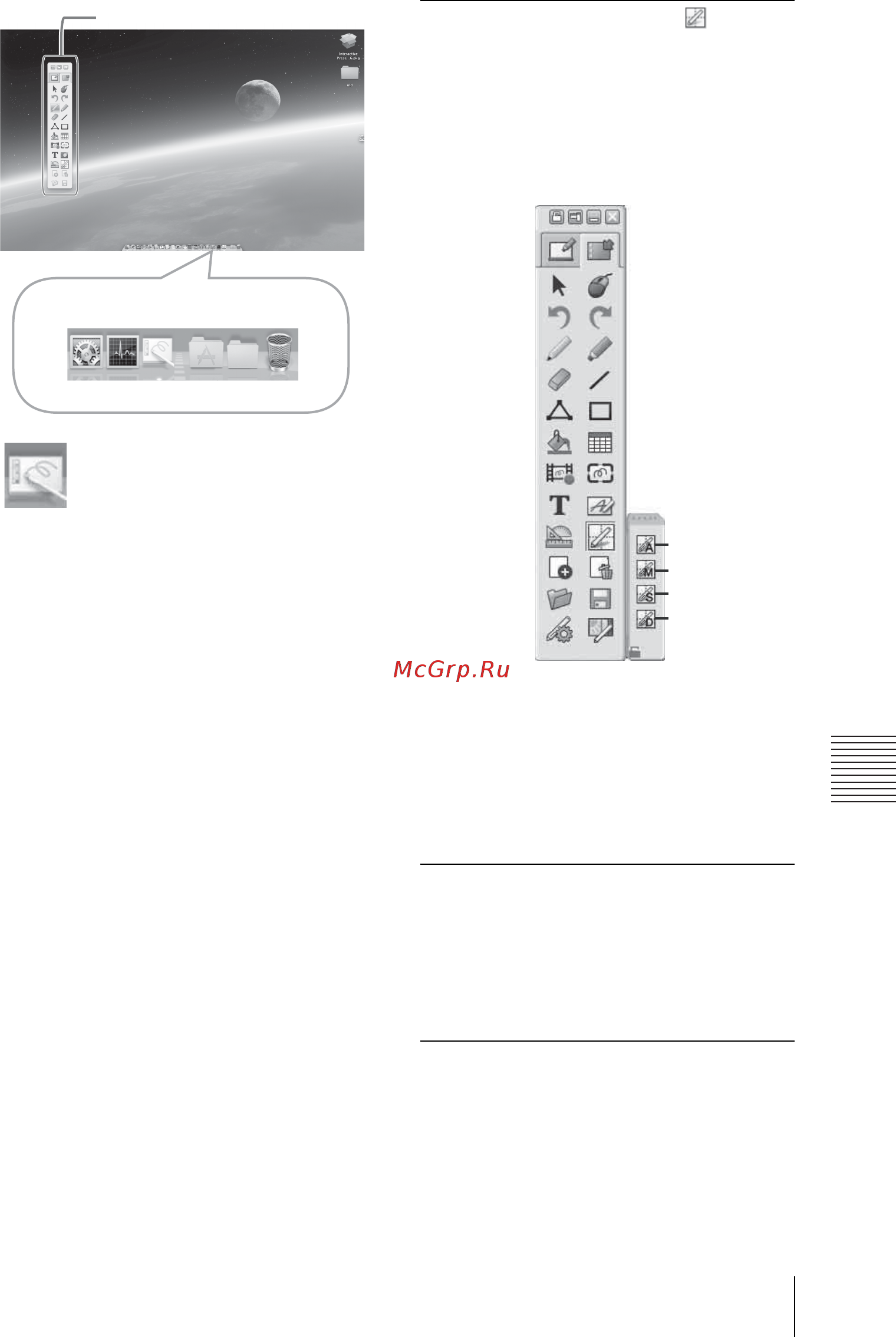

Click the icon in the Dock to display the
pop-up menu, then select [Exit].
Dock
Toolbar
a
b
c
d
Main Pen toolbar
a Calibration (Auto)
b Calibration (Manual (Main))
c Calibration (Manual (Sub))
d Saving calibration data
