a) Remove the product contained in the chiller compartment and place it immediately in a freezer to
ensure it is preserved correctly. Remove the support grids.
b) Switch off the equipment by pulling the plug from the coupling point voltage.
c) Wait at least 4 to 6 hours until the ice on the evaporator has melted completely, before proceeding
with cleaning the equipment. We recommend waiting until the following day to make sure the product
has been completely defrosted.
d) Wash the bottom of the tank and the sides with a mild detergent, warm water and a cloth or a non-
abrasive sponge. Rinse well and dry using a cloth.
8. ROUTINE MAINTENANCE and REGULAR CHECK
8.1 Chiller compartment inside cleaning
8.2 Accessing and cleaning the Condensing Unit

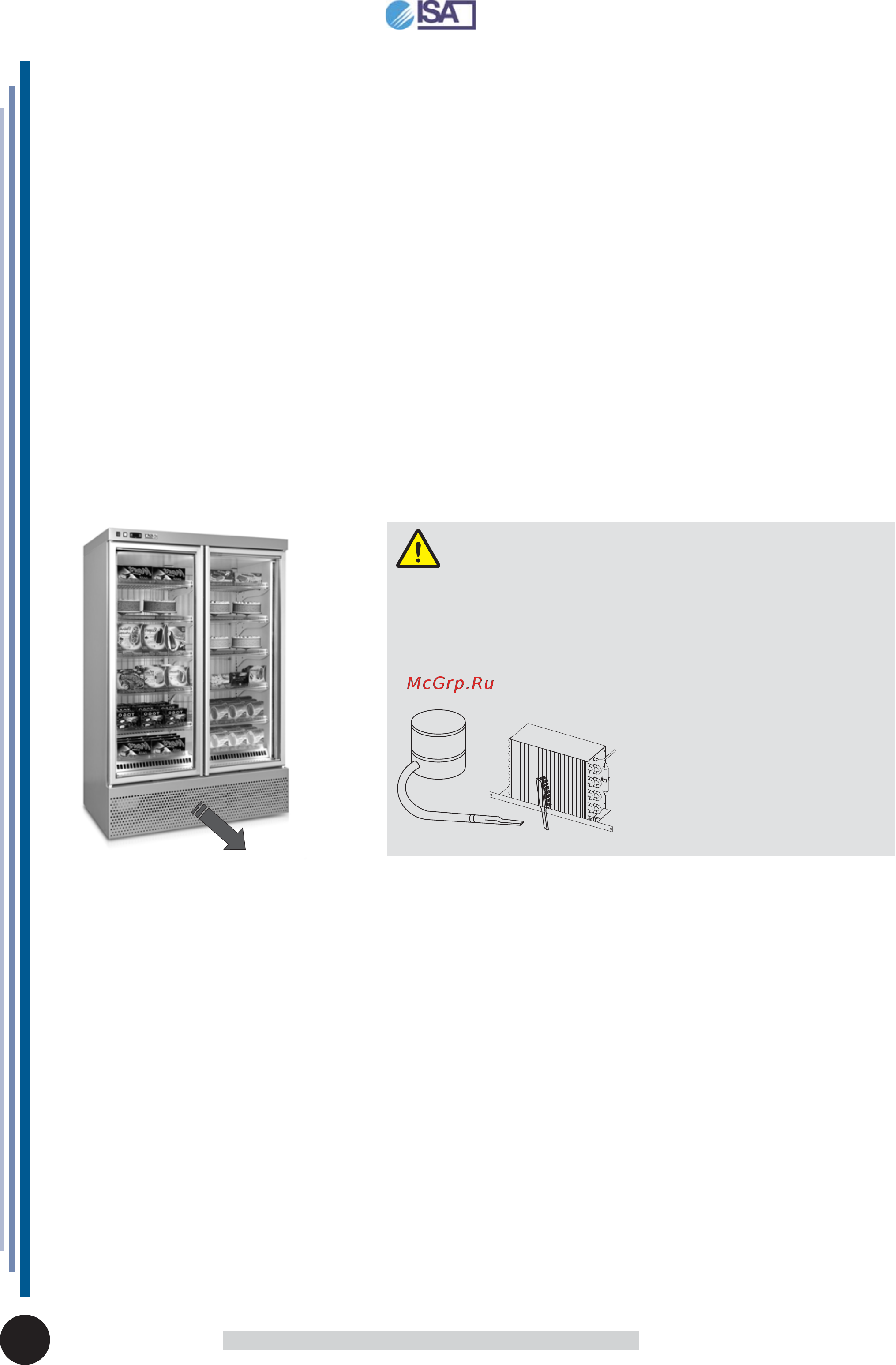

Remove the rear protective grid by loosening the specifi c fi xing screws.
Attention
Clean the condensing unit using a suction brush.
Clean the CONDENSING UNIT using a soft bristle
brush; make sure you do not bend the condensing unit
springs whilst cleaning it.
8.3 External cleaning operations
The external surfaces should be cleaned as follows:
STAINLESS STEEL
Wash with lukewarm water and mild detergents, rinse
and dry using a soft cloth.
ACRYLIC OR POLYCARBONATE SURFACES
Wash with lukewarm water, using a soft cloth or a chamois cloth.
Do not use detergents, alcohol, acetone and solvents.
Do not use abrasive cloths or sponges.
GLASS SURFACES
Only use products specifi cally designed for cleaning glass.
We do not recommend using tap water, which may leave calcium deposits on the surface of the glass.
