• When changing the cutter bit, make sure its shank is held by at
least 20 mm of its length.
• Prior to cutting ensure that there is enough free space under
processed material to prevent contact of the cutter bit and
other objects.
• Check surface of the working area. Make sure there are no
unwanted objects (nails, screws etc.).
• Do not leave the router unattended when switched on.
• When the power tool is not in use, always keep it disconnected
from the power supply and stored in a place beyond reach of
children.
• Always disconnect the power tool from power supply prior
to commencing any activity related to its adjustment,
maintenance or operation.
• When cleaning the power tool do not use any solvent that
might damage plastic parts.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is
always a small risk of injuries at work.

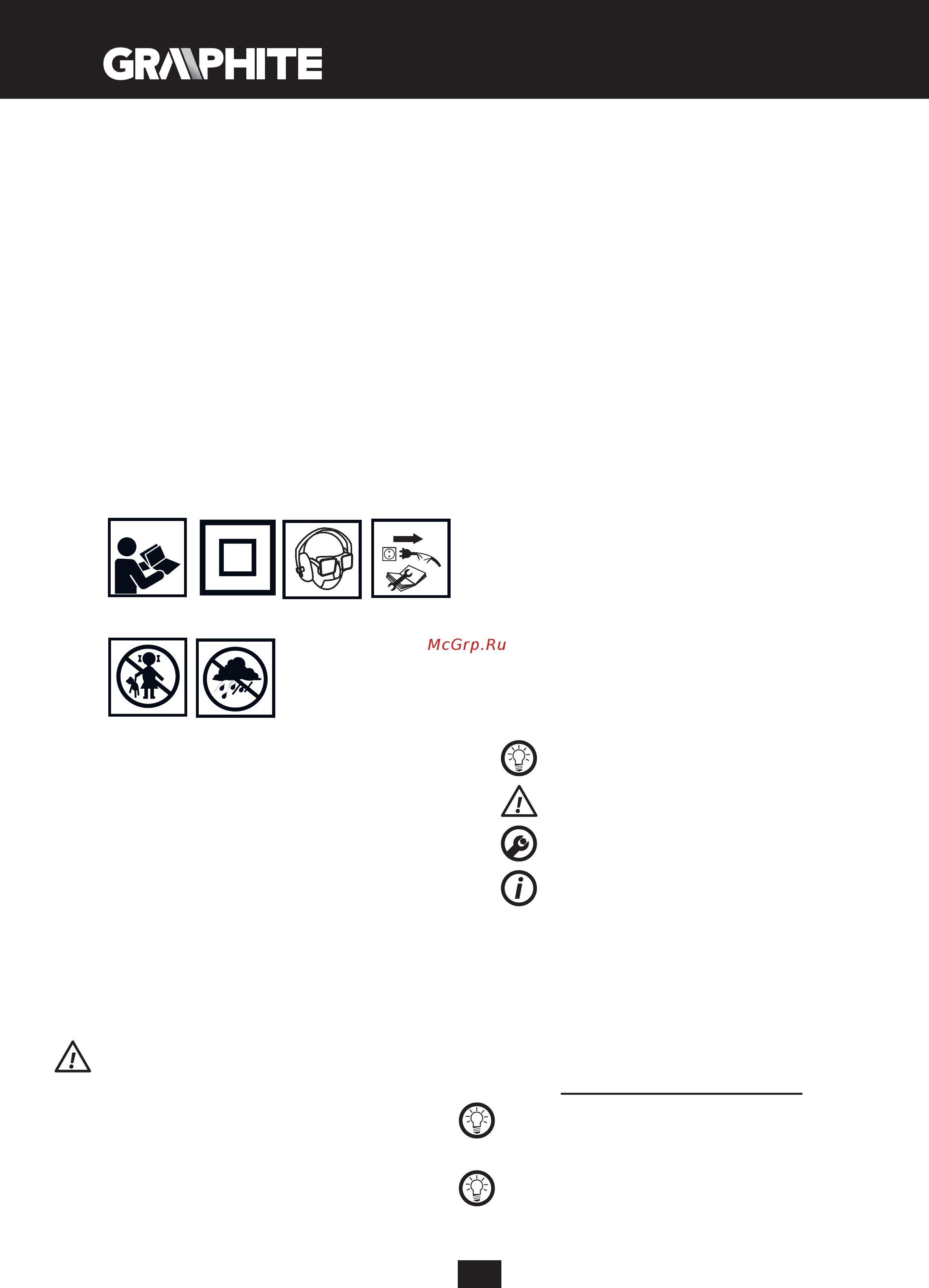

Explanation of used symbols
1234
56
1. Read instruction manual, observe warnings and safety
conditions therein.
2. Protection class 2.
3. Use personal protection measures (protective goggles,
earmuff protectors, anti-dust mask).
4. Disconnect the power cord before starting maintenance or
repair.
5. Keep the tool away from children.
6. Protect against rain.
CONSTRUCTION AND USE
Plunge router is a hand-held power tool with protection class
2. It is driven by a single phase commutator motor installed
vertically related to processed surface. Power tools of this type
are widely used for cutting in wood and wood-based materials.
Range of use covers woodworking, wood flooring, decoration or
renovation and construction tasks.
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on
the drawing pages of this manual.
1. Handle
2. Spindle lock button
3. Spindle
4. Spindle guard
5. Base
6. Plate
7. Depth gauge stepped bumper
8. Anti-dust shield of the body guide
9. Depth gauge locking knob
10. Depth gauge
11. Depth gauge indicator
12. Main scale
13. Precision scale
14. Knob for precise depth adjustment
15. Plunge guide locking lever
16. Indicator for precise depth adjustment
17. Illumination
18. Spindle spring
19. Collet sleeve
20. Fixing nut
21. Locking knobs for edge guide bars
22. Grooves for edge guide bars
23. Switch
24. Switch lock button
25. Wheel for rotational speed control
26. Edge guide bar
27. Edge guide
28. Knob for edge guide position adjustment
29. Indicator of edge guide position
30. Adapter fixing screw
31. Dust extraction adapter
32. Reducing connector
33. Spike
34. Butterfly nut of the spike
35. Guide sleeve
36. Guide sleeve collar
37. Flat key
* Differences may appear between the product and drawing
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY / SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Edge guide - 1 pce
2. Spike for cutting along arcs - 1 pce
3. Guide sleeve - 1 pce
4. Dust extraction adapter with reducer - 1 set
5. Adapter fixing screws - 1 set
6. Collet sleeve - 3 pcs
7. Flat key - 1 pce
PREPARATION FOR OPERATION
Spindle lock button can be used only for working tool installation
or removal. It cannot be used as a brake button when the spindle
is rotating. Otherwise the power tool may be damaged or the user
may be injured.
Do not tighten the spindle nut strongly before inserting a working
tool, this can damage the collet sleeve. Make sure that appropriate
collet sleeve is used each time the working tool is replaced.
