10
English

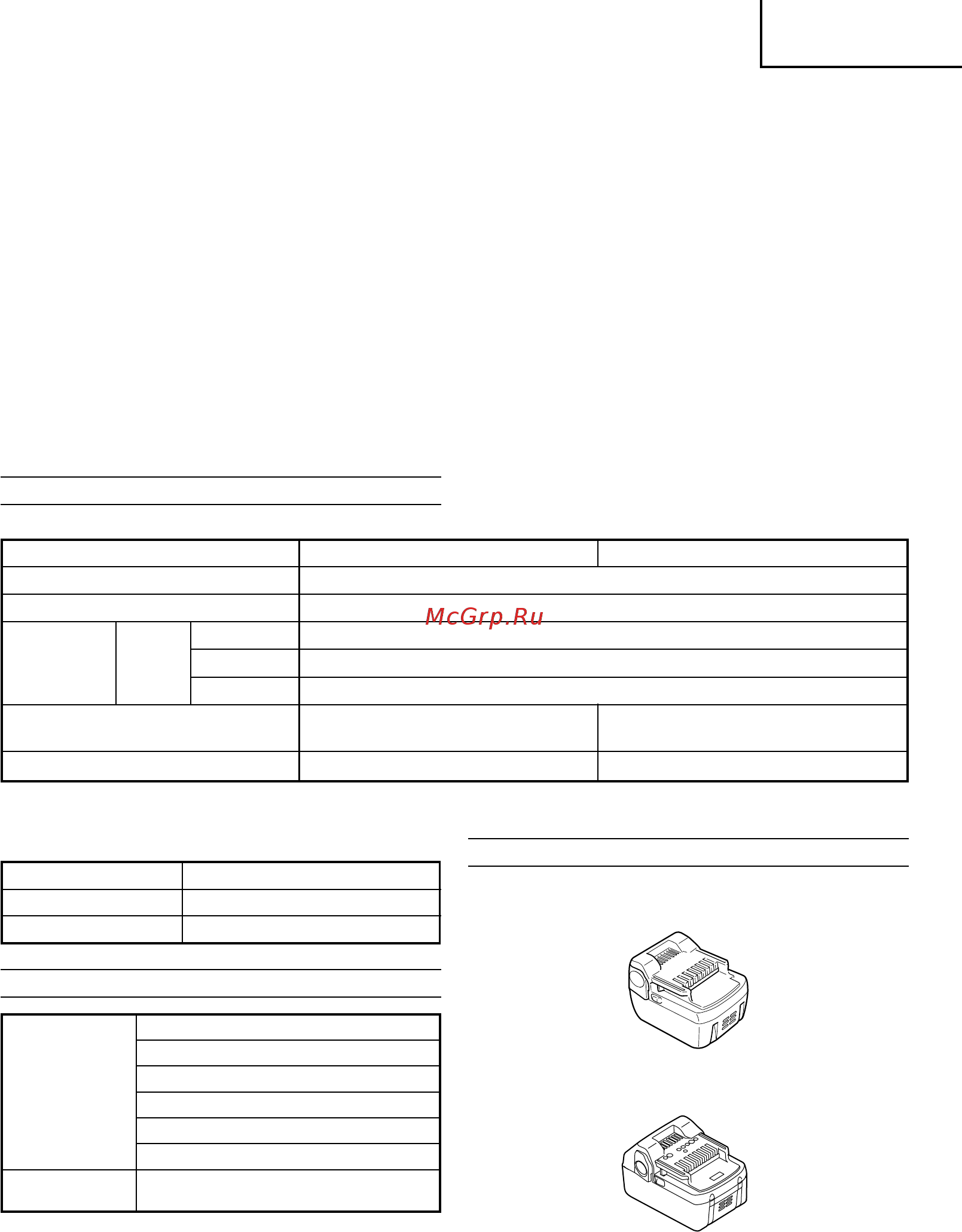

SPECIFICATIONS
POWER TOOL
䡬 Do not use the “SAVE“ mode when boring holes with the wood drill. There is a likelihood that the motor
will burn out.
8. Do not put or subject the battery to high
temperatures or high pressure such as into a
microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage
or foul odor are detected.
10. Do not use in a location where strong static
electricity generates.
11. If there is battery leakage, foul odor, heat
generated, discolored or deformed, or in any way
appears abnormal during use, recharging or
storage, immediately remove it from the equipment
or battery charger, and stop use.
CAUTION
1. If liquid leaking from the battery gets into your
eyes, do not rub your eyes and wash them well
with fresh clean water such as tap water and
contact a doctor immediately.
If left untreated, the liquid may cause eye-problems.
STANDARD ACCESSORIES
1 Side handle . . . . . . . . . . . . . . . 1
DH14DSL
2 Depth gauge . . . . . . . . . . . . . . 1
(2LSCK)
3 Charger . . . . . . . . . . . . . . . . . . 1
DH18DSL
4 Plastic case . . . . . . . . . . . . . . . 1
(2LSCK)
5 Battery . . . . . . . . . . . . . . . . . . . 2
6 Battery cover . . . . . . . . . . . . . . 1
DH14DSL (NN) Without charger, plastic case,
DH18DSL (NN) battery and battery cover
Model DH14DSL DH18DSL
No-load speed Save/Power 0 – 750 min
–1
/ 0 – 1500 min
–1
Full-load impact rate Save/Power 0 – 3100 min
–1
/ 0 – 6200 min
–1
Concrete 16 mm
Capacity Drilling Steel 13 mm
Wood 18 mm
Rechargeable battery
BSL1430: Li-ion 14.4 V BSL1830: Li-ion 18 V
(3.0 Ah, 8 cells) (3.0 Ah, 10 cells)
Weight 2.1 kg 2.2 kg
2. If liquid leaks onto your skin or clothes, wash well
with clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using
the battery for the first time, do not use and return
it to your supplier or vendor.
WARNING
If an electrically conductive foreign object enters the
terminals of the lithium ion battery, a short-circuit may
occur resulting in the risk of fire. Please observe the
following matters when storing the battery.
䡬 Do not place electrically conductive cuttings, nails,
steel wire, copper wire or other wire in the storage
case.
䡬 Either install the battery in the power tool or store
by securely pressing into the battery cover until
the ventilation holes are concealed to prevent short-
circuits. (See Fig. 1)
Standard accessories are subject to change without notice.
CHARGER
Model UC18YRSL
Charging voltage 14.4 V 18 V
Weight 0.6 kg
OPTIONAL ACCESSORIES (sold separately)
1. Battery
(1) BSL1430: DH14DSL
(2) BSL1830: DH18DSL
It may be convenient to prepare some extra batteries.
01Eng_DH14DSL_EE 08/3/20, 21:1710
