(2) Regarding the temperatures of the rechargeable

battery

The temperatures for rechargeable batteries are as

shown in Table 2, and batteries that have become

hot should be cooled for a while before being

recharged.

Table 2 Recharging ranges of batteries

(3) Regarding recharging time

Depending on the combination of the charger and

batteries, the charging time will become as shown

in Table 3.

Table 3 Charging time (At 20°C)

NOTE:

The charging time may vary according to

temperature and power source voltage.

4. Disconnect the charger’s power cord from the

receptacle.

5. Hold the charger firmly and pull out the battery.

NOTE:

After operation, pull out batteries from the charger

first, and then keep the batteries properly.

How to make the batteries perform longer

(1) Recharge the batteries before they become

completely exhausted.

When you feel that the power of the tool becomes

weaker, stop using the tool and recharge its battery.

If you continue to use the tool and exhaust the

electric current, the battery may be damaged and

its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after

use. If such a battery is recharged immediately after

use, its internal chemical substance will deteriorate,

and the battery life will be shortened. Leave the

battery and recharge it after it has cooled for a

while.

CAUTION

䡬 When the battery charger has been continuosly

used, the battery charger will be heated, thus

constituting the cause of the failures. Once the

charging has been completed, give 15 minutes rest

until the next charging.

䡬 If the battery is recharged when it is warm due to

battery use or exposure to sunlight, the pilot lamp

map light in green.

The battery will not be recharged. In such a case,

let the battery cool before charging.

䡬 When the pilot lamp flickers in red (at 0.2-second

intervals), check for and take out any foreign objects

in the charger’s battery installation hole. If there are

no foreign objects, it is probable that the battery

or charger is malfunctioning. Take it to your

authorized Service Center.

PRIOR TO OPERATION

1. Mounting the drill bit (Fig. 5, 6)

CAUTION

To prevent accidents, make sure to turn the switch

off.

NOTE:

When using tools such as drill bits, etc., make sure

to use the genuine parts designated by our company.

(1) Clean the shank portion of the drill bit.

(2) Insert the drill bit in a twisting manner into the tool

holder until it latches itself. (Fig. 5)

The grip need not be adjusted during bit installation.

(3) Check the latching by pulling on the drill bit.

(4) To remove the drill bit, fully pull the grip in the

direction of the arrow and pull out the drill bit.

2. Confirm that the battery is mounted correctly.

3. Installation of dust cup or dust collector (B) (Optional

accessories) (Fig. 7, Fig. 8)

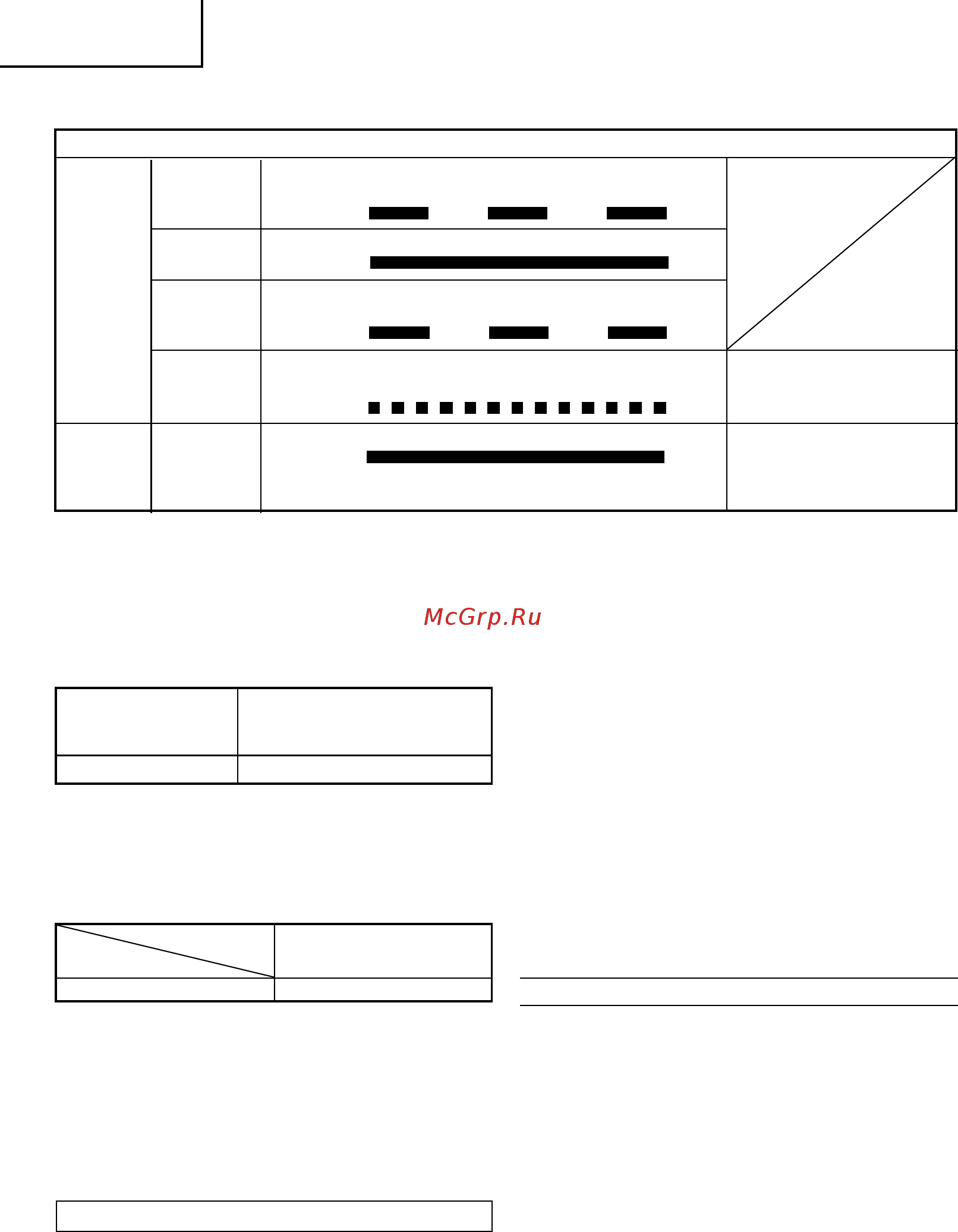

Table 1

Indications of the pilot lamp

Lights for 0.5 seconds. Does not light for 0.5

seconds. (off for 0.5 seconds)

Lights continuously

Lights for 0.5 seconds. Does not light for 0.5

seconds. (off for 0.5 seconds)

Lights for 0.1 seconds. Does not light for 0.1

seconds. (off for 0.1 seconds)

Lights continuously

Before

charging

While

charging

Charging

complete

Charging

impossible

Blinks

Lights

Blinks

Flickers

Lights

Malfunction in the

battery or the charger

Battery overheated.

Unable to charge

(Charging will commence

when battery cools).

Overheat

Standby

The

pilot

lamp

lights or

blinks in

red.

The

pilot lamp

lights in

green.

Temperatures at

Rechargeable batteries

which the battery

can be recharged

BSL1430, BSL1830

0°C – 40°C

Charger

UC18YRSL

Battery

BSL1430, BSL1830 Approx. 45 min.

01Eng_DH14DSL_EE 08/3/20, 21:1713
