D. Steam button /menu up button

When the message READY TO BREW appears on the display press the button. The control lamp will light indicat-

ing that the coffee maker is warming up. The message COFFEE STEAM will appear on the display. The coffee

maker will warm up to the set temperature and will switch to the steam mode. The message READY TO USE STEAM

will appear on the display. If you press this button again, the control lamp will go off and the message STEAM

COFFEE will appear on the display indicating that after a ﬁ xed period of time the coffee maker will return to the coffee

brewing mode. The message READY TO BREW will appear on the display.

This button is also used to rewind the menu up in the programming mode, that is after pressing the MENU (OK) button.

WARNING! The steam/ hot water nozzle (16) and the water are very hot. Be careful not to burn yourself. Always

use a cloth to handle the steam/hot water nozzle (16). Never block the steam/ hot water nozzle (16) inlet.

E. MENU button (OK)

When the message READY TO BREW appears on the display press the MENU (OK) button once. The coffee maker

will start to operate in the programming mode. The button will light after pressing it. The display will show the menu

with the following messages: ECONOMY MODE, LANGUAGE, TEMPERATURE, PREBREWING, BREWING TIME,

WATER HARDN., DESCALING, NO. OF CUPS, CLOCK, DEFAULT.

To save the changes press the MENU (OK) button.

F. Bean coffee/ground coffee/menu down button / .

When the message READY TO BREW appears on the display press the button. The message COFFEEPOWDER

will appear on the display under the message READY TO BREW. It means that the coffee maker is ready to brew

ground coffee. Press the button the message COFFEEPOWDER will disappear. It means that the coffee maker

is ready to brew bean coffee. This button is also used to rewind the menu down in the programming mode, that is after

pressing the MENU (OK) button.

ATTENTION! The function with the use of ground coffee enables to prepare only one cup of coffee (small, medi-

um or large). Never add more than ONE measuring spoon of ground coffee to the ground coffee container (9a).

NOTE!

It is possible to immediately stop the coffee brewing process. In order to do so, use the buttons (A) , (B) or

coffee, it is possible to stop the brewing process only after the coffee grinding process is complete.

4. Brewing head unit description (14)

The brewing head unit (14) (ﬁ g. 3) consists of the lower (14f) and upper (14e) casing, the brewing chamber (14d), the

screw lever (14c), the coffee delivering pipe (14b) and the D-shaped handle (14a). The main elements of the head are: the

upper (14f) and lower casing (14e), the screw lever (14c) is connected with the motor enabling to control the brewing head

unit (14) in order to brew espresso.

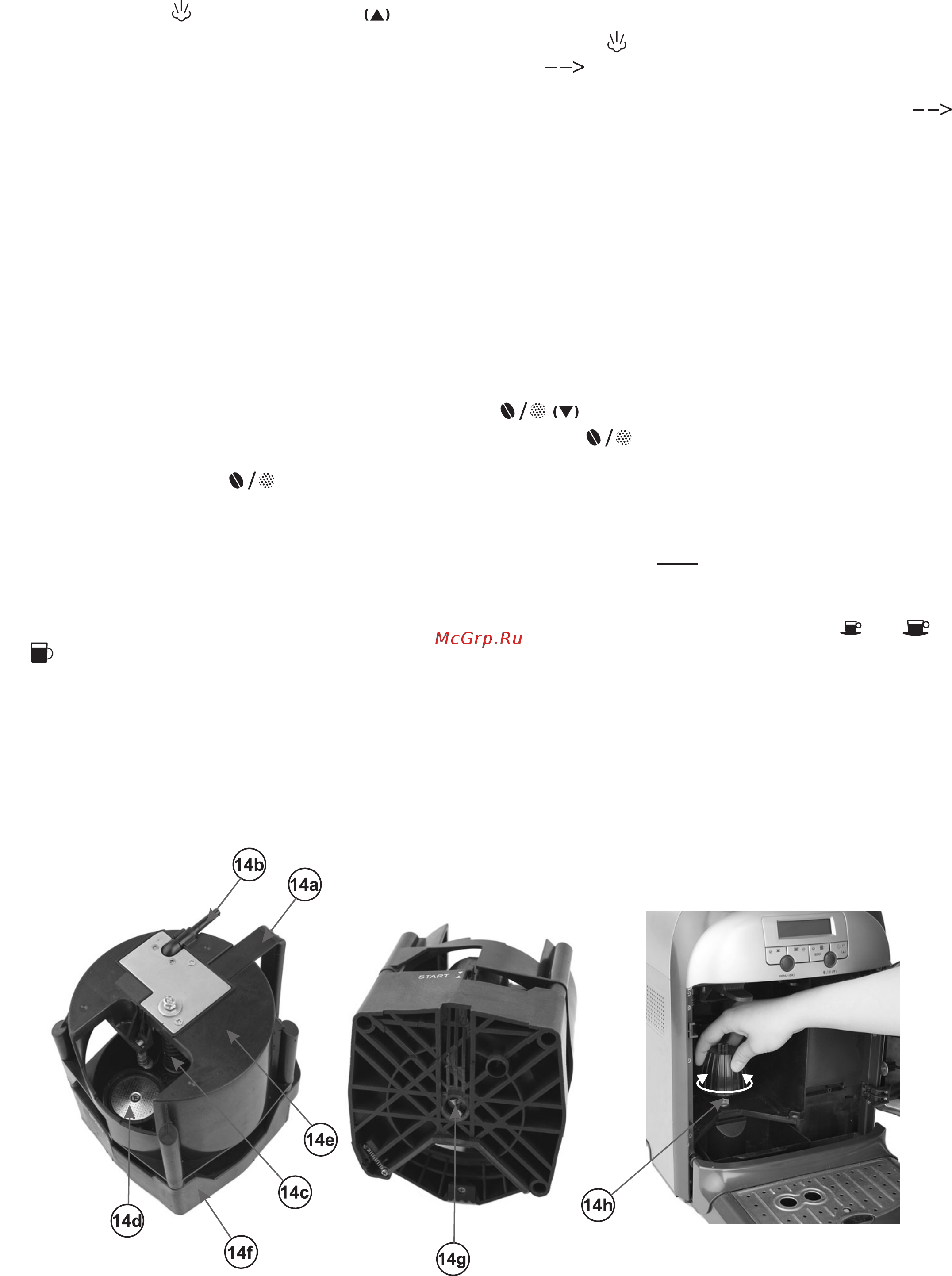

Fig. 3
