Page 39

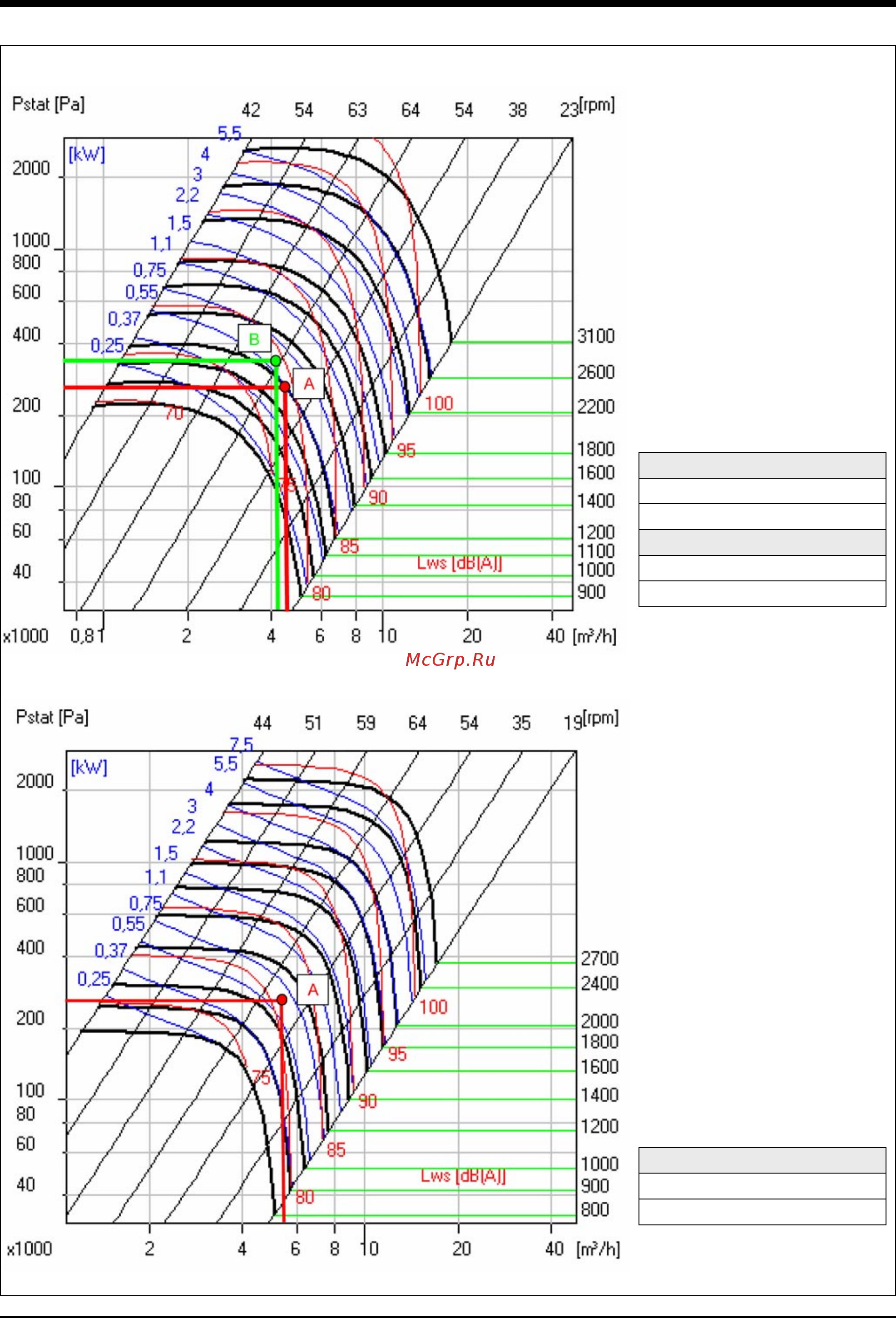

Outdoor Fan Curves
RT4D 20 and 40
RT4D 60
Size 20
1 x D.450 plugfan
Working point : 4600 m
3
/h / Pt = 260 Pa (point A)
Size 40
2 x D.450 plugfan
Working point : 4300 m
3
/h / Pt = 360 Pa (point B)
Size 60
2 x D.500 plugfan
Working point : 5600 m
3
/h / Pt = 270 Pa (point A)
