Page 46

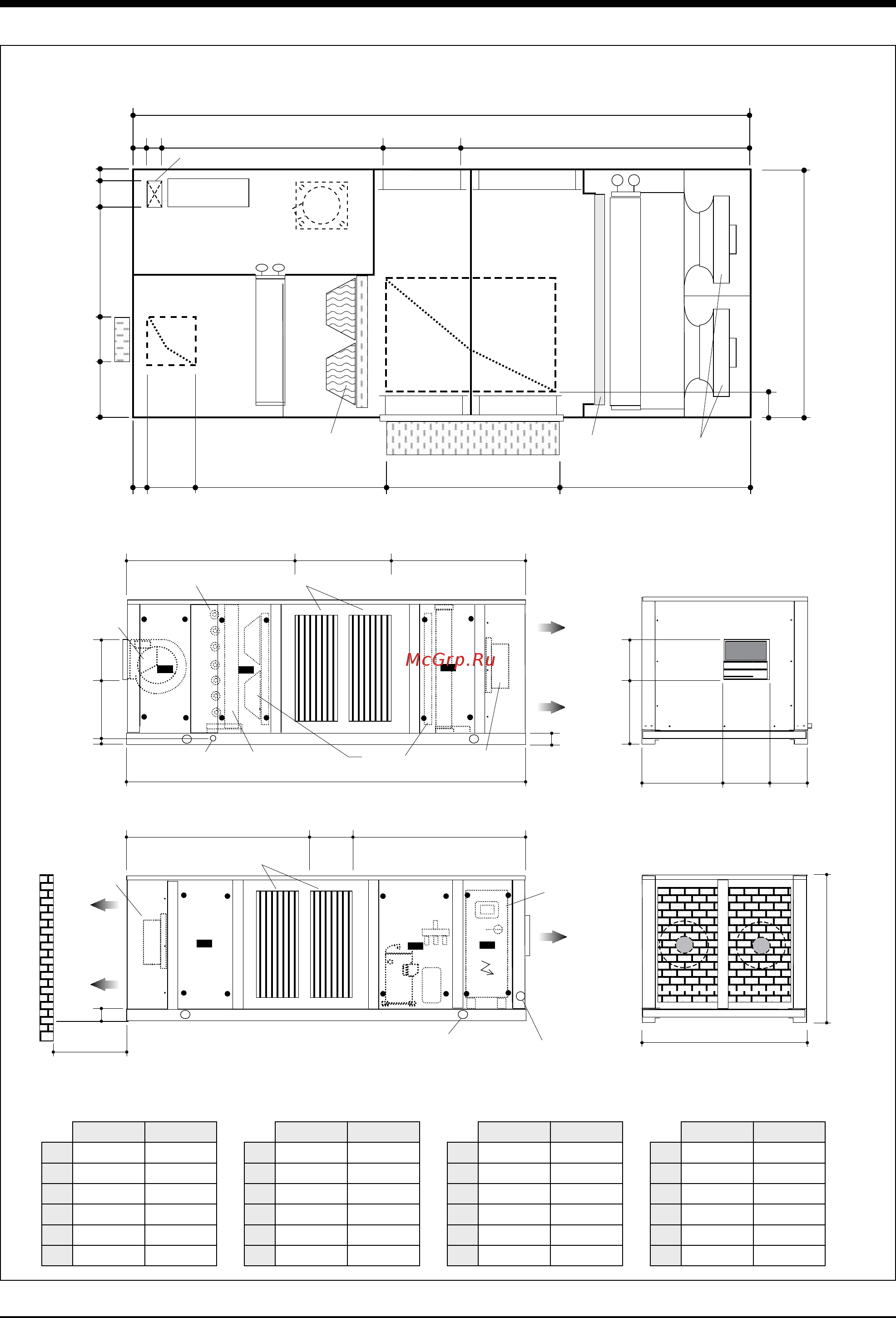

Dimensions - RT4D 60 & 80
RT4D 60 RT4D 80
A 3940 3940
A1 80 80
A2 100 100
A3 1380 1380
A4 500 500
A5 1880 1880
RT4D 60 RT4D 80
C1 80 80
C2 405 480
C3 1215 1140
C4 1080 1080
C5 1160 1160
D 120 120
A
A4A3
A2A1
A5
C3C2C1
B2
B1
B3
B4
B5
C4 C5
D
B
Outdoor coil
Indoor coil
Supply air
QE
Return air
Return air Filter Exhaust air
blowers
Main filter
Outdoor airElectrical inlet (floor) Outdoor air
Electrical and compressor cabinet
C1+C2+C3
A5 A4 A1+A2+A3
Hole Ø45 mm
lifting point
Compressor
cabinet
VH4
Exhaust
plug-fans
Outdoor air
Exhaust air
Exhaust air
Supply air
Electrical supply
(sideway)
Electrical board
Drain connection
Supply
air blower
Indoor coil Air filter Exhaust air blowers
Supply air
QE
C1 SL
C4
H2
H1
60
100
100
2 metres
H2
H1
B3+B4+B5 B2
B
H
B1
A
C5
Return airElectric heater
RT4D 60 RT4D 80
B 1750 1750
B1 405 375
B2 375 430
B3 720 695
B4 200 150
B5 100 100
RT4D 60 RT4D 80
E 950 950
H 1420 1420
H1 660 620
H2 405 480
H3 1100 1100
H4 160 160
