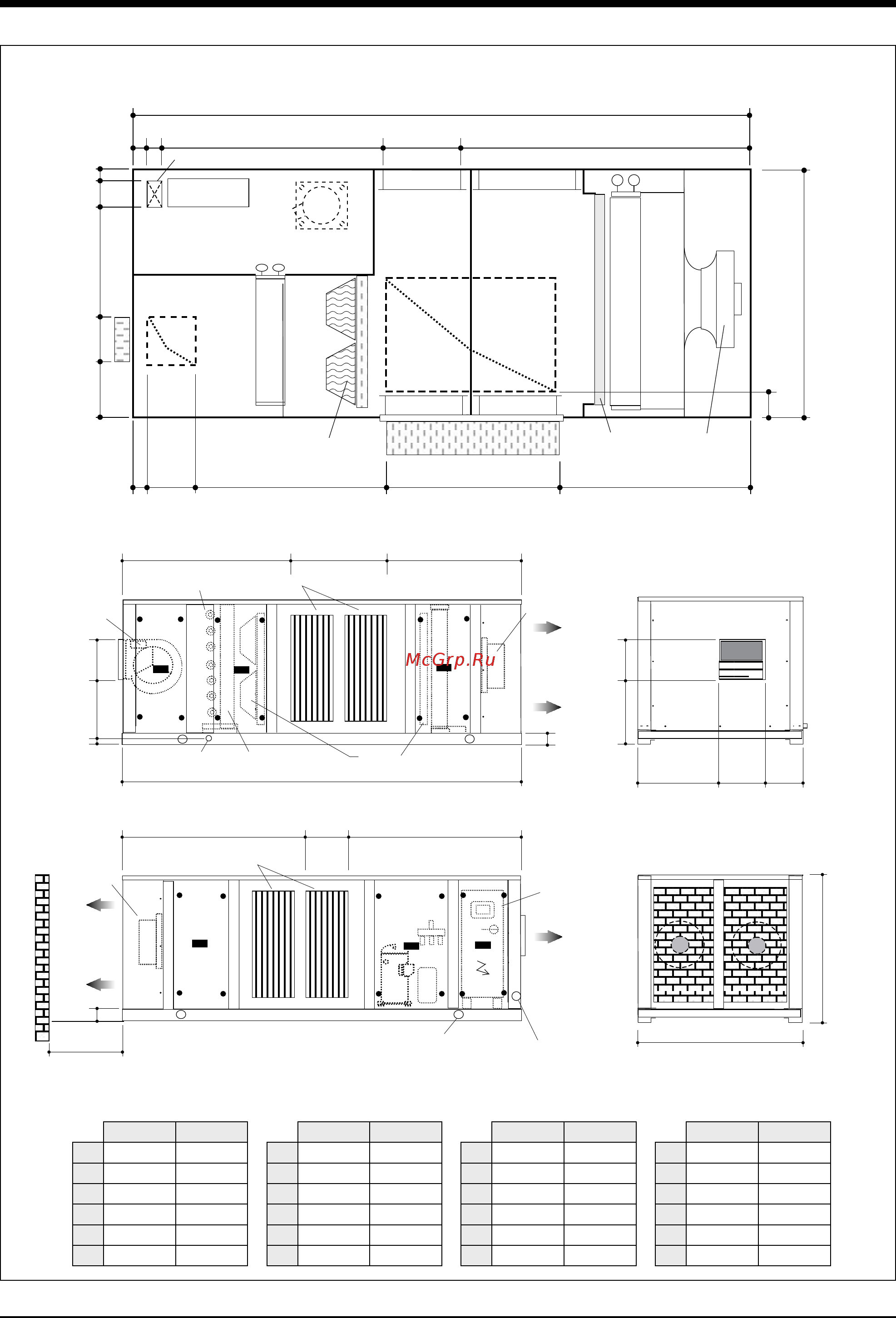

Dimensions (mm) - RT4D 20 & 40
RT4D 20 RT4D 40
A 3200 3200
A1 80 80
A2 100 100
A3 1120 1120
A4 400 400
A5 1500 1500
RT4D 20 RT4D 40
E 600 600
H 1150 1150
H1 490 450
H2 265 345
H3 900 900
H4 130 130
A
A4A3
A2A1
A5
C3C2C1
B2
B1
B3
B4
B5
C4 C5
D
B
Outdoor coil
Indoor coil
Supply air
QE
Return air
Return air Filter
Exhaust air blower
Main filter
Outdoor air Outdoor air
Electrical and compressor cabinet
Electrical inlet (floor)
C1+C2+C3
A5 A4 A1+A2+A3
Hole Ø45 mm
lifting point
Compressor
cabinet
VH4
Exhaust
plug-fans
Outdoor air
Exhaust air
Exhaust air
Electrical supply
(sideway)
Electrical board
Drain connection Indoor coil Air filter
Exhaust air blower
Supply air
Supply air
QE
C1 SL
C4
H2
H1
60
100
100
2 metres
H2
H1
B3+B4+B5 B2
B
H
B1
A
C5
Return airElectric heater
Supply air
blower
RT4D 20 RT4D 40
B 1280 1280
B1 280 245
B2 240 310
B3 510 475
B4 150 150
B5 100 100
RT4D 20 RT4D 40
C1 80 80
C2 265 345
C3 955 875
C4 1100 980
C5 1540 920
D 120 120
