TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

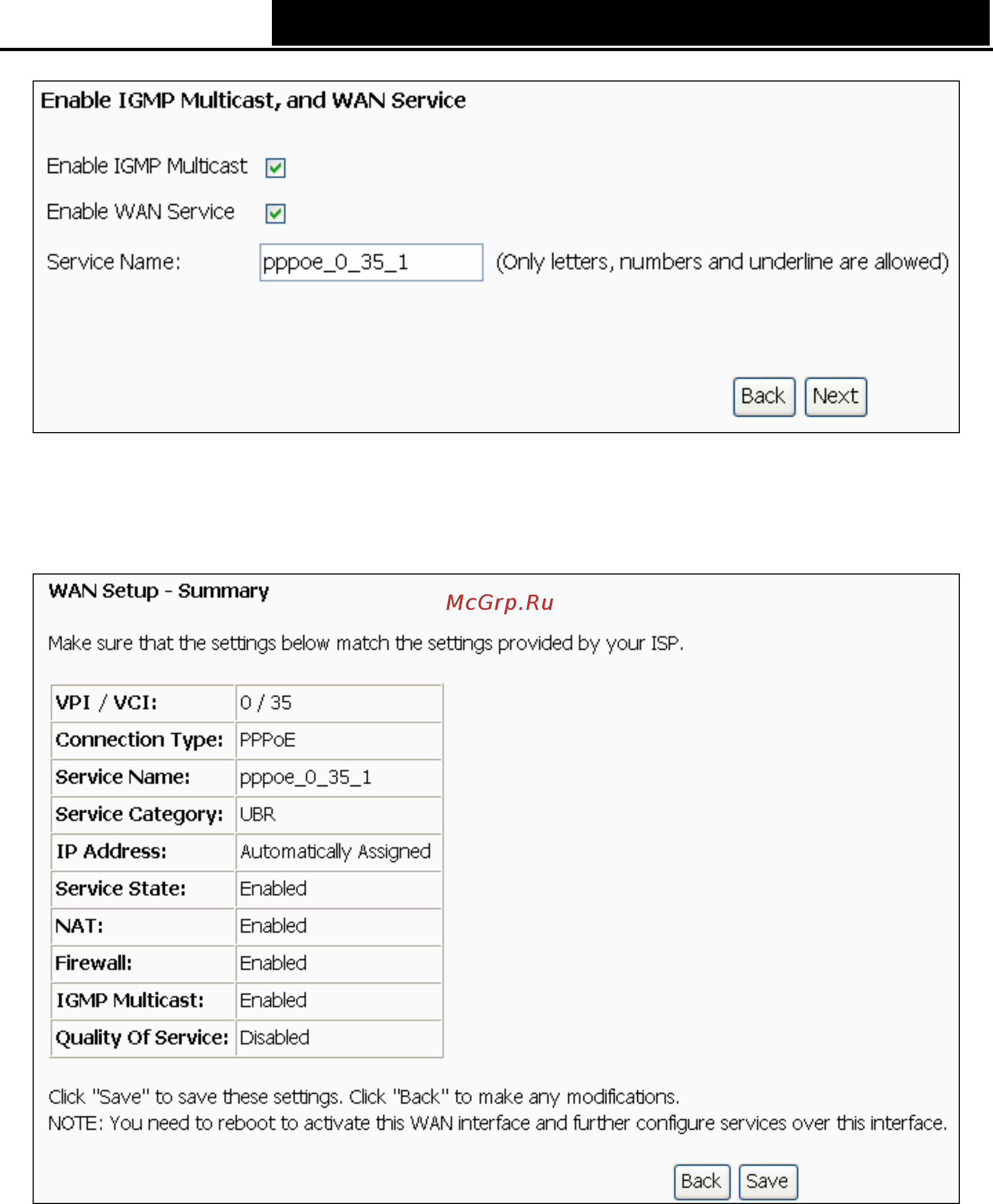

Figure 4-15

Click the Next button to enter the next step as shown in Figure 4-16. Click Save to complete the

configuration.

Figure 4-16

¾ MAC Encapsulation Routing (MER)

If you select the protocol of MAC Encapsulation Routing (MER), you will see the page as shown in

Figure 4-17.
