TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

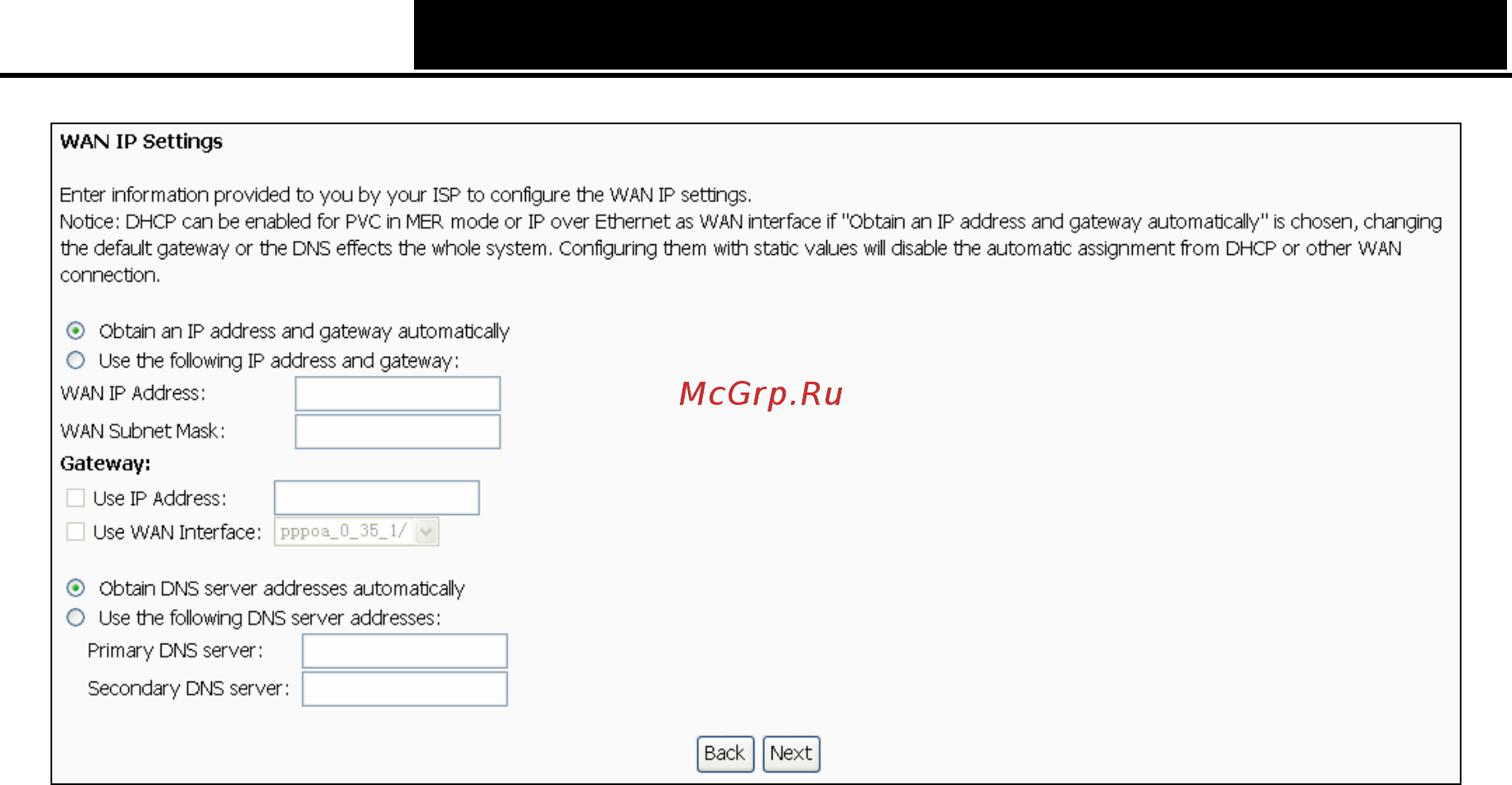

Figure 4-17

 Obtain an IP address automatically: This radio button is checked by default. You can obtain

the IP address automatically.

 Use the following IP address and gateway: Check this radio button to enter the information

provided by your ISP to configure the WAN IP settings.

 Obtain DNS server addresses automatically: This radio button is checked by default. It’s

recommended that you keep the default settings to allow the Router to obtain the default DNS

server addresses automatically.

 Use the following DNS server addresses: Check this radio button then you can enter the

primary DNS server and secondary DNS server. This is not recommended by default.

)

Note:

1) DHCP can be enabled for PVC in MER mode as WAN interface if "Obtain an IP address

automatically" is chosen.

2) Changing the default gateway or the DNS will affect the whole system. Configuring them with

static values will disable the automatic assignment from DHCP or other WAN connection.

3) If you configure static default gateway over this PVC in MER mode, you must enter the IP

address of the remote gateway in the "Use IP address". The "Use WAN interface" is optional.

Click Next button in Figure 4-17, and then you will see the Figure 4-18. Check or uncheck the

Enable WAN Service box according to your needs.
