TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

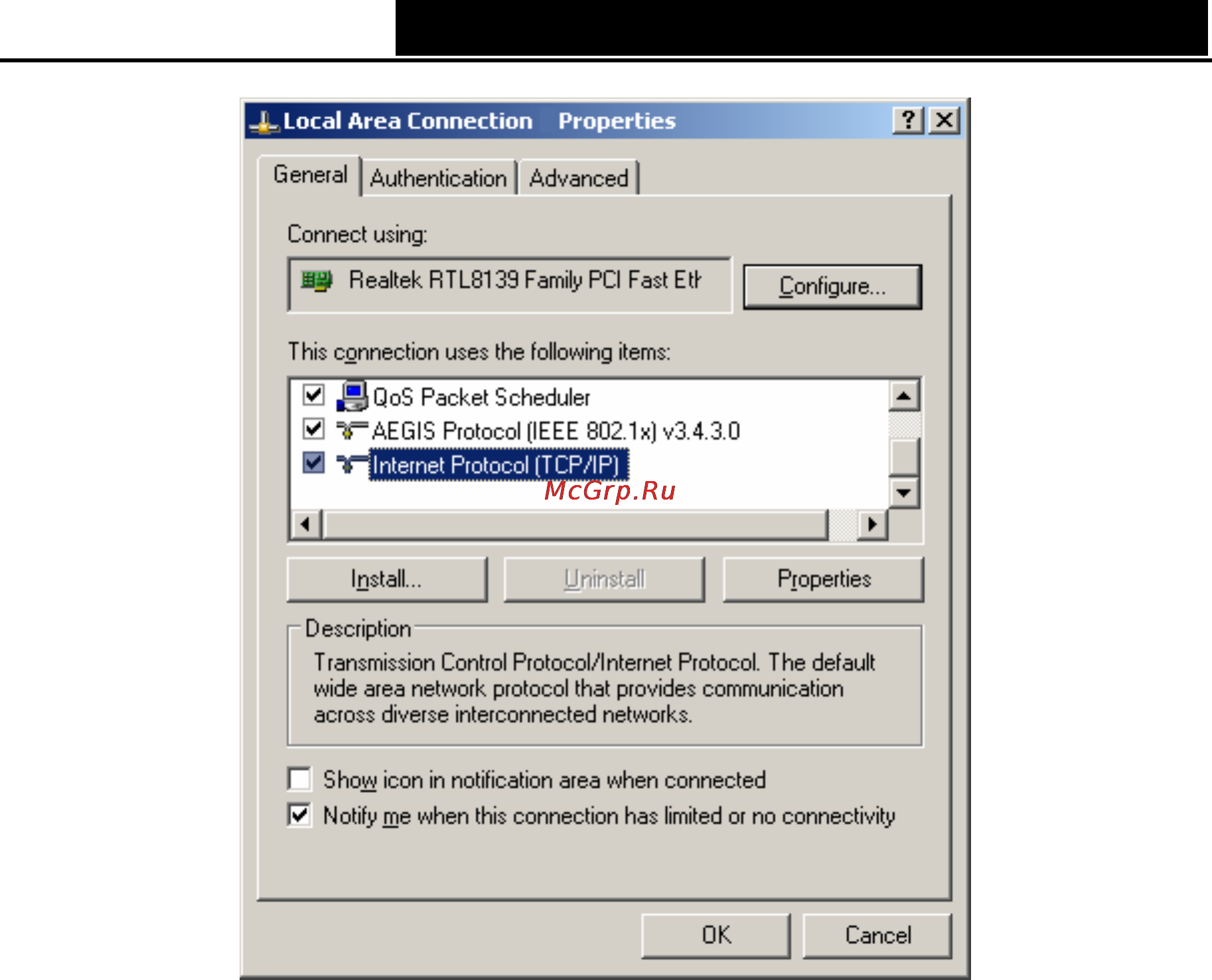

5) The following TCP/IP Properties window will display and the IP Address tab is open on

this window by default.

Now you have two ways to configure the TCP/IP protocol below:

¾ Setting IP address automatically

Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as

shown in the Figure below:
