TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

4.7 Management

Choose “Management”, there are eight submenus under the main menu. They are Settings,

System Log, SNMP Agent, TR-069 Client, Access Control, Update Software and Reboot.

Click any of them, and you will be able to configure the corresponding function.

4.7.1 Settings

This section provides three important functions for managing the Router; they are Backup,

Update and Restore Default (shown in Figure 4-94). The detailed manipulations are described

below.

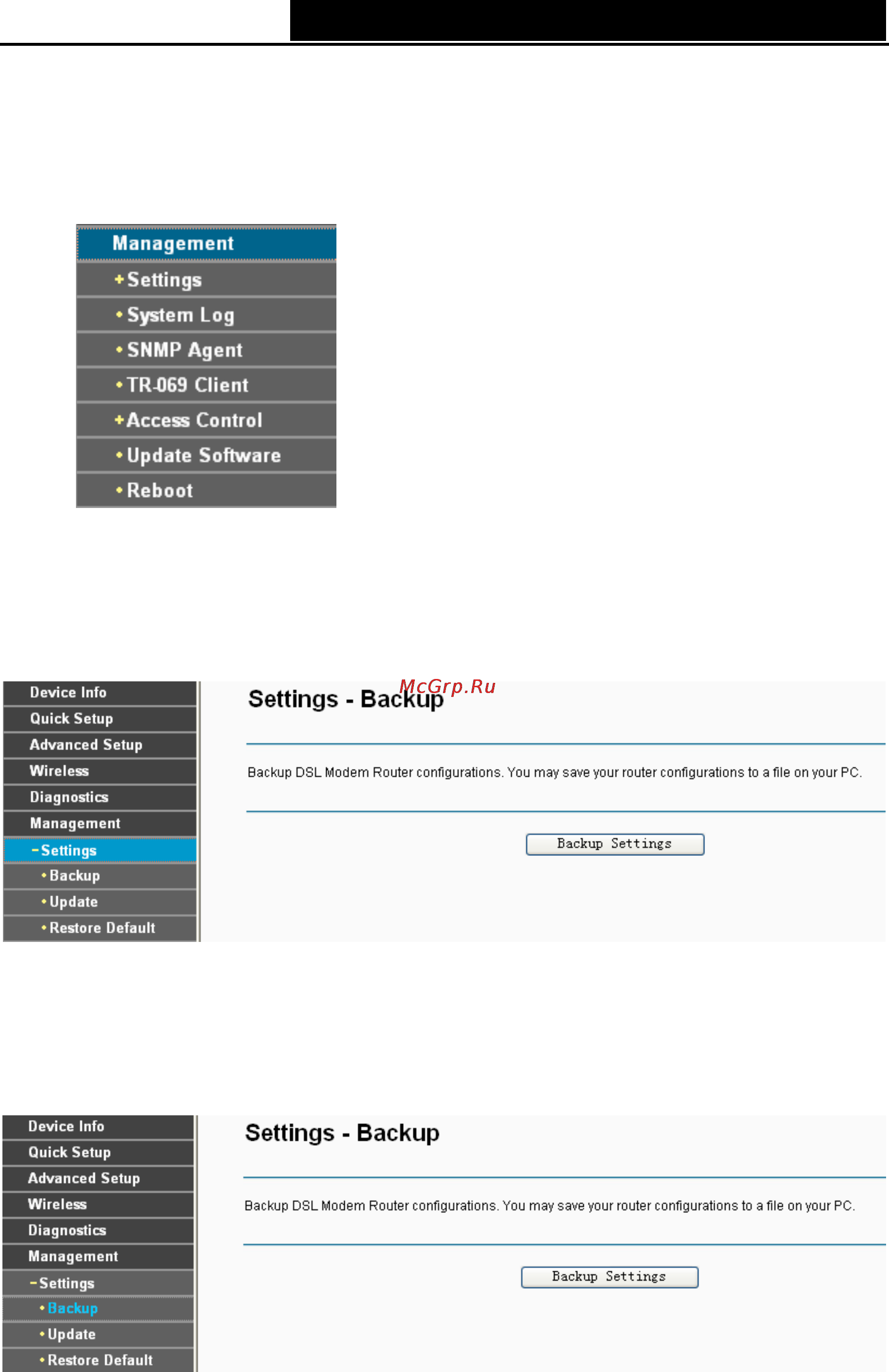

Figure 4-94

4.7.1.1 Backup

Choose “Management”Æ“Settings”Æ“Backup”, you can see the Backup screen, this screen

(shown in Figure 4-95) allows you to save the current configuration of the Router as a backup file.

Figure 4-95
