TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

)

Note:

Click the other submenus under the main menu Device Info, and you will be able to view the

corresponding information about WAN, Statistics, Route, ARP and DHCP.

4.3 Quick Setup

Please refer to Section 3.2 Quick Installation Guide.

4.4 Advanced Setup

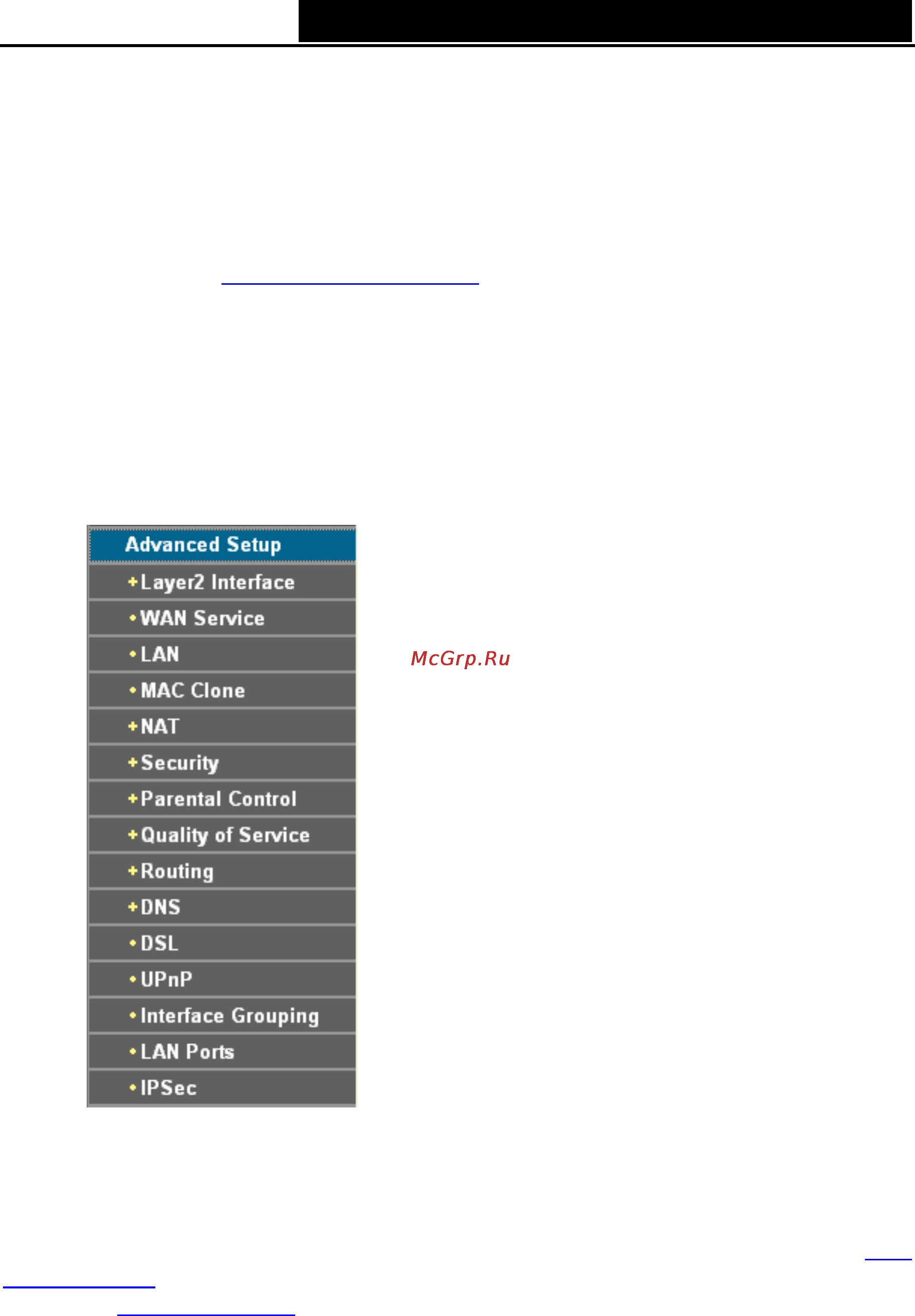

Choose “Advanced Setup”, there are many submenus under the main menu. Among the

submenus, Layer2 Interface, WAN Service, LAN etc. are default menus, while NAT, IP/MAC

filtering of the Security, Quality of Service and DNS will appear only when you select some

corresponding functions. Click any one of them, and you will be able to configure the

corresponding function.

This Advanced Setup section mainly introduces how to configure the Router for adequate use.

The detailed explanations for each subsection are provided below.

)

Note:

To completely configure the WAN Interface, you need to first select the Layer2 Interface (4.4.1

Layer2 Interface) according to the connection ISP provides you, and then to select the type of the

connection (4.4.2 WAN Service) for the further configuration.

4.4.1 Layer2 Interface

Choose “Advanced Setup”Æ“Layer2 Interface”, and you can select WAN Service Interface

(layer2 interface) over ATM interfaces or ETH interface.
