Tp-Link TD-W8960NB [12/110] The back panel

TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

1.3.2 The Back Panel

The Router's ports, where the cables are connected, and RESET button are located on the back

panel.

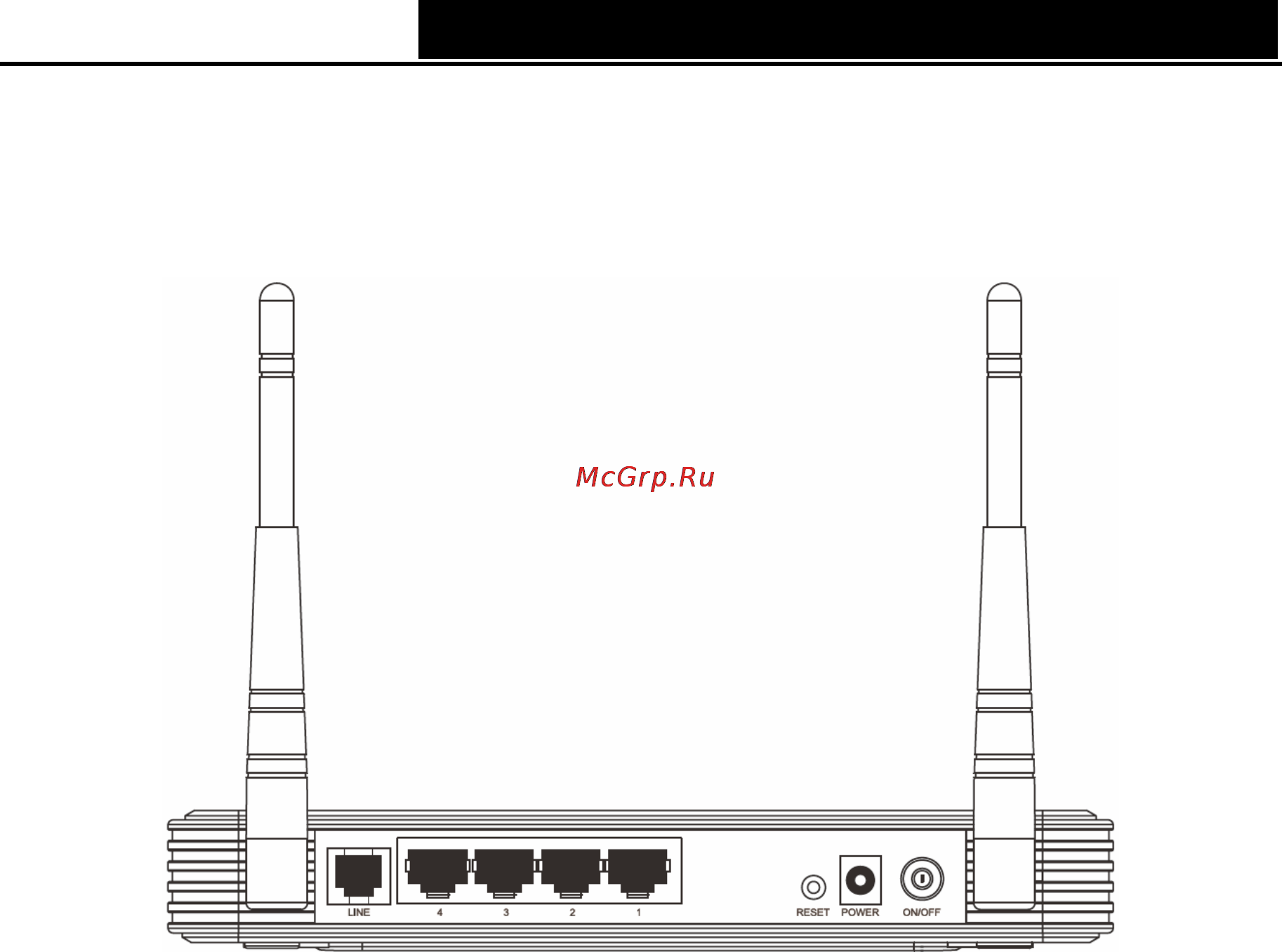

Figure 1-2

¾ LINE: Connect to the Modem Port of Splitter or to the telephone line.

¾ 1, 2, 3, 4 (LAN): The ports (1, 2, 3, 4) connect the Router to the local PC(s).

¾ Reset: There are two ways to reset the Router's factory defaults.

1) Use the Restore Default function on Management -> settings -> Restore Default page in

the router's Web-based Utility.

2) Use the Factory Default RESET button: With the Router powered on, use a pin to press and

hold the RESET button for at least 5 seconds. And the Router will reboot to its factory default

settings.

¾ POWER: The Power plug is where you will connect the power adapter.

¾ ON/OFF: The switch for the power.

¾ Wireless Antennas: To receive and transmit the wireless data.
