TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

4.4.9.1 Default Gateway

Choose “Advanced Setup”Æ“Routing”Æ“Default Gateway”, you can see the Default Gateway

screen. Deselect the checkbox before Auto Gateway, and then you will be able to select a WAN

Interface from the drop-down list as the system default gateway. The Auto Gateway checkbox is

selected by default.

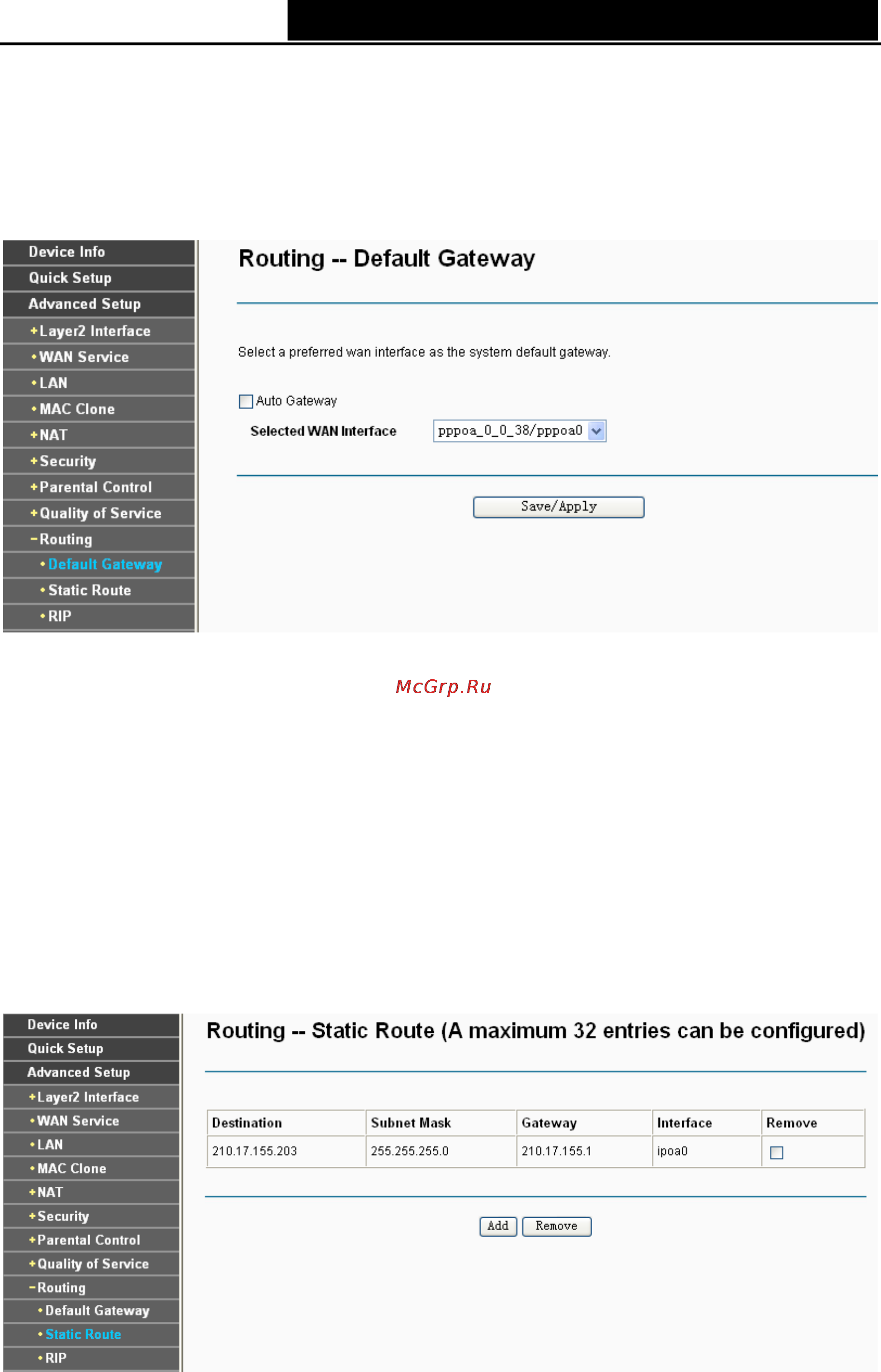

Figure 4-48

)

Note:

1) If changing the Automatic Assigned Default Gateway from unselected to selected, you have

to reboot the Router to get the automatically assigned default gateway.

2) Default Gateway IP address should be specified since MER Interface is selected when you

select the Enable automatic Assigned Default Gateway check box.

4.4.9.2 Static Route

Choose “Advanced Setup”Æ“Routing”Æ“Static Route”. You can see the Static Route screen,

this screen allows you to configure the static routes (shown in Figure 4-49). A static route is a

pre-determined path that network information must travel to reach a specific host or network.

Figure 4-49
