TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

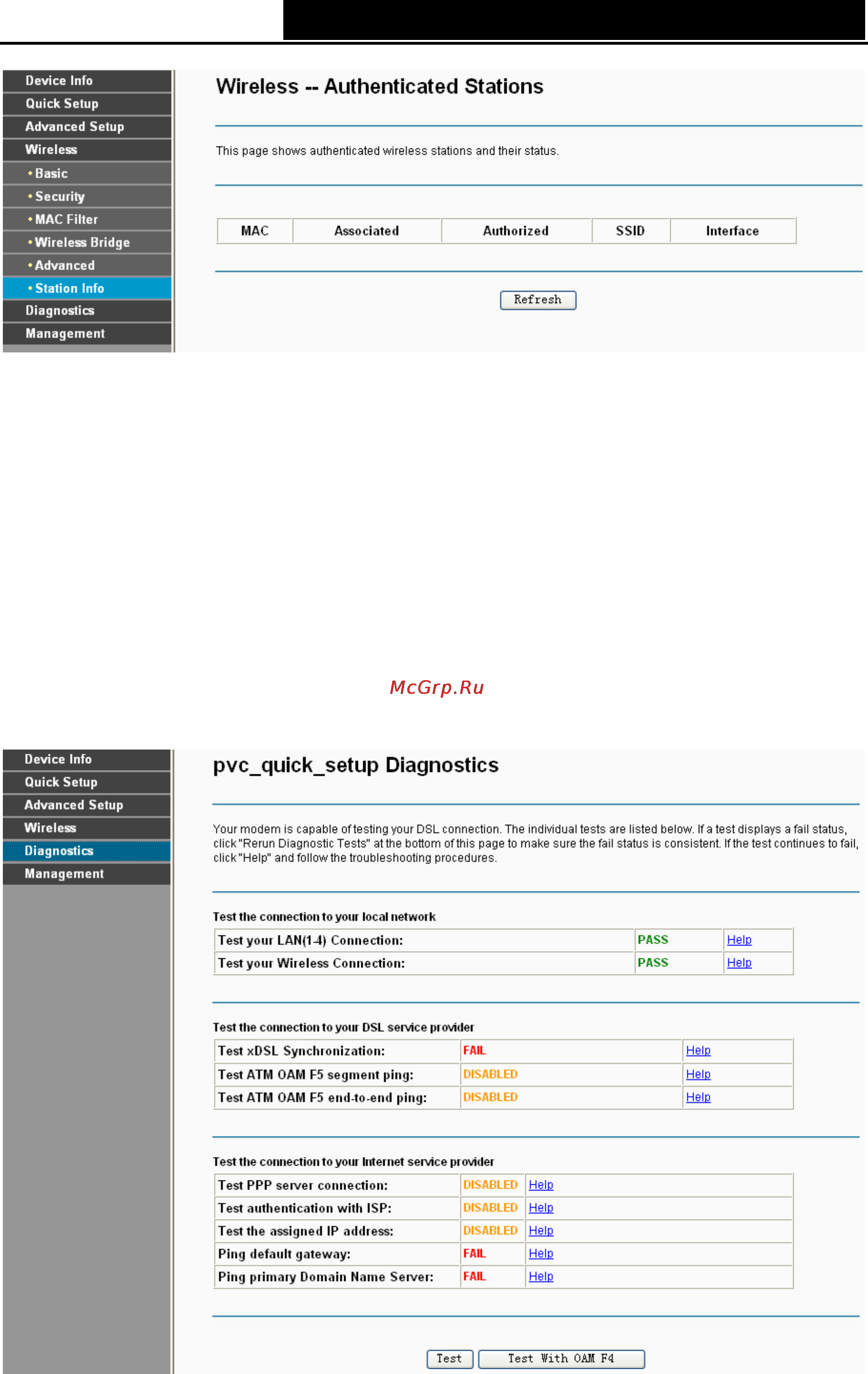

Figure 4-92

This page shows authenticated wireless stations and their status.

¾ MAC: Displays the connected wireless station's MAC address.

¾ Associated: Displays whether the wireless station has associated with the access point.

¾ Authorized: Displays the information of Authentication.

¾ SSID: Displays the connected wireless station's SSID.

¾ Interface: Displays the connected wireless station's Interface mode.

4.6 Diagnostics

Choose “Diagnostics”, you will see the Diagnostics screen. This section describes the result of

the test for the ENET (Ethernet) Connection, Wireless Connection and ADSL Synchronization.

You can refer to the Help menu to get more information about the corresponding test.

Figure 4-93
