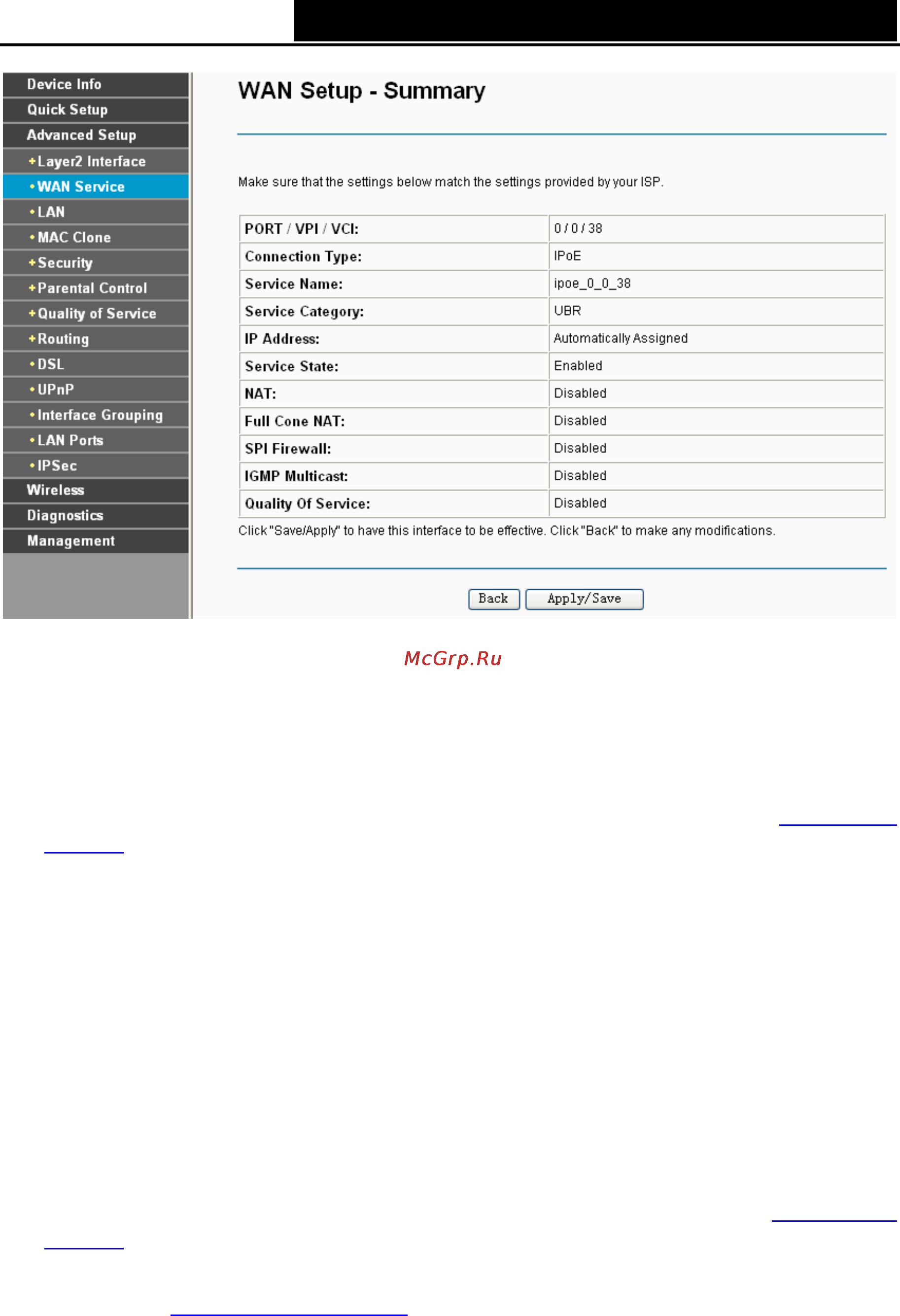

Figure 4-19

4.4.2.3 ATM-EoA-Bridging

If you want to adopt the Bridge service and you need to use an ATM Interface, follow the steps

below to add a WAN service over a selected ATM interface:

1. Add a new ATM interface and select EoA option for DSL Link Type (see 4.4.1.1

ATM

interface).

2. Click the Add button on the screen Figure 4-7. Select WAN Service Interface over ATM PVC

on the next screen (as shown Figure 4-8).

3. Select Bridging option for the WAN service type on the screen (as shown Figure 4-9), and

click Next button to continue.

4. On the screen (as shown Figure 4-13) you will see the detailed settings you’ve made. Please

click the Apply/Save button to save these settings.

4.4.2.4 ATM-PPPoA

If your ISP provides a PPPoA connection and you need to use an ATM Interface, follow the steps

below to add a WAN service over a selected ATM interface:

1. Add a new ATM interface and select PPPoA option for DSL Link Type (see

4.4.1.1 ATM

interface).

2. Click the Add button on the screen Figure 4-7 and the next configuration is similar to PPPoE,

(see section 4.4.2.1

ATM-EoA-PPPoE). The difference is that you don’t need to set the

PPPoE Service Name and Bridge PPPoE Frames Between WAN and Local Ports on the

screen of Figure 4-10.
