TD-W8960NB 300Mbps Wireless N ADSL2+ Modem Router User Guide

Figure 4-24

4.4.5.1 Virtual Servers

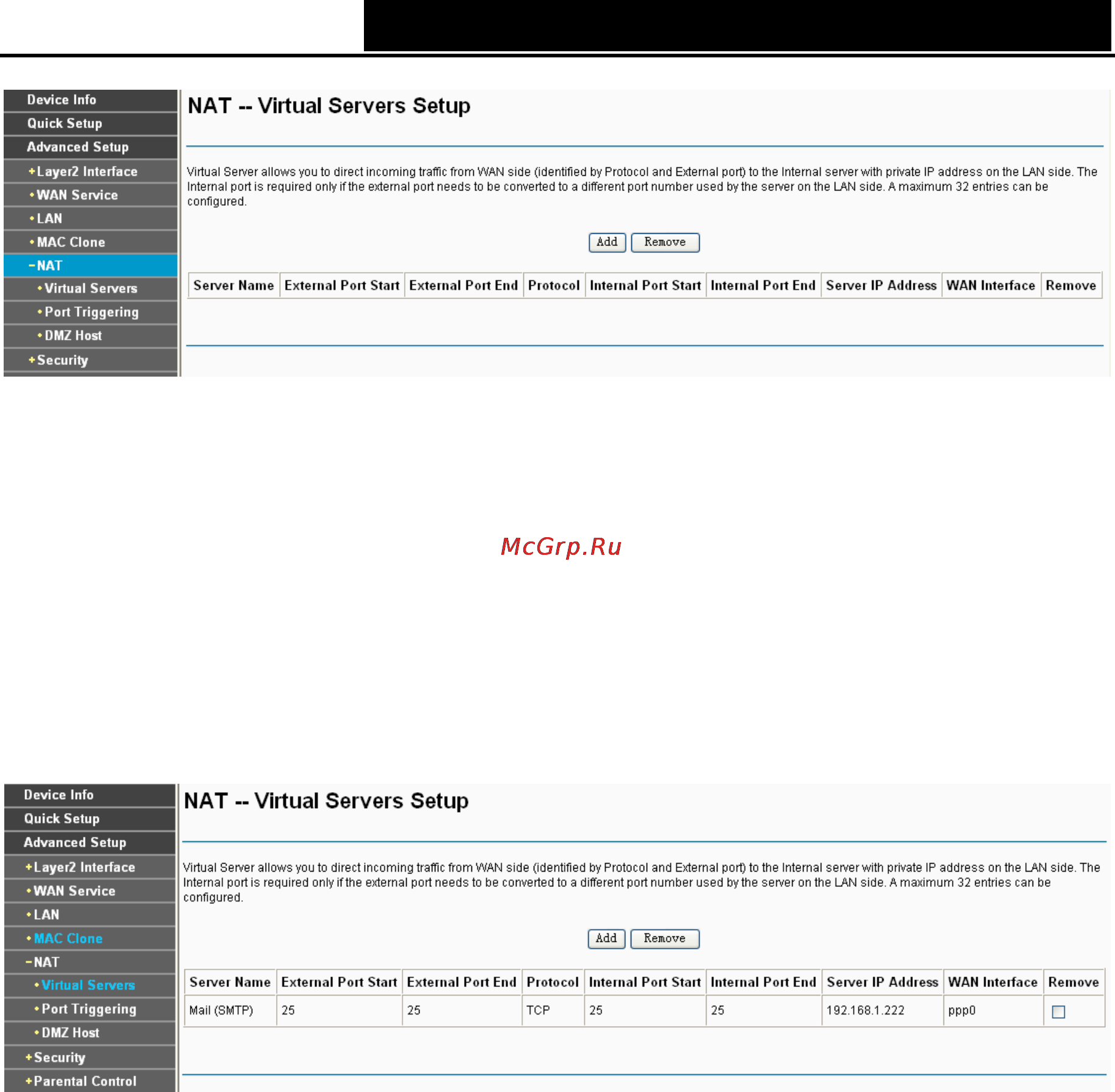

Choose “Advanced Setup”Æ“NAT”Æ“Virtual Servers”, you can set up virtual servers on the

screen below (shown in Figure 4-25).

Virtual servers can be used for setting up public services on your LAN, such as DNS, Email and

FTP. A virtual server is defined as a service port, and all requests from the Internet to this service

port will be redirected to the computer specified by the server IP. Any PC that was used for a

virtual server must have a static or reserved IP Address because its IP Address may change when

using the DHCP function.

Figure 4-25

¾ Virtual Server Table: The table indicates the information about the Virtual Server entries.

• Server Name: This is the name of the Virtual Server. It is exclusive and must be filled in.

• External Port Start: The base number of External Ports. You can type a service port or

leave it blank.

• External Port End: The end number of External Ports. You can type a service port or

leave it blank.

• Protocol: The protocol used for this application, TCP, UDP, or TCP/UDP.

• Internal Port Start: The base number of Internal Ports. You can type a service port or

leave it blank.

• Internal Port End: The end number of Internal Ports. You can type a service port or leave

it blank.

• Server IP Address: The IP Address of the PC providing the service application.

• WAN Interface: The WAN Service Interface providing the service application.

¾ Add: Click the Add button to add a new entry.
