Fluke 725 [72/80] Calibrating low ohms source
![Fluke 726 [72/80] Calibrating low ohms source](/views2/1436093/page72/bg48.png)
724/725/726
Calibration Manual
64
Calibrating Low Ohms Source

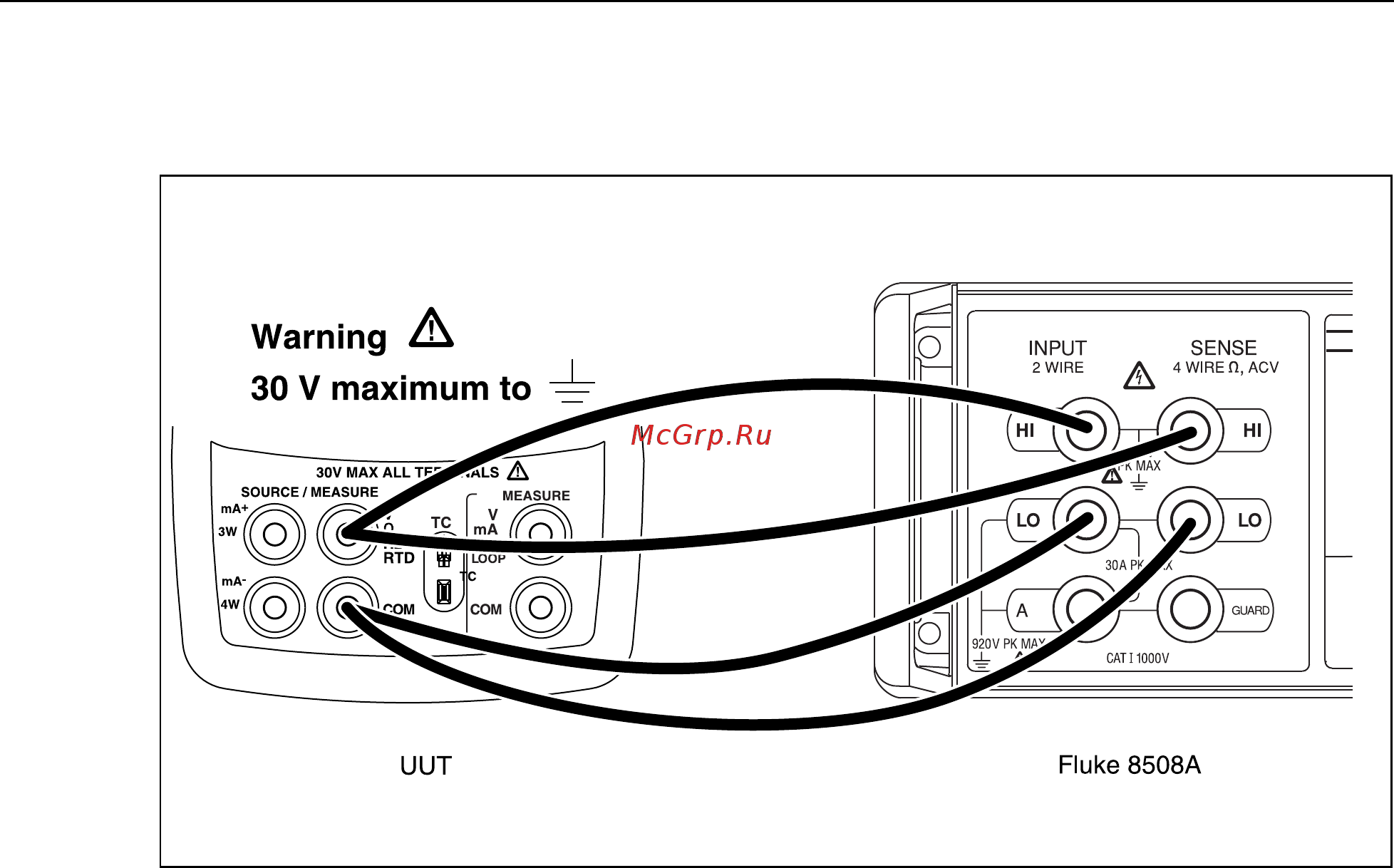

Connect the UUT as shown in Figure 30.
aal13f.eps
Figure 30. Low Ohms Source Calibration Connections
After making the proper connections, type “7” for 726/725 or “5” for 724, and then press
the Enter key on the PC keyboard. Input directions are displayed at the bottom of the
calibration menu:
Enter Selection:
First Calibration Point. Enter Ohms displayed:
Second Calibration Point. Enter Ohms displayed:
The 8508A should be locked in the 2 kΩ range (1.0 mA excitation). Enter each of the two
calibration points as prompted.
Note
For best accuracy, use 8508A 2 k
Ω
range, 4-wire, LOI Off
