Using the Configuration Menu
Whenever you want to configure your network or the DI-707P, you can access the
Configuration Menu by opening the web-browser and typing in the IP Address of the
DI-707P. The DI-707P default IP Address is shown below:
Open the web browser
Type in the IP Address of
the DI-707P

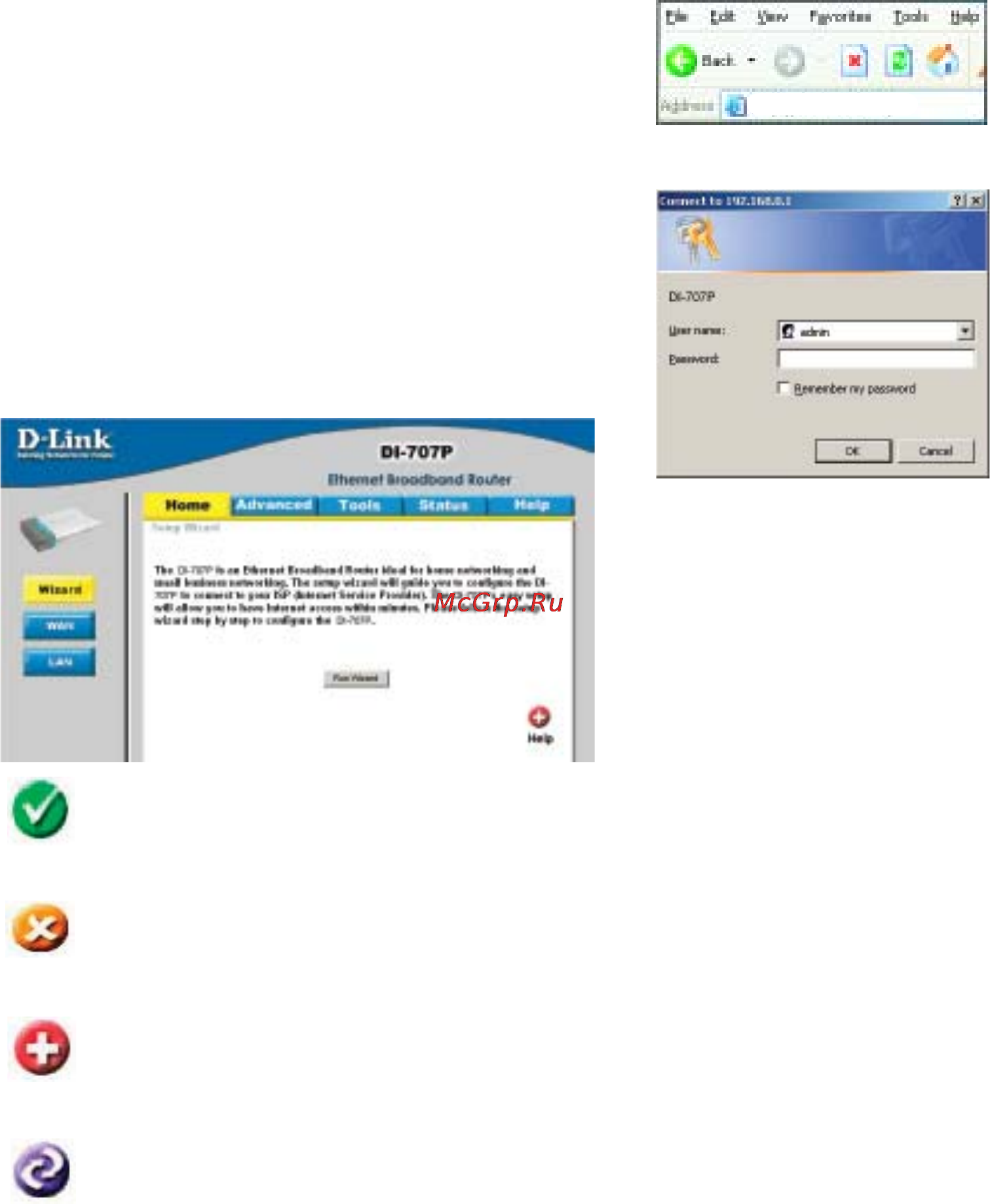

Home > Wizard
The Home>Wizard screen will
appear. Please refer to the
Quick Installation Guide for
more information regarding the
Setup Wizard.
http://192.168.0.1
Note: if you have changed the default IP Address assigned to the DI-707P, make sure to
enter the correct IP Address.
The factory default User name is admin and the default
Password is blank (empty). It is recommended that you
change the admin password for security purposes. Please
refer to Tools>Admin to change the admin password.
Clicking Apply will save changes made to the page
Apply
Clicking Cancel will clear changes made to the page
Clicking Help will bring up helpful information regarding the page
Help
Clicking Restart will restart the router. (Necessary for some changes.)
Cancel
Restart
