D-Link DI-707P [43/74] Networking basics
![D-Link DI-707P [43/74] Networking basics](/views2/1045352/page43/bg2b.png)
43

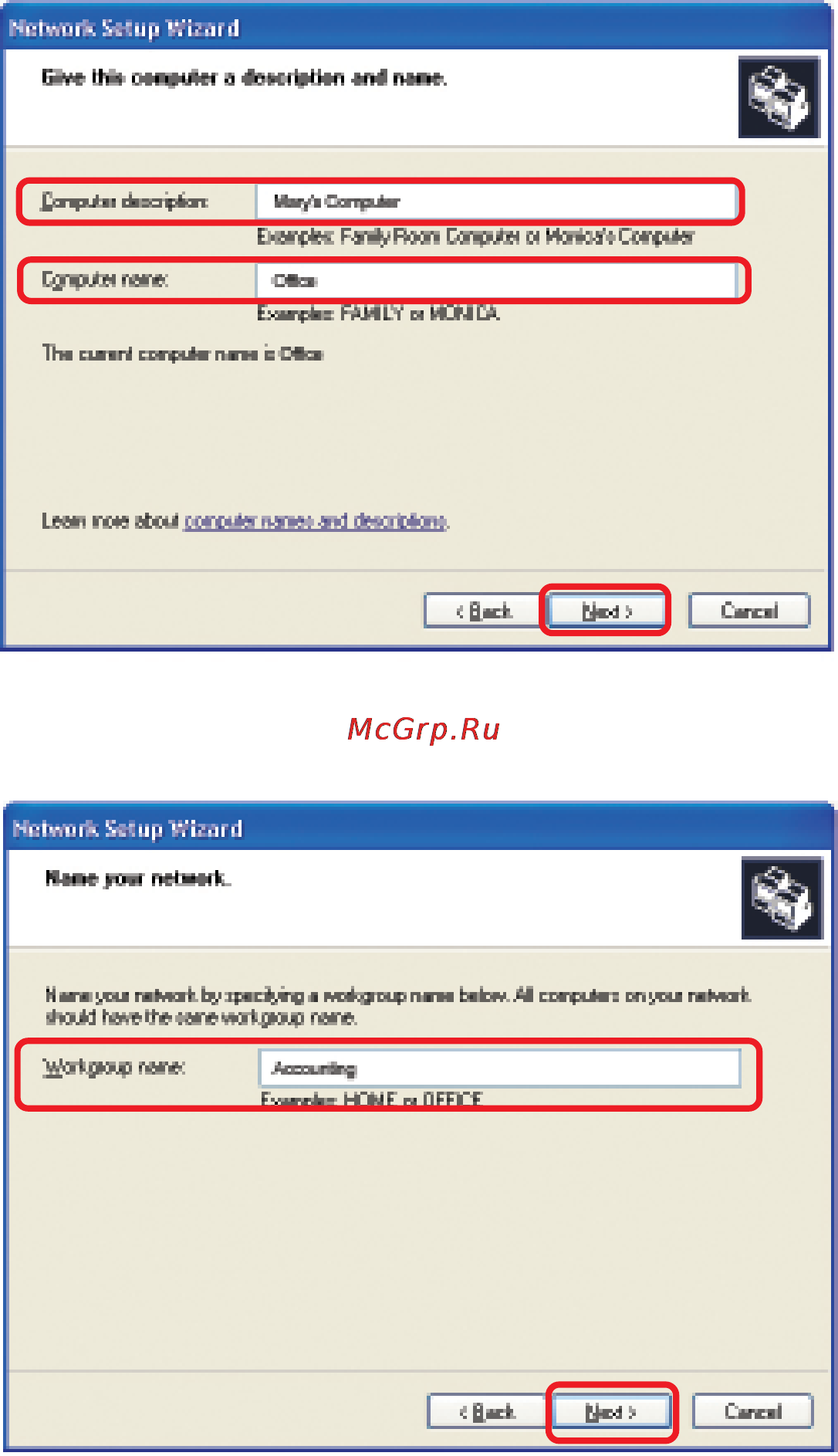

Enter a Computer description and a Computer name (optional.)
Networking Basics
Click Next
Enter a Workgroup name. All computers on your network should have the
same Workgroup name.
Click Next
