Using the Configuration Menu

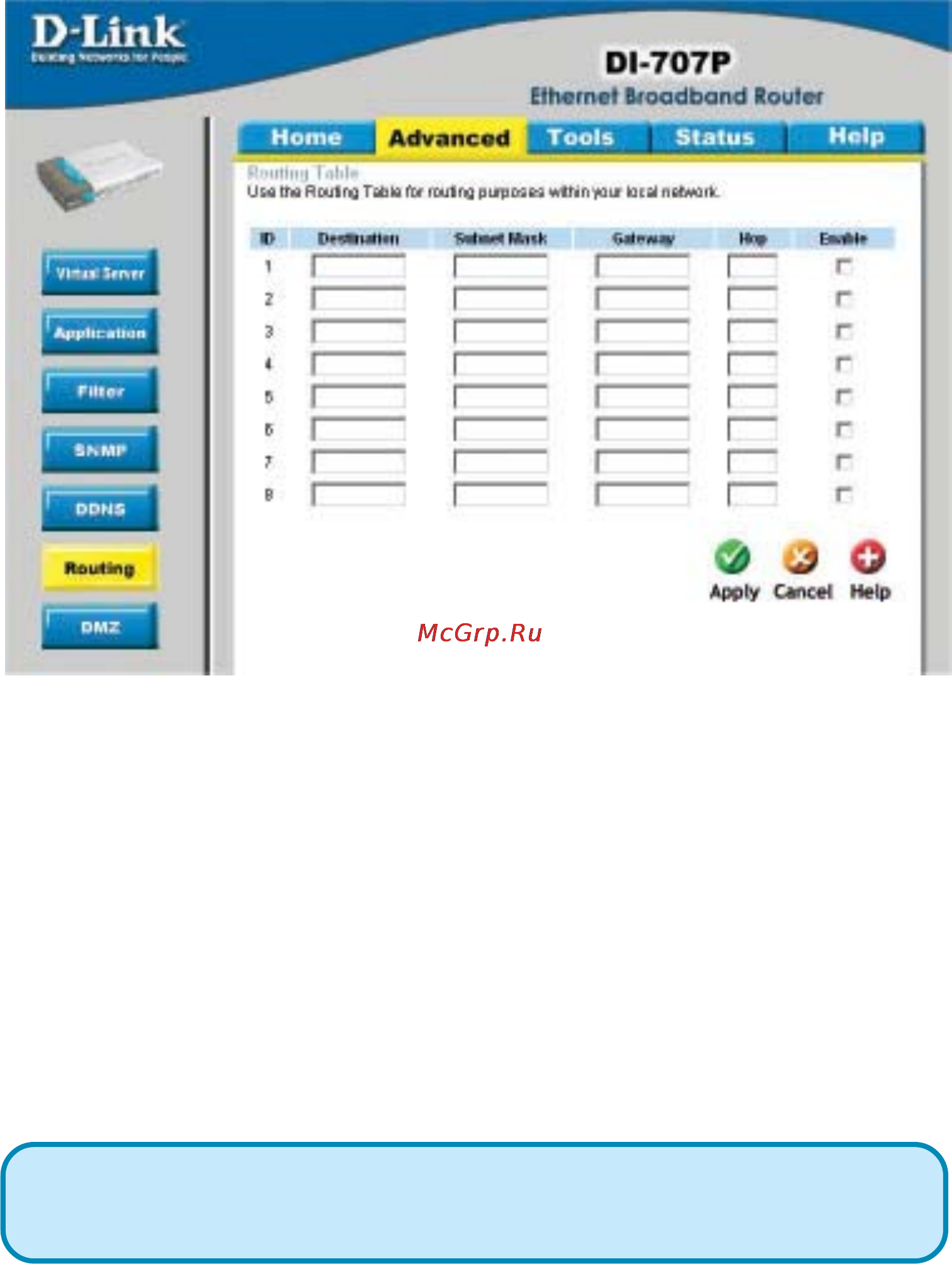

Advanced > Routing
Static routes can be added if you require specific routes within your internal network.
These routes will not apply to the WAN (Internet) network.
Destination- Enter in the IP of the specified network that you want to
access using the static route
Subnet Mask- Enter in the subnet mask to be used for the specified net
work.
Gateway- Enter in the gateway IP address to the specified network.
Hop- Enter in the amount of hops it will take to the specified
network.
Enable- Select this option for the specified static route to take effect.
Hop Count - in a transmission path, each link is terminated at a network device
such as a router or gateway. The number of hops equals the number of routers or
gateways that data must pass through before reaching the destination.
