62
Networking Basics

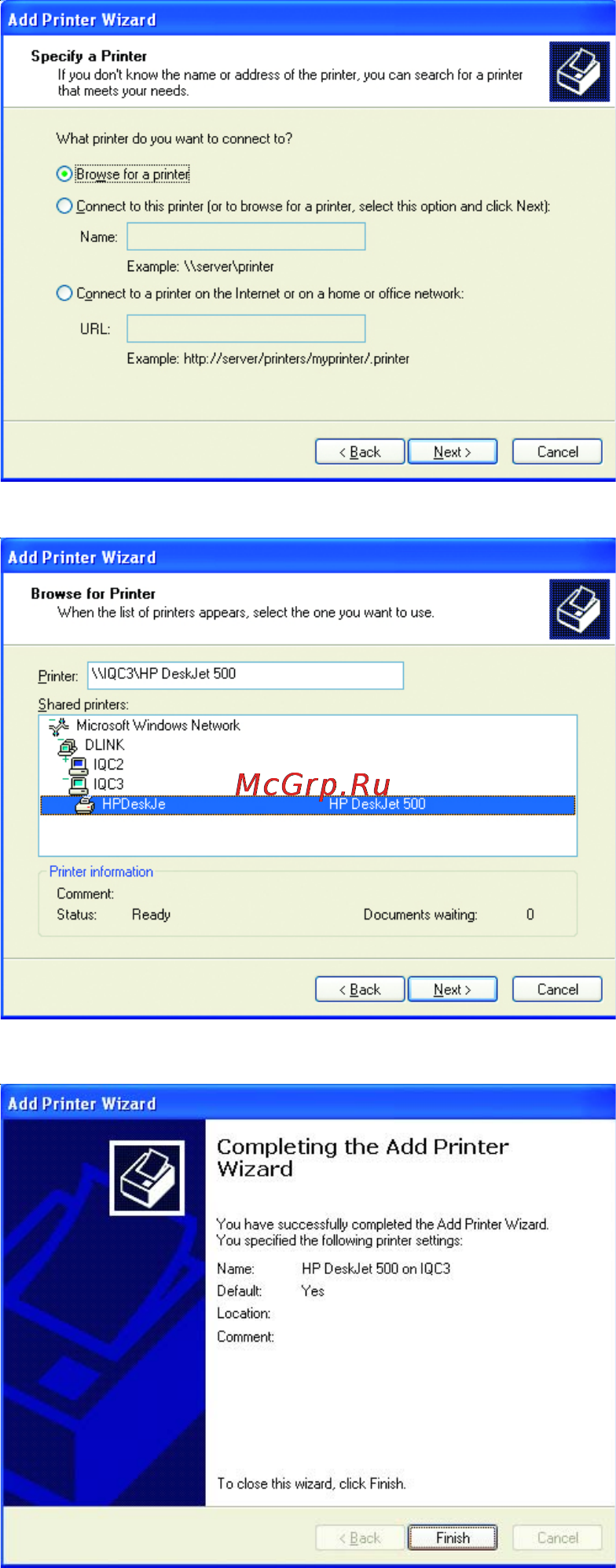

Sharing a network printer
Select Browse for
a printer
Click Next
Select the printer you
would like to share
Click Next
Click Finish
