D-Link DI-707P [64/74] Networking basics sharing an lpr printer
![D-Link DI-707P [64/74] Networking basics sharing an lpr printer](/views2/1045352/page64/bg40.png)
64
Networking Basics
Sharing an LPR printer
To share an LPR printer (using a print server,) you will need a Print Server such as
the DP-101P+. Please make sure that you have run the Network Setup Wizard on
all the computers on your network. To share an LPR printer, please follow these
directions:
Go to Start >
Printers and
Faxes

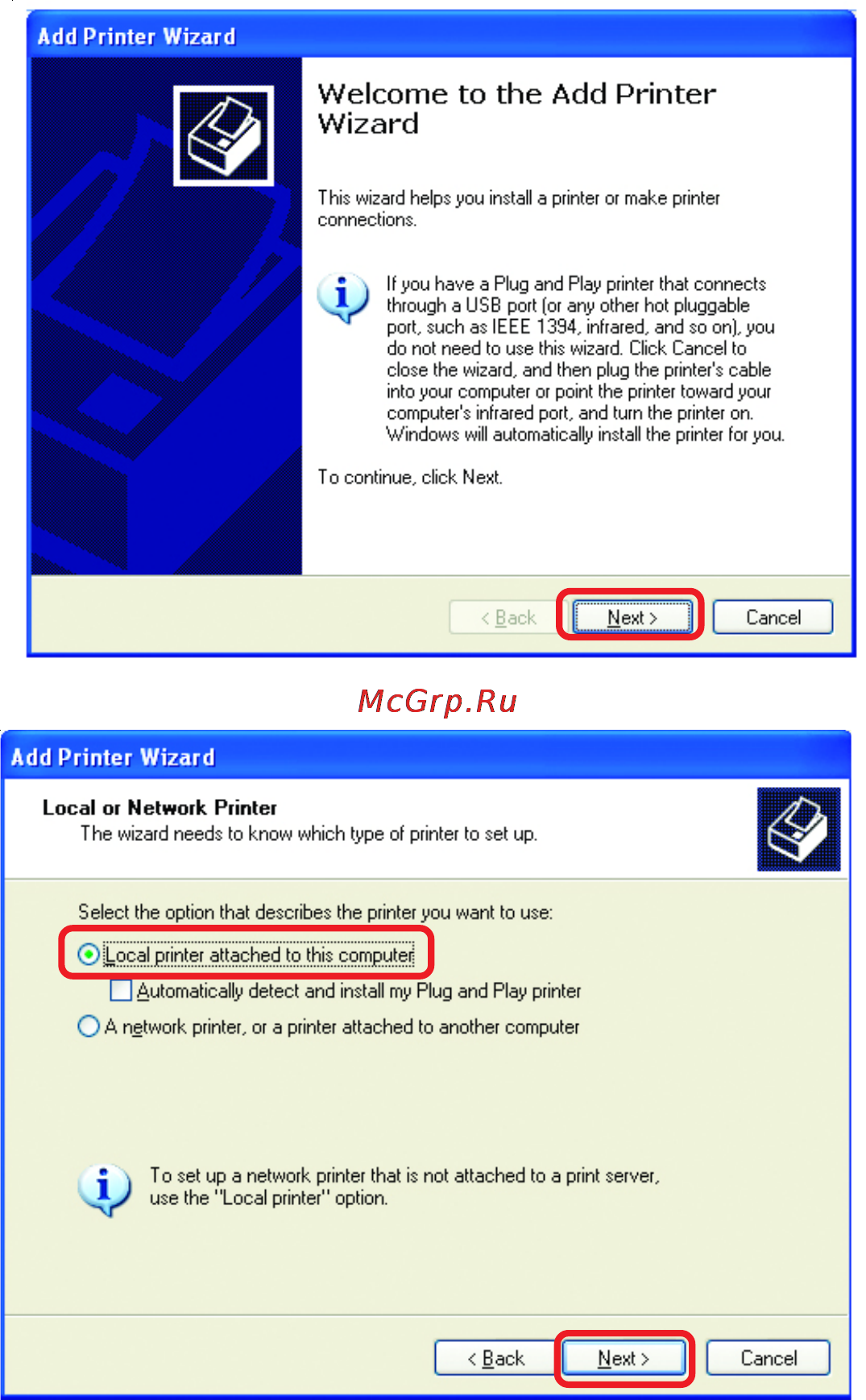

Click on Add
a Printer
The screen to the
right will appear
Click Next
Select
Local
Printer...
Click Next
