61
Networking Basics
Sharing a network printer

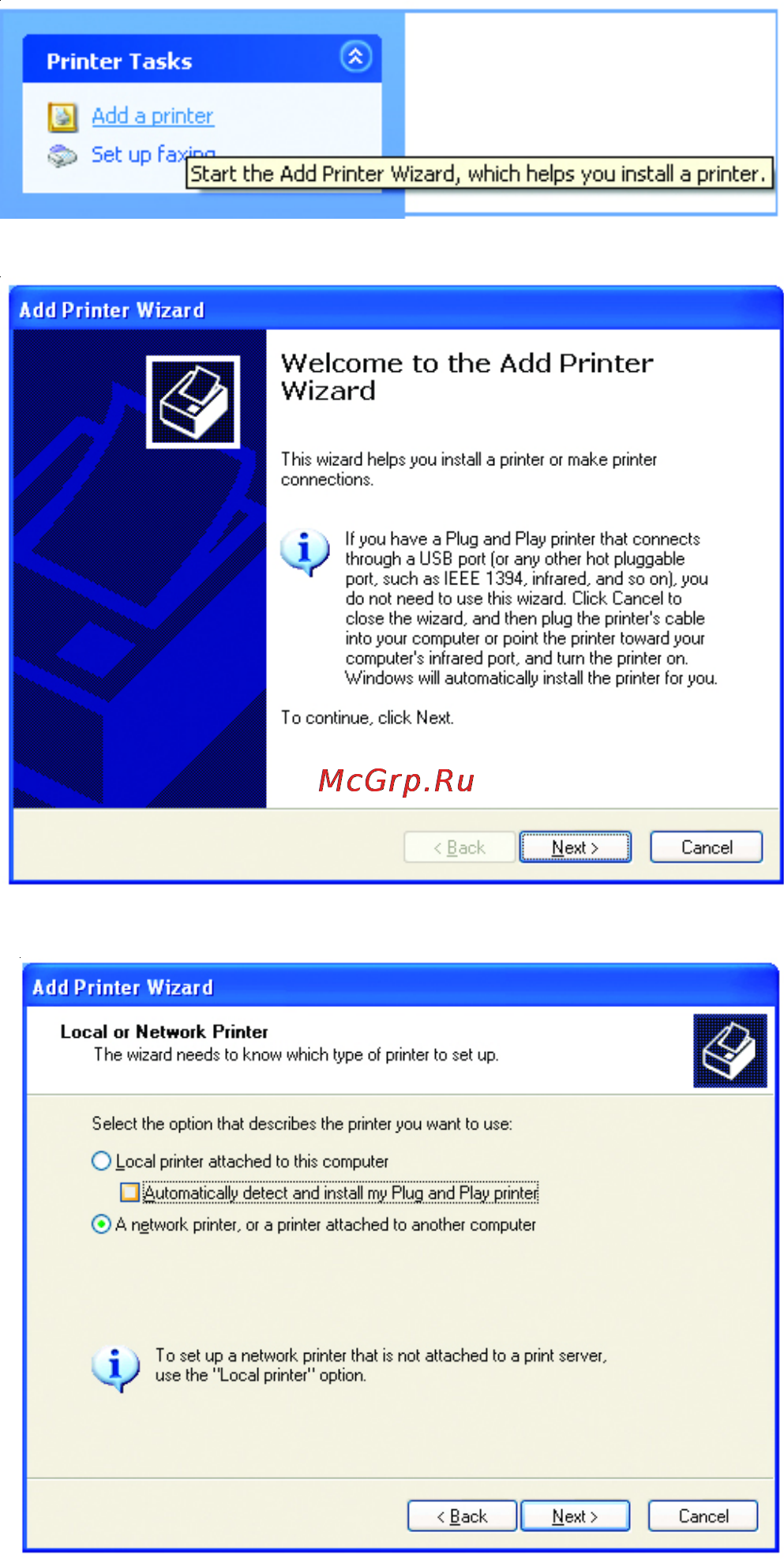

Click on
Add a printer
Click Next
Select
Network Printer
Click Next
