65
Networking Basics
Sharing an LPR printer

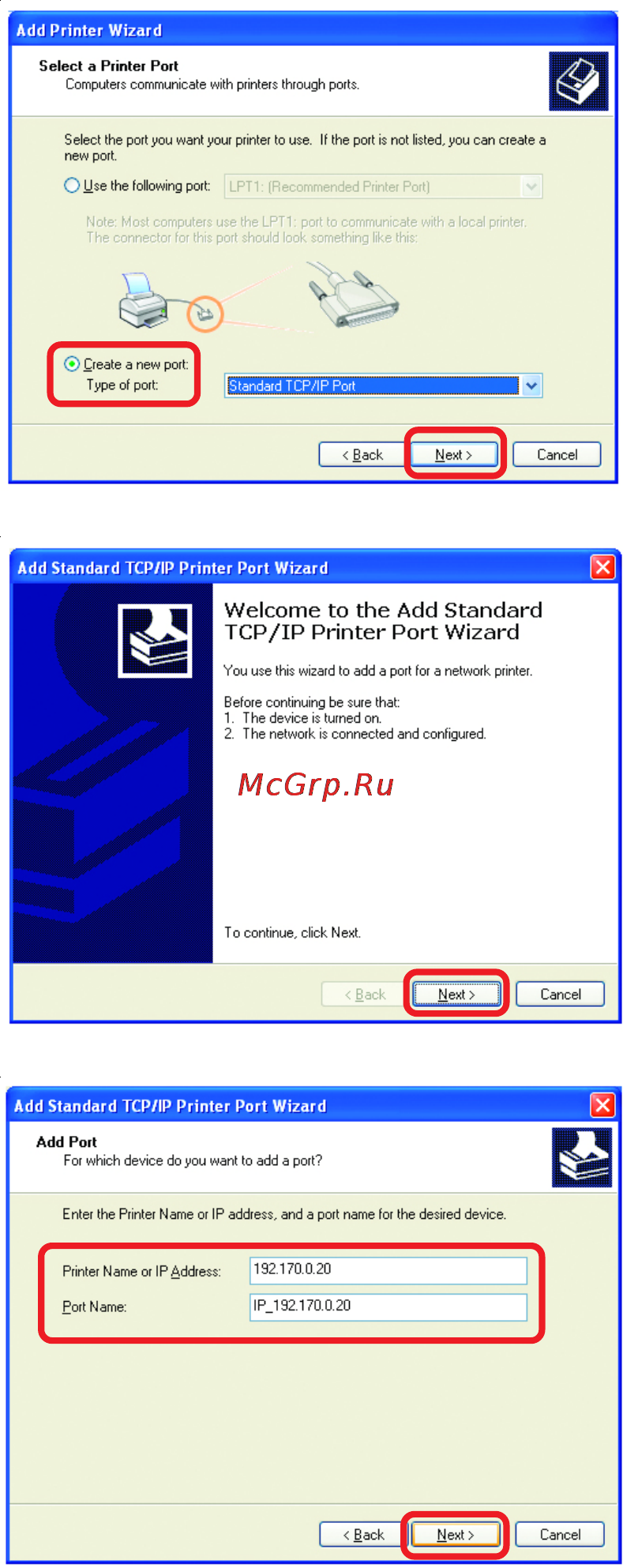

Select Create a new port
From the pull-down menu,
select Standard TCP/IP
Port, as shown.
Click Next
Please read the
instructions on this
screen
Click Next
Enter the Printer IP
Address and the Port
Name, as shown.
Click Next
