Using the Configuration Menu
Status > Log

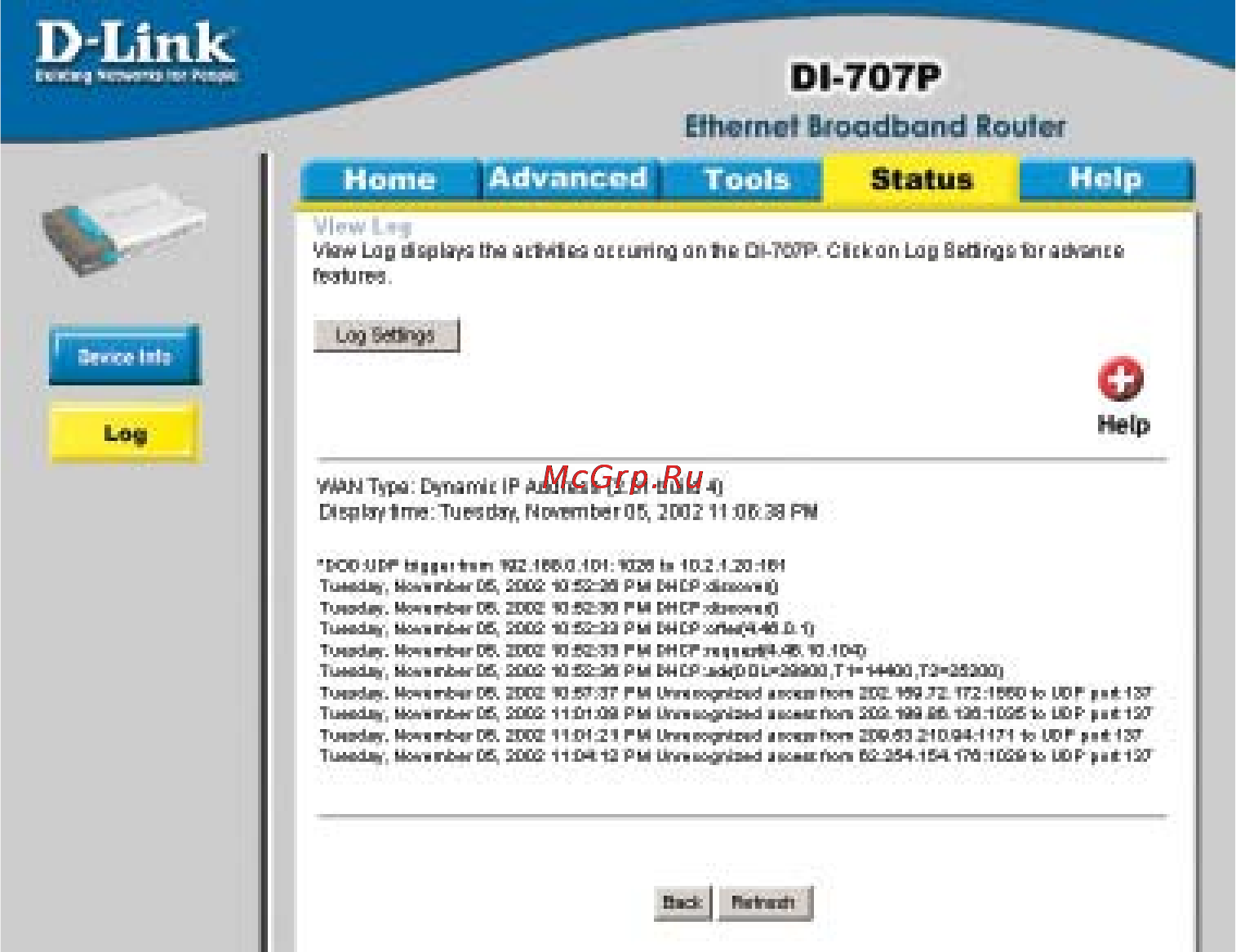

This screen displays activities occurring on the DI-707P.
Log Settings-
Click for advanced features (see next page.)
Back-
Click Back to return to the top of the log.
Refresh-
Click Refresh to update the log.
