D-Link DI-707P [66/74] Networking basics sharing an lpr printer
![D-Link DI-707P [66/74] Networking basics sharing an lpr printer](/views2/1045352/page66/bg42.png)
66
Networking Basics
Sharing an LPR printer

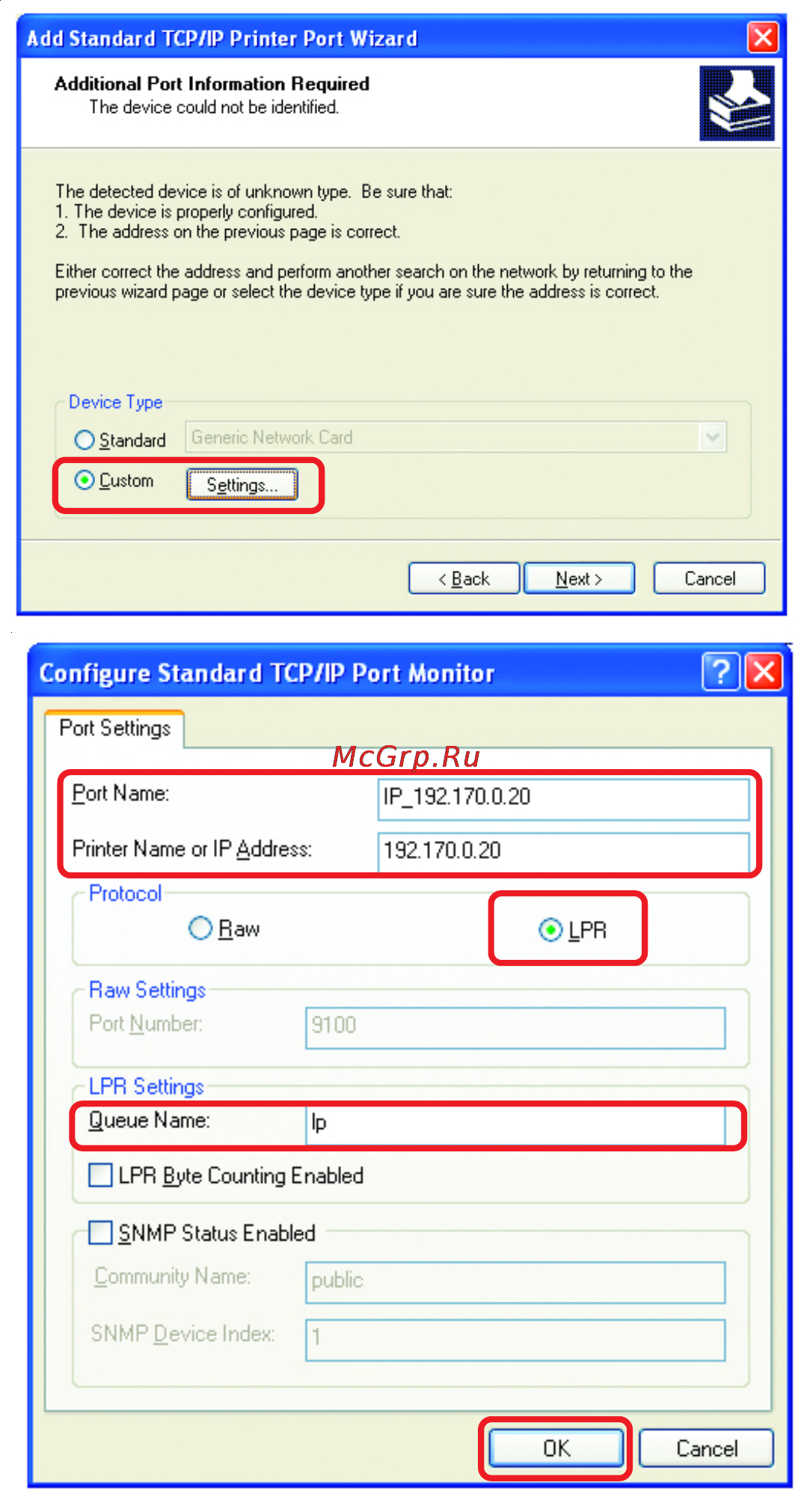

In this
screen,
select
Custom
Click
Settings
Enter the Port
Name and the
Printer Name
or
IP Address.
Select LPR
Enter a
Queue
Name (if your
Print-Server/
Gateway has
more than
one port, you
will need a
Queue
name.)
Click OK
