10
SKEMA 6 / SKEMA 8
- OPERATING INSTRUCTION
10
EN

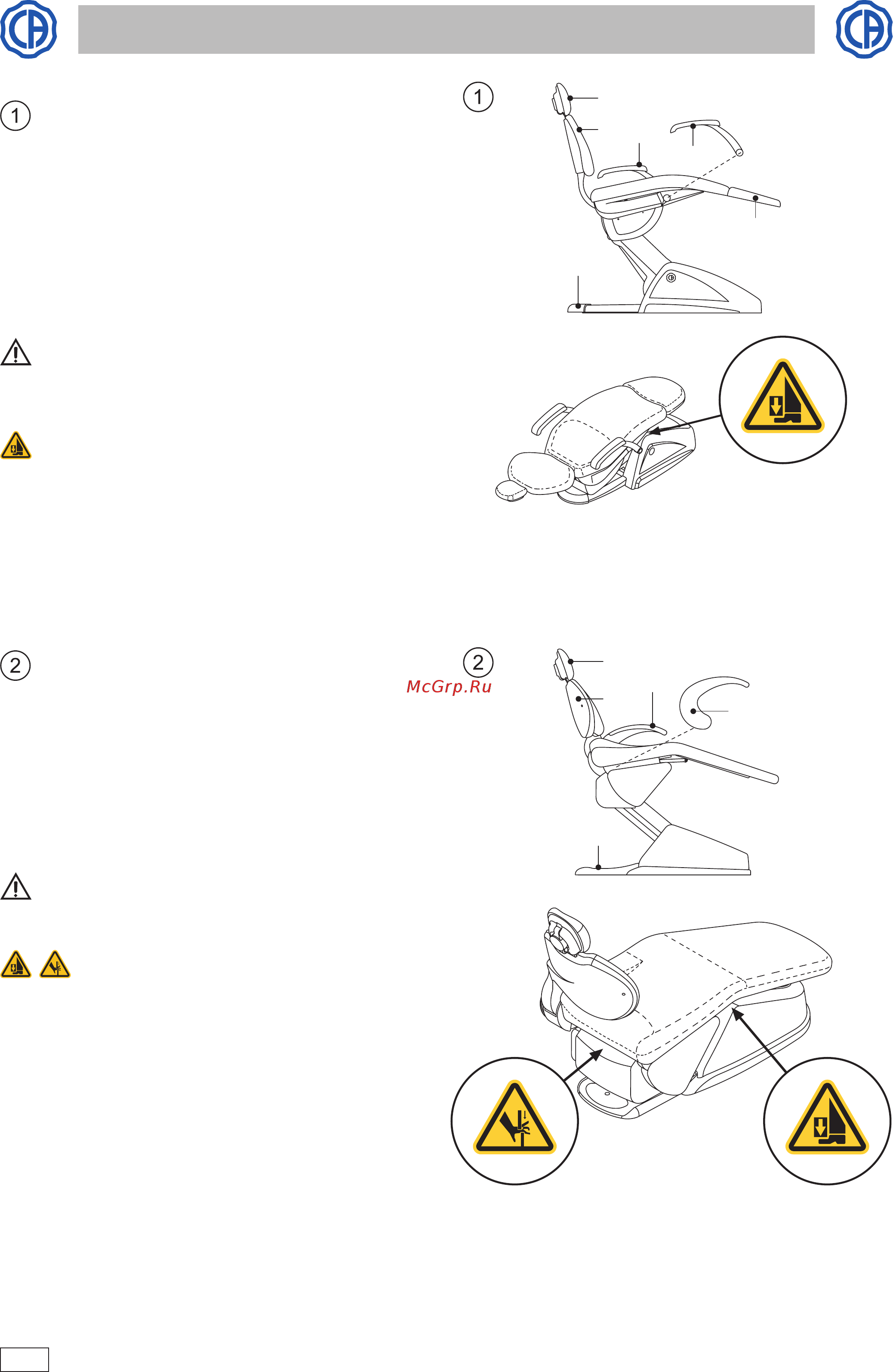

2.3. Dental chair
NEW SKEMA dental chair
Description of the chair.
[ a ] Headrest
[ b ] Back
[ c ] Leftmobilearmrest(optional)
[ d ]Rightmobilearmrest(optional)
[ e ] Safetyfootboard
[ r ] Slidingfootrest
Operating times.
Theoperatingandresttimesareasfollows:work 25 sec. - rest 10 min.
Maximum weight capacity.
Themaximumchaircapacityis190Kg.
WARNING!
Do not exceed this value.
Warnings for use.
WARNING: RISK OF CRUSHING.
Despite the safety systems installed to prevent crushing, certain chair
positions might create dangerous conditions.
The operators need to check the correct posture of the patients during
chair movement.
THESI 3 dental chair
Description of the chair.
[ A ] Headrest.
[ B ] Back.
[ C ]Fixedleft-handarmrest(optional).
[ D ]Rightmobilearmrest(optional).
[ E ] Safetyfootboard.
Operating times.
Theoperatingandresttimesareasfollows:1 min. operation - 14 min. rest
Maximum weight capacity.
Themaximumchaircapacityis190Kg.
WARNING!
Do not exceed this value.
Warnings for use.
WARNING: RISK OF CRUSHING.
Despite the safety systems installed to prevent crushing, certain chair
positions might create dangerous conditions.
The operators need to check the correct posture of the patients during
chair movement.
