Automatic setup of waveform displa

UTD2000/3000 series digital storage oscillograp

has automatic setup functions. It can adjust vertical

deflection coefficient, scanning time base and

trigger mode automatically according to input

signal for the most appropriate waveform display

Frequency of measured signals shall be more tha

or equal to 50Hz and duty cycle shall exceed 1%

according to automatic setup requirements

1. Connect measured signals to signal input

channel

2. Press [AUTO] button so that digital storage

oscillograph can set vertical deflection coefficient

scanning time base and trigger mode

automatically. They can be adjusted again after

careful observation and automatic setup so that

waveform display can realize the best effect

s shown in the following figure, there are a series

of keys and knobs in v ertical control area. Please

introduce usage of vertical setup gradually as

foll ows

Automatic setup

Elementary understanding of vertical system

㧦

5.7-inch vertical

control panel of scree

7-inch vertical control

panel of scree

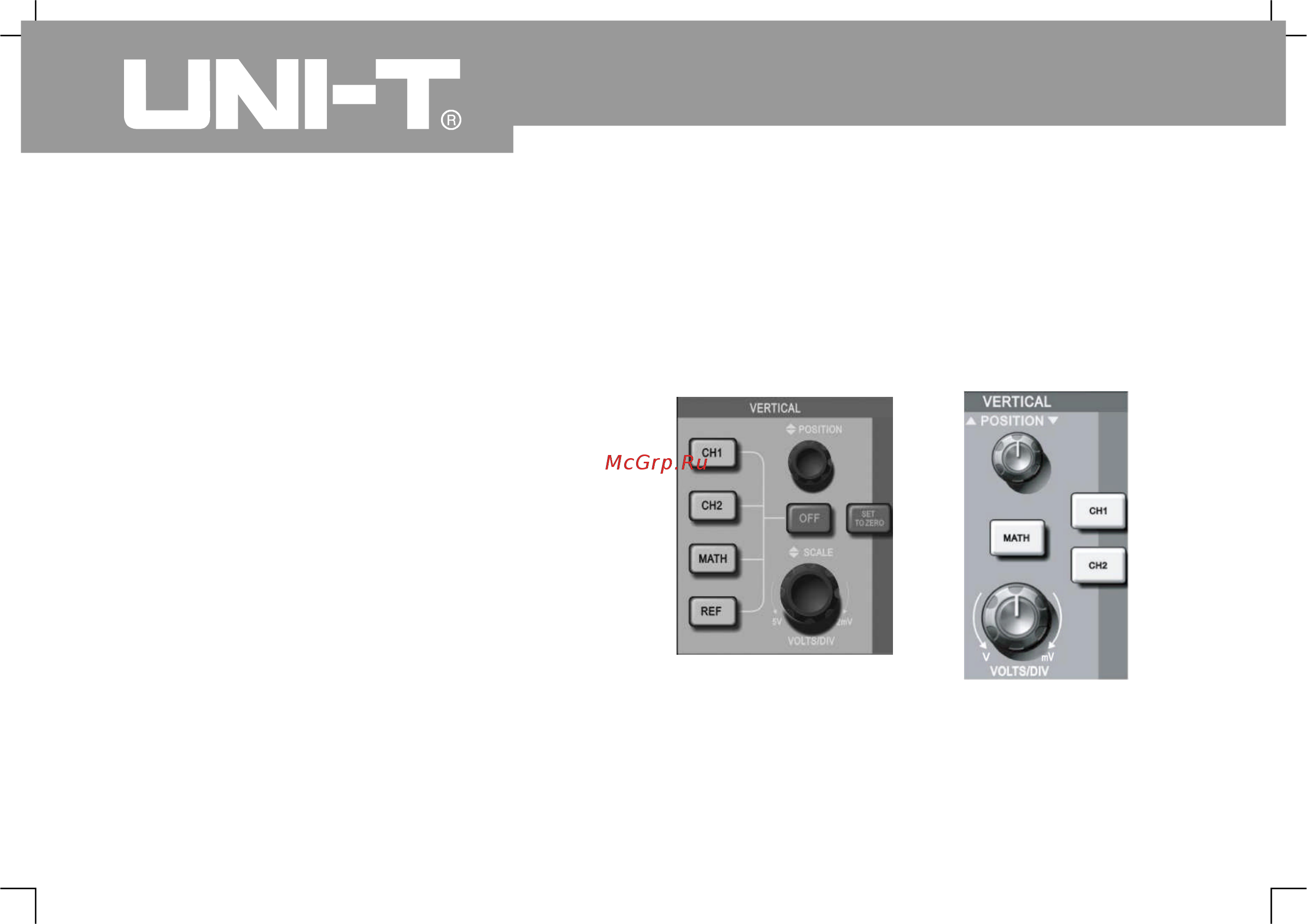

Figure 1 9 Vertical control area on the panel㧙
