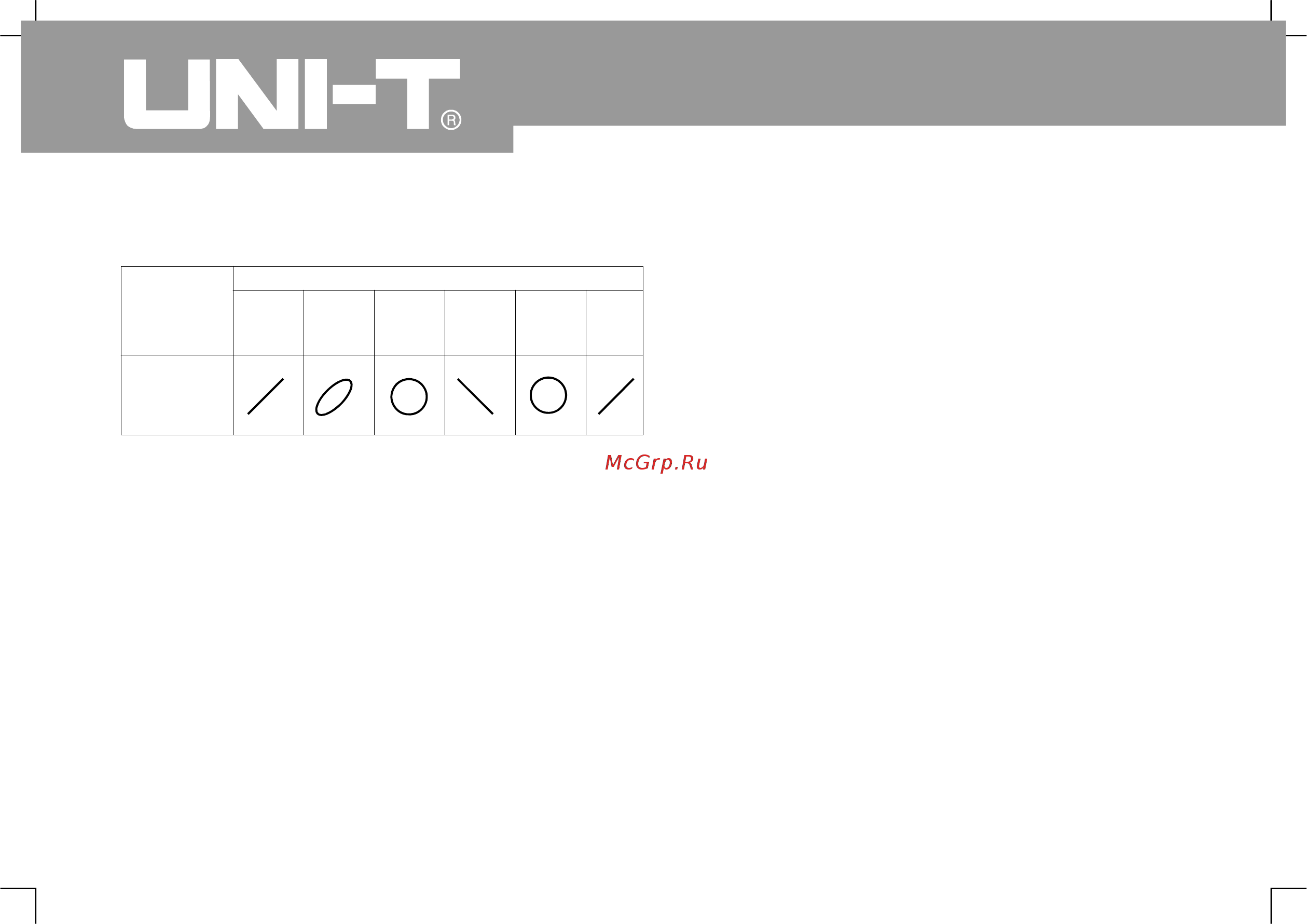

10.Form of X Y phase location difference The seventh example: Trigger of video signal

Trigger of video fiel

Video trigger function can be used for all modes

except UTD2000L/2000EX series. (Of which

UTD2025CL has video trigger function.

)

It has to adopt video trigger to gain stable video

output signal display for observation of a certai

video circuit.

Please operate according to following steps for

trigger in video field

1. To press[ MENU ]button in trigger control area to

display trigger menu

2. To press[ F1] key as menu operation key to select

video type

3. To press[ F2] key as menu operation key to set

trigger source to CH1

4. To press[ F3] key as menu operation key to select

video standard of P

Operating Manual for UTD2000/3000

Frequenc

ratio of

signal

1:1

Phase location difference

0°
