Operating Manual for UTD2000/3000

2. Waveform storage function:

UTD2000 series of oscillograph can provide waveform

storage function. User can press[STORAGE]key and

[F1] key to select storage type of “waveform”. U ser ca

press [F2]key to select channel to save waveform the

pres s[F 5] En te r into next pa ge . Magne ti c disk i n F1

menu position can designate storage position and

default storage position is digital storage oscillograp

(DSO) without plugging in U-disk. Stored magnetic disk

position can be [DSO] or [USB] after plugging in U-disk

Default storage depth shown by F2 is ordinary and

save d wavef or m only can be displ ayed b y osci ll og r ap h

Storage depth can be selected to long storage to save

“.dat a” for ex po rta t ion by wa v ef or m a na l ysi s softwa r e

when plugging in U-disk and selecting magnetic disk

position to [USB]. It is allowed to analyze content data

of every point of saved waveform. User can also press

F5 Ret ur n to pr evi ou s menu then select s to r ag e

posi tio n b y multi -fun c tion butto n t he n press [F3] for

saving

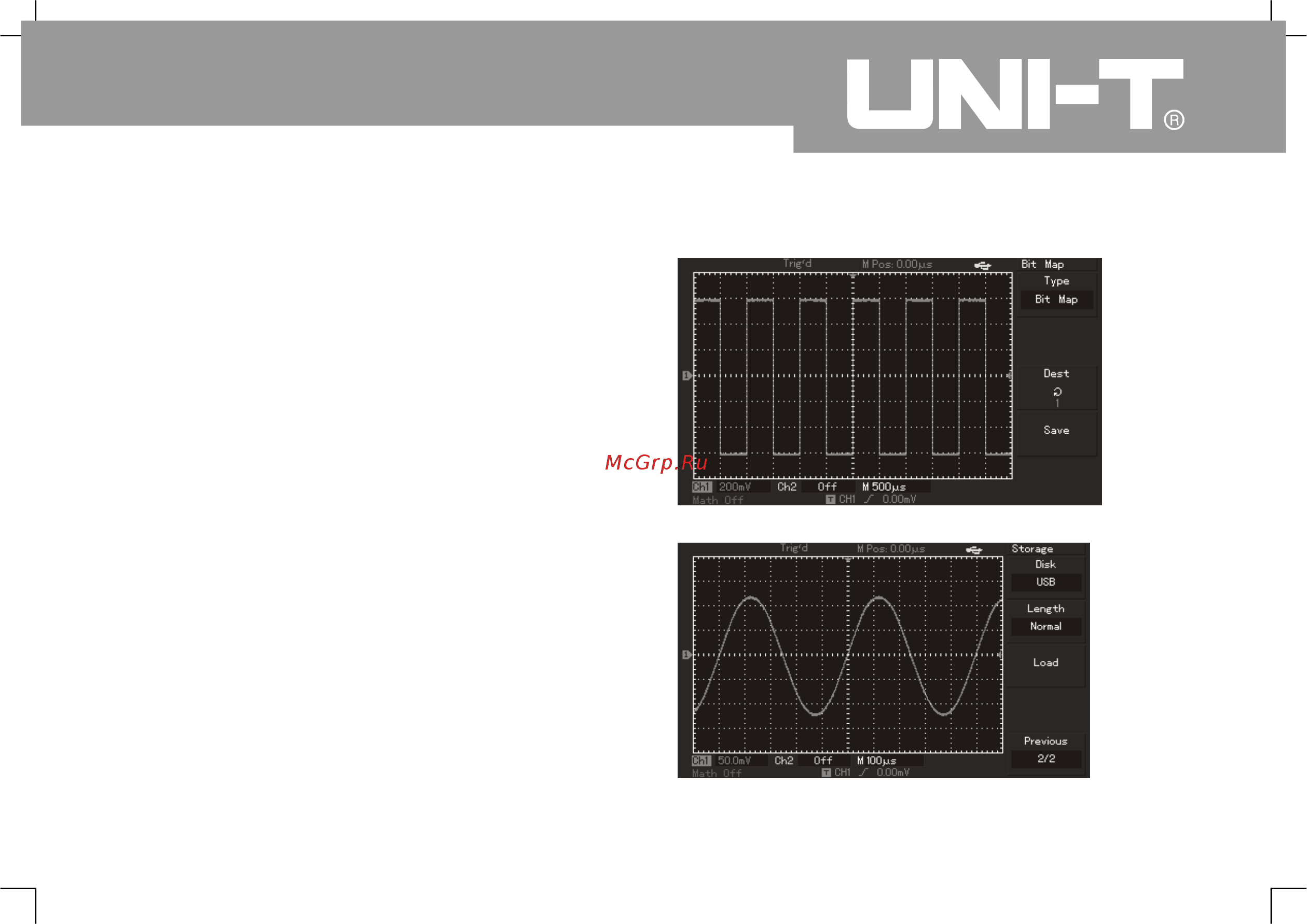

Figure 3-12 Waveform storage by U-disk

Figure 3-11 Waveform storage
