Operating Manual for UTD2000/3000

5. To press [F4] key as menu operation key to select

synchronization of odd field or even field

6. To adjust horizontal time base by rotatin

horizontal SCALE knob in horizontal control area so

as to gain clear waveform display

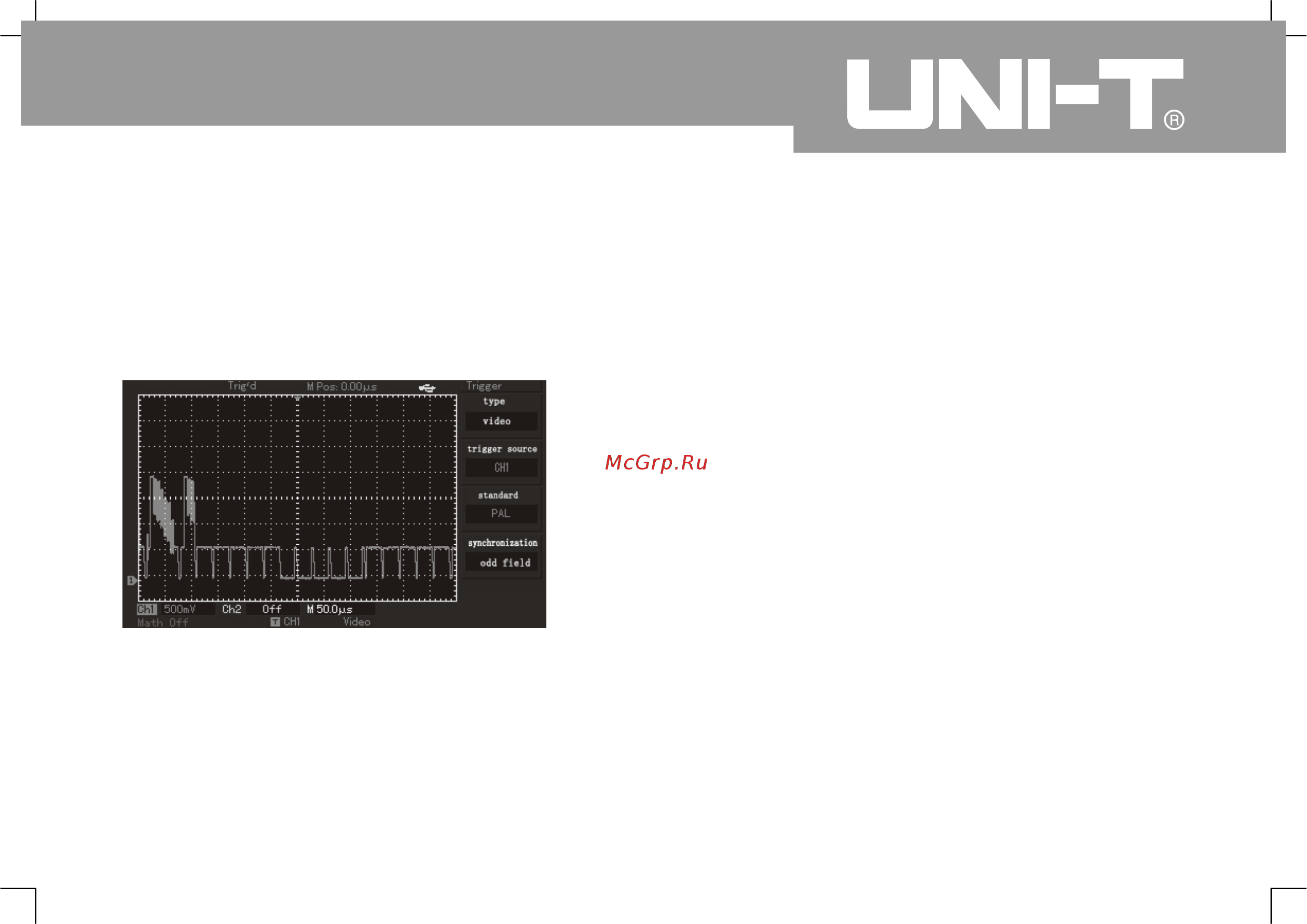

Figure 3-8 Trigger of video field

Please operate according to following steps for

trigger in video row

1. To press [MENU] button in trigger control area to

display trigger area

2. To press[ F1] key as menu operation key to select

video.

3. To press [F2] key as menu operation key to set

trigger source to Ch1

4. To press[F3] key as menu operation key to select

video standar

of PAL

5. To press[ F4] key as menu operation key to select

synchronization to designated row

6. To rotate multi-purpose knob controller for trigger

in any row

7. To adjust horizontal time base by rotatin

horizontal SCALE knob in horizontal control area so

as to gain clear waveform display

Trigger of video row
