Fluke 43B
Users Manual
6

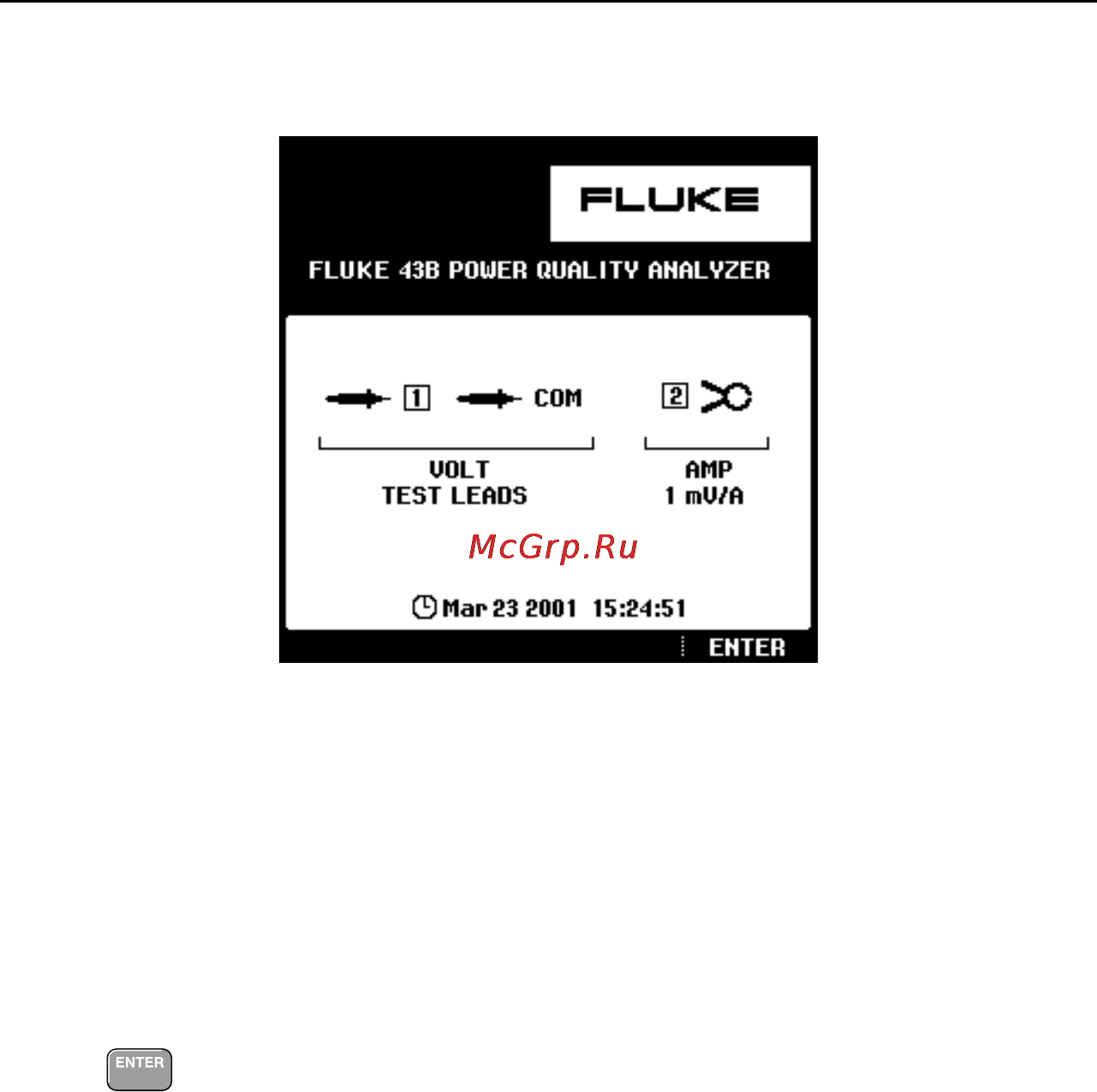

Figure 3. Opening Screen
The screen shows which test leads or probes you should use on the inputs.
Note that in the screen shown in Figure 3, for example, you should use TEST
LEADS
for voltage measurements and a 1 mV/A current probe for current
measurements.
4 Continue.
