Unpacking
1
Unpacking
The following items are included in your Fluke 43B kit:..

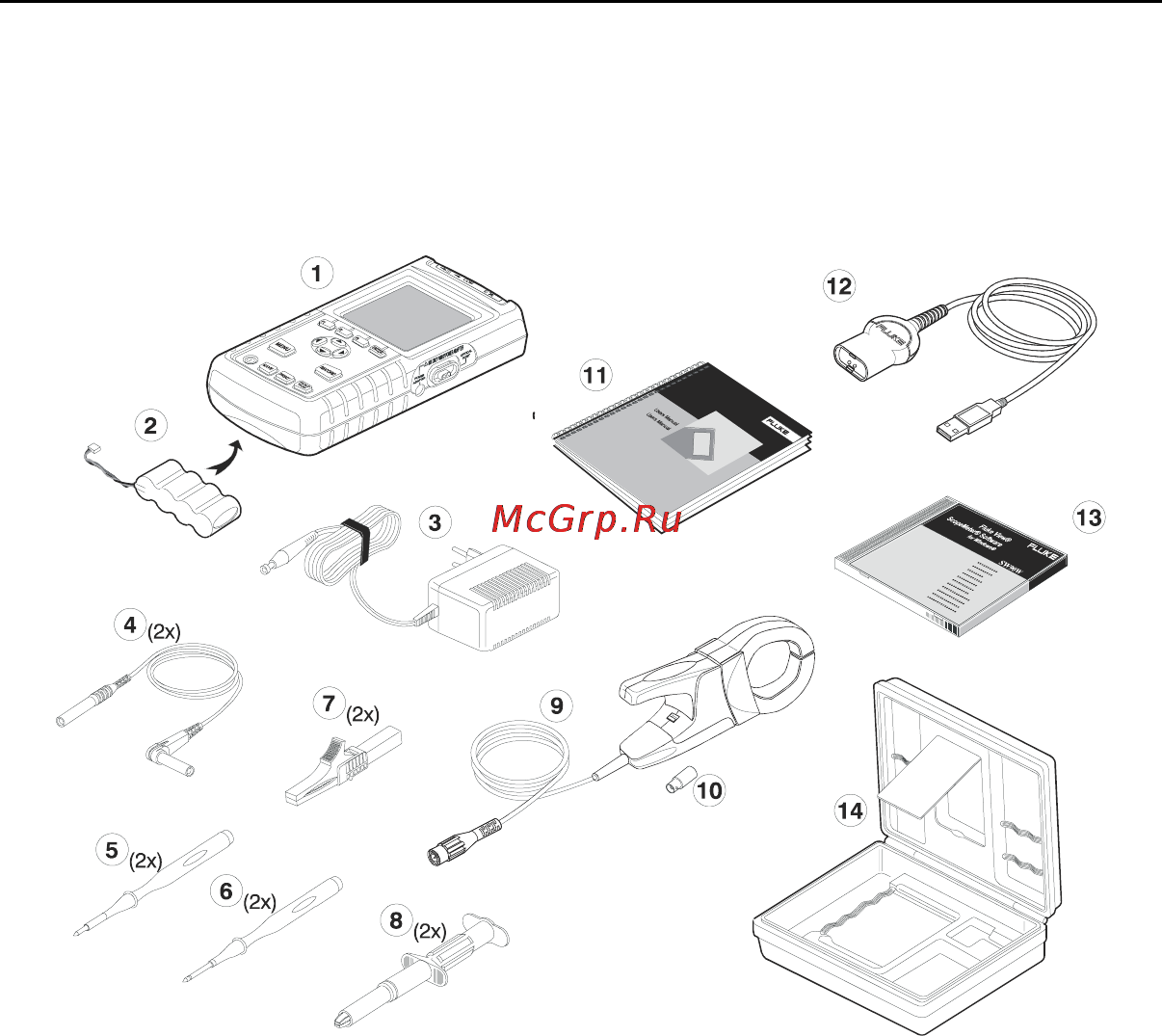

Figure 1. Carrying Case Contents
1 Fluke 43B Power Quality Analyzer
2 BP120MH Ni-MH Battery Pack (installed)
3 PM8907/8xx Power Adapter/Battery Charger
4 TL24 Test Leads, red and black
5 TP1 Flat blade Test Pins, red and black
6 TP4 4mm Test Pins, red and black
7 AC85A Large Jaw Alligator Clips for Banana Plugs, red and black
8 AC20 Industrial Alligator Clips for Banana Plugs, red and black
9 i400s Clamp-on AC Current Probe
10 BB120 Shielded Banana-to-BNC Adapter Plugs (1x black)
11 Getting Started Manual incl. User / Application Manual CD
12 OC4USB Optically Isolated USB Adapter/Cable
13 SW43W FlukeView
®
Power Quality Analyzer software
14 C120 Hard Carrying Case
