Introducing the Fluke 43B
Instrument Setup
1
17
Selecting Probes

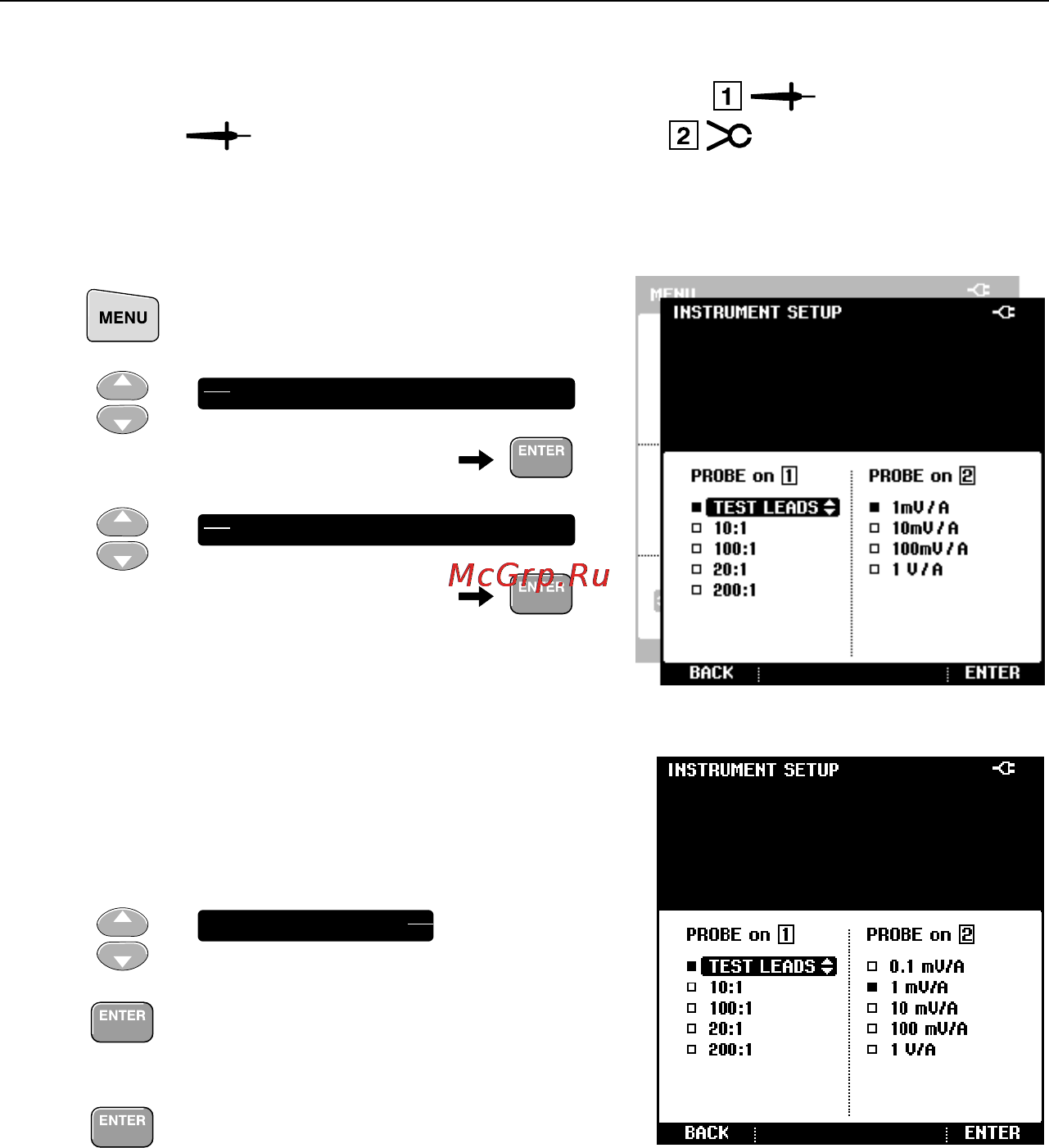

For standard operation, use the red test lead on input , the black test
lead on COM
and the current clamp on input . If you are using
other test leads or probes, you must change the probe settings accordingly.
1
Open the main MENU.
2
3
Select the type of probe you are going to use
on input 1. For all applications in the
Applications Guide, you must use test leads.
4
(for example)
5
Accept the probe settings for
input 1. The screen closes.
6
Select PROBES again.
Select the sensitivity of the current probe you are going to use on input 2.
For all applications in the Applications Guide, use the i400s current probe
and choose 1 mV/A.
INSTRUMENT SETUP
PROBES
TEST LEADS
