Documenting Process Calibrator

Setting Up the Calibrator

4. Press eor the

Choices softkey. The

display appears as follows:

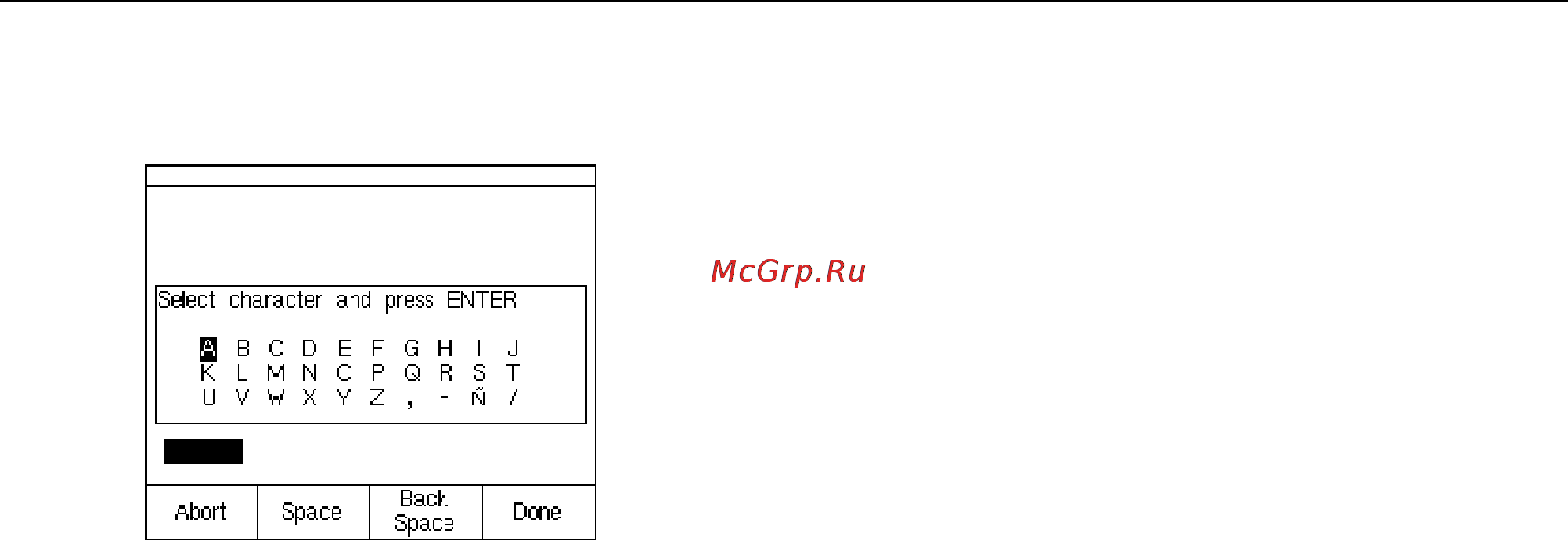

gj40s.eps

5. The ID string is shown at the bottom of the boxed

area. To erase a character, press the

Back

Space

softkey. To erase the whole string, press

6. Press u, d, L, or R to select a character, then

press e. Use the numeric keypad if you

want to enter a number.

7. Repeat step 6 until you are satisfied with the ID

string appearing in the window.

8. Press the

Done softkey.

9. Press the

Done softkey or s to exit Setup

mode.
