Documenting Process Calibrator
Memory Operations
83
Reviewing Memory
Press the More Choices softkey until Review Memory
appears, then press the Review Memory softkey to
recall and view saved results.

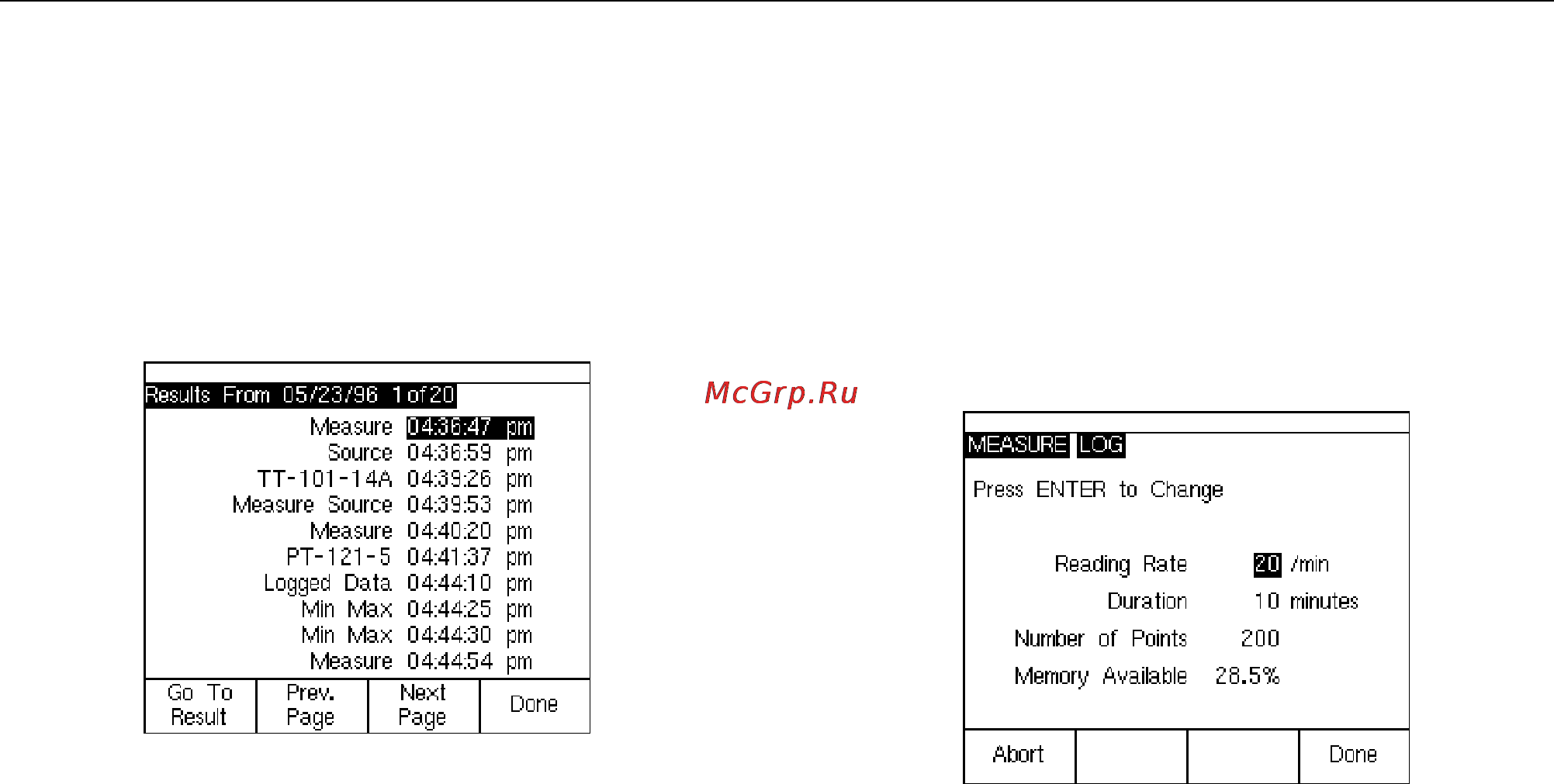

When you press the
Review Memory softkey, the
display changes to:
gj52s.eps
Press u or d and e or the Go to Result
softkey to view a saved result.
Data Logging
You can record a series of measurements for later
uploading to a host computer running compatible
application software. You can log up to 8000
readings, depending on the reading rate, duration,
and how much memory is being used for other things
such as tasks or saved results. You enter the reading
rate and duration in minutes as shown next.
gj53s.eps
