Documenting Process Calibrator

Using Source Mode

7. Press the

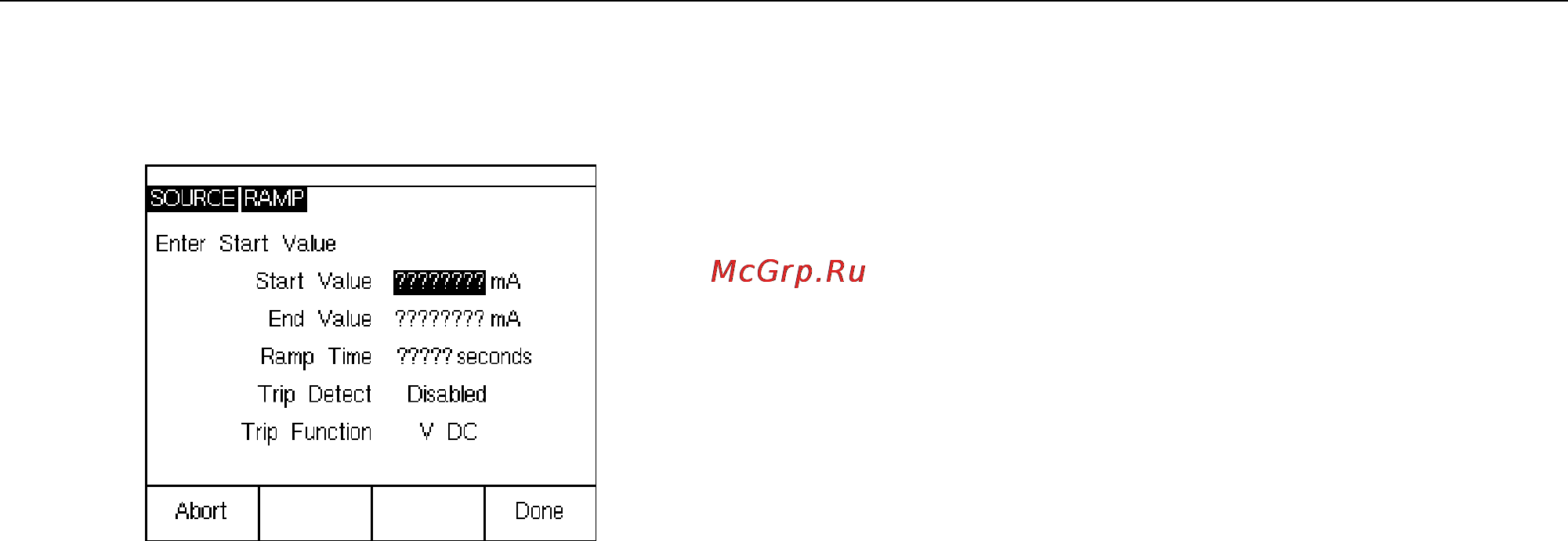

Ramp softkey. The display changes to

the following:

gj41s.eps

8. Fill in the parameters as prompted. Enter the

Start Value, End Value, and Ramp Time.

9. To automatically stop ramping if a trip condition

is detected, set the

Trip Detect to Enabled, and

select

Voltage or Continuity as the trip function.

10. Press the

Done softkey. Note the RAMP

annunciator next to SOURCE at the top of the

display.

11. Select a low-to-high ramp or a high-to-low ramp

with the

Ramp Up/Down softkey.

12. To start ramping, press the

Start Ramp softkey.

13. Ramping continues until a trip is detected (if

enabled), the ramp time expires, or you press

the

Stop Ramp softkey.
