13
Before Using the Remote Control
Use the remote control within the ranges indicated below. If the distance or
angle between the remote control and the remote control light-receiving
area is outside the normal operating range, the remote control may not
work.

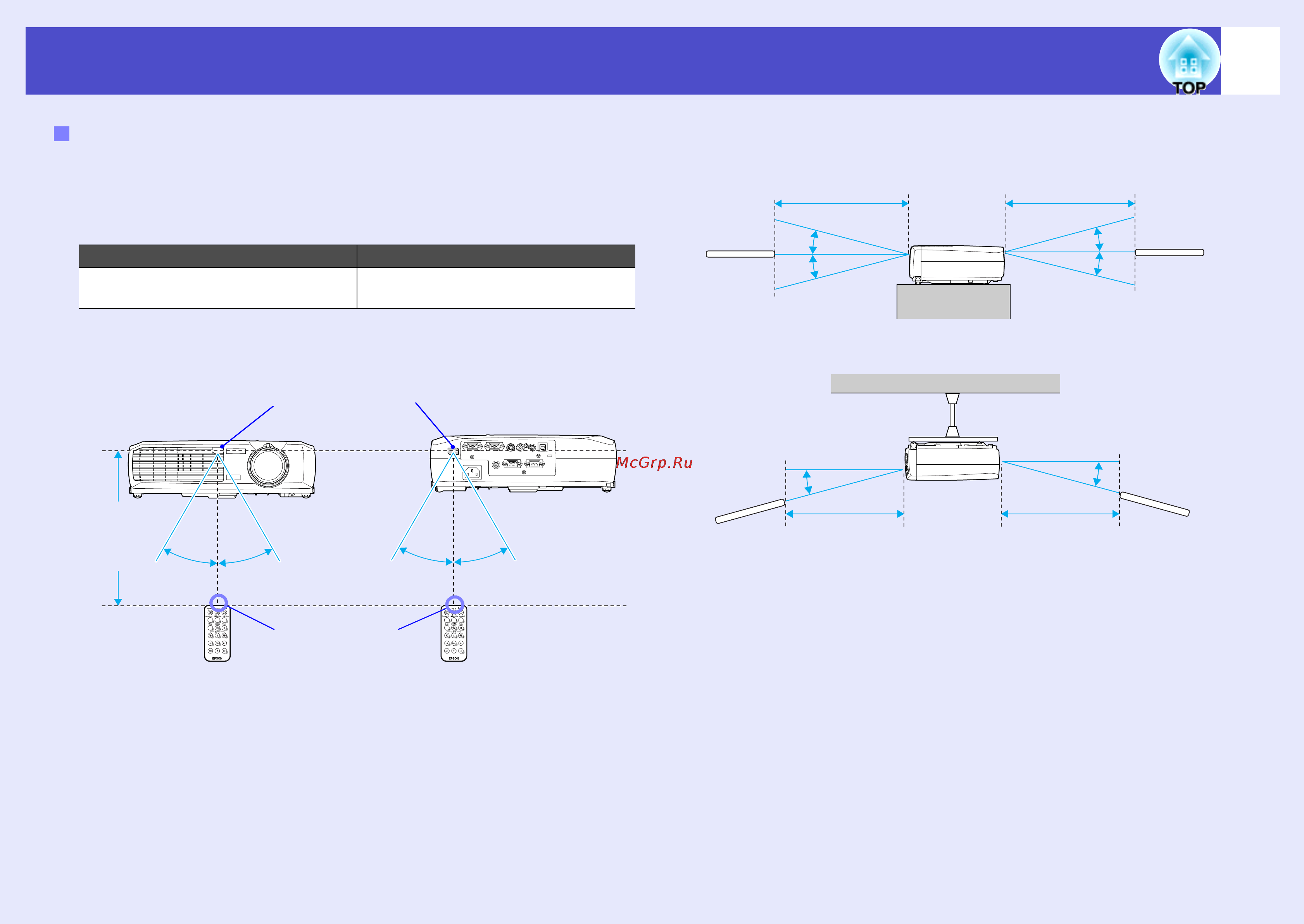

Remote Operating Range
Operating distance
Operating angle
Approx. 6 m (20 ft.)
Approx. ±30º horizontally
Approx. ±15º vertically
Remote control
light-receiving area
Remote control
light-emitting area
Approx. 30º Approx. 30º Approx. 30º
Operating angle (horizontal)
Operating
distance
approx.
6 m (20 ft.)
Approx. 30º
Approx. 15º
Approx. 15º
Approx. 15º
Operating angle (vertical)
When suspended from the ceiling
Operating distance
approx. 6 m (20 ft.)
Operating distance
approx. 6 m (20 ft.)
Approx. 15º
Approx. 15º
Approx. 15º
Operating distance
approx. 6 m (20 ft.)
Operating distance
approx. 6 m (20 ft.)
