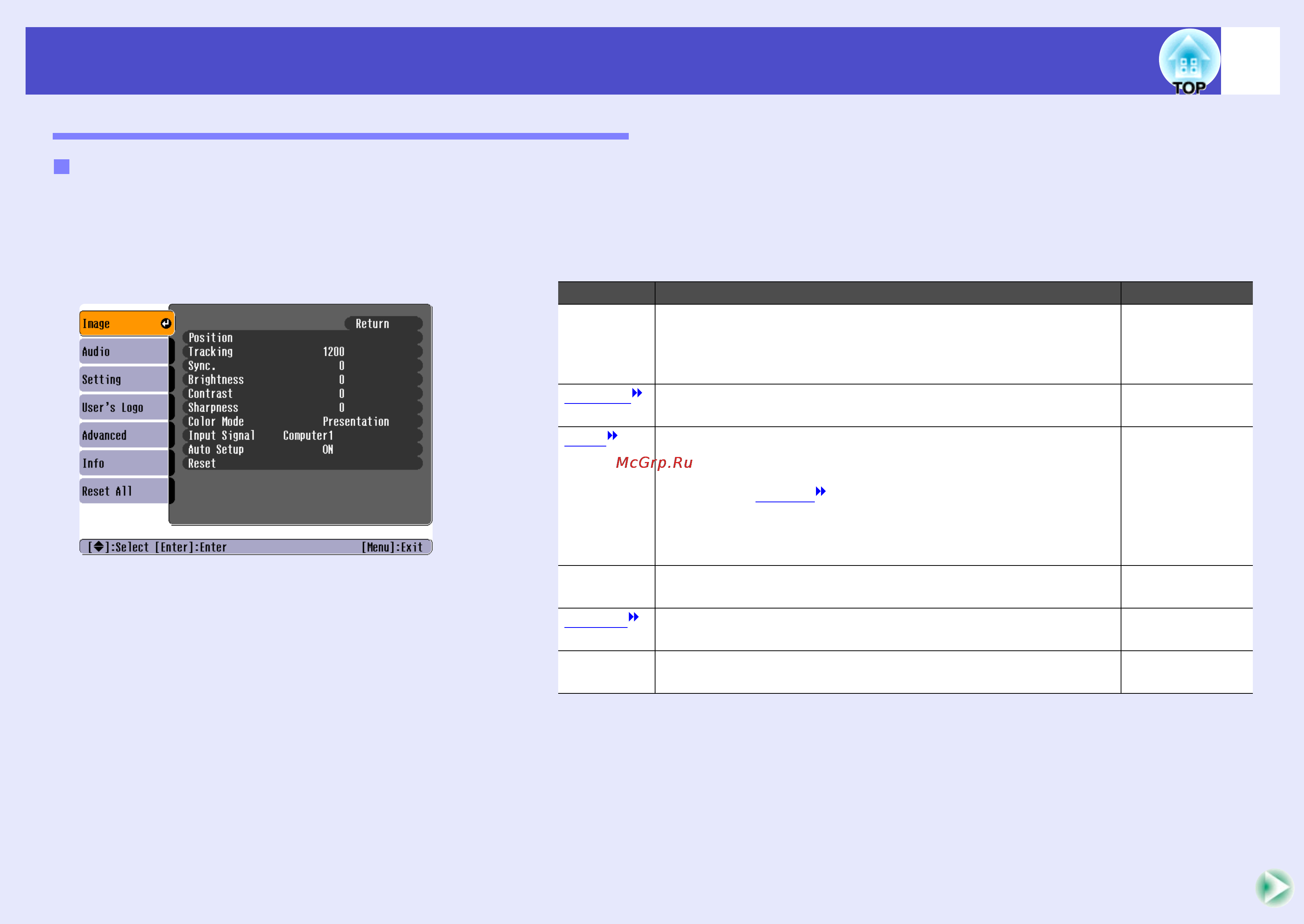

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions
List of Functions
• The functions in the "Image" menu apart fr
om "Input Signal", "Auto Setup" and "Video
Signal" cannot be adjusted while no image
signal is being input.
• The functions which appear in the "Image" menu will change de
pending on the type of input source being used for the image sign
al. Functions which are not
available in the "Image" menu for a partic
ular input source cannot be adjusted.
"Image" Menu
Computer (Analogue-RGB)/RGB video
Sub-menu
Function
Default
Position
Moves the image display position vertically and horizontally.
•Press the [Enter] button on the remote control and make the
adjustment using the display position adjustment screen that
appears.
Depends on
connection
Tracking
Adjusts computer images when vertical stripes appear in the
images.
Depends on
connection
Sync.
Adjusts computer images when flickering, fuzziness or
interference appear in the images.
•Flickering and fuzziness may also appear when the
brightness, contrast
, sharpness or keystone settings are
adjusted.
•You can obtain the best results if you adjust the tracking
first and then adjust the sync.
Depends on
connection
Brightness
Adjusts the image brightness.
Median value
(0)
Contrast
Adjusts the difference between light and shade in the images.
Median value
(0)
Sharpness
Adjusts the image sharpness.
Median value
(0)
