54

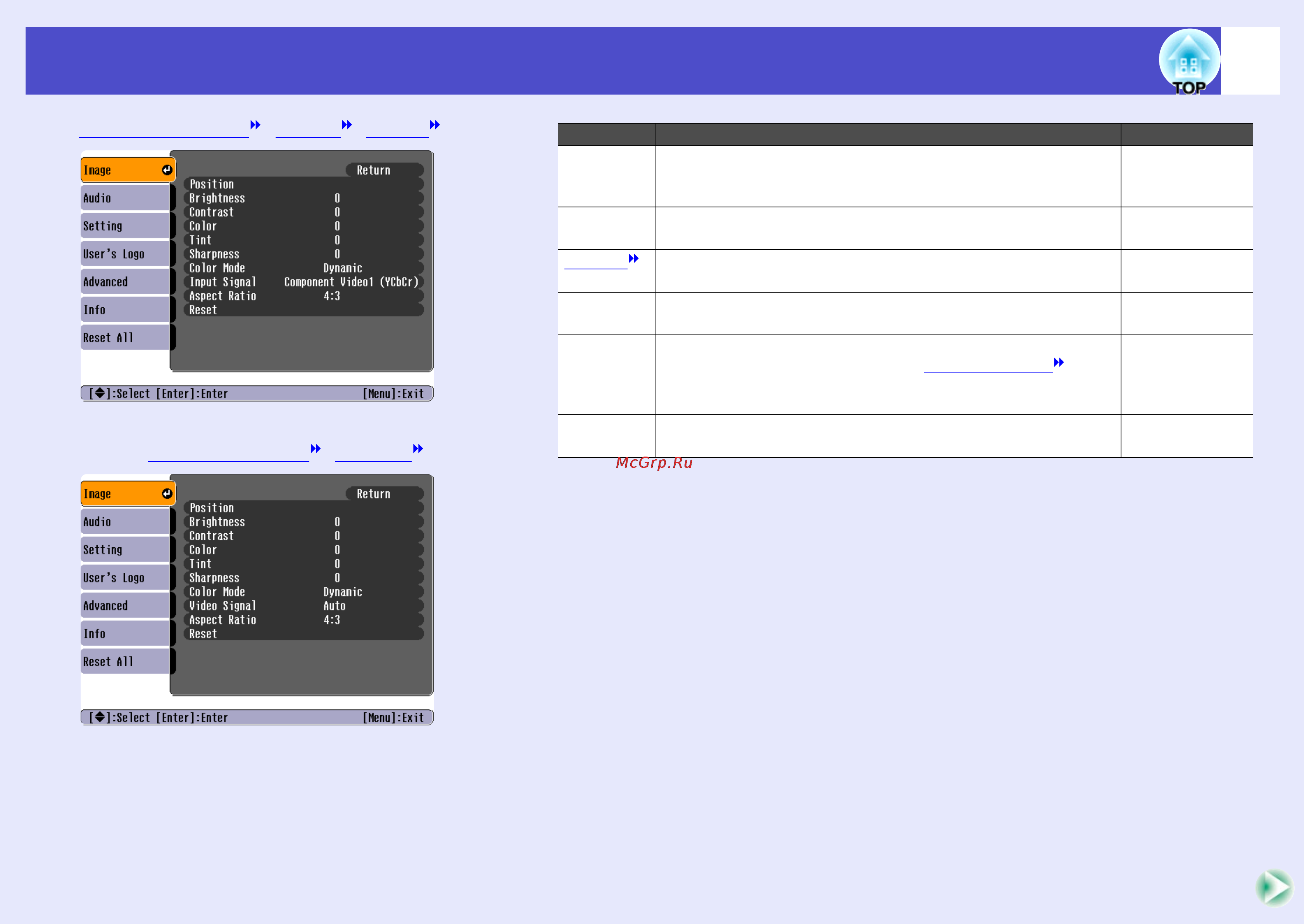

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions
Component video
(YCbCr
, YPbPr
)
Video (
Composite video
, S-Video
)
Sub-menu
Function
Default
Position
Moves the image display position vertically and horizontally.
•Press the [Enter] button and make the adjustment using the
display position adjustment
sub-menu that appears.
Depends on
connection
Brightness
Adjusts the image brightness.
Median value
(0)
Contrast
Adjusts the difference between light and shade in the images.
Median value
(0)
Color
(Not available for RGB video)
Adjusts the colour intensity for the images.
Median value
(0)
Tint
(Not available for RGB video)
(Adjustment is only possible when component video
or
NTSC signals are being input.)
Adjust the image tint.
Median value
(0)
Sharpness
Adjusts the image sharpness.
Median value
(0)
