64
Using the Configuration Menu FunctionsUsing the Configuration Menu Functions
• The "Info" menu shows the setting details for the current image source.
• The "Lamp Hours" item appears as 0H for 0
–10 hours, and after that, it appears in units of 1 hour.

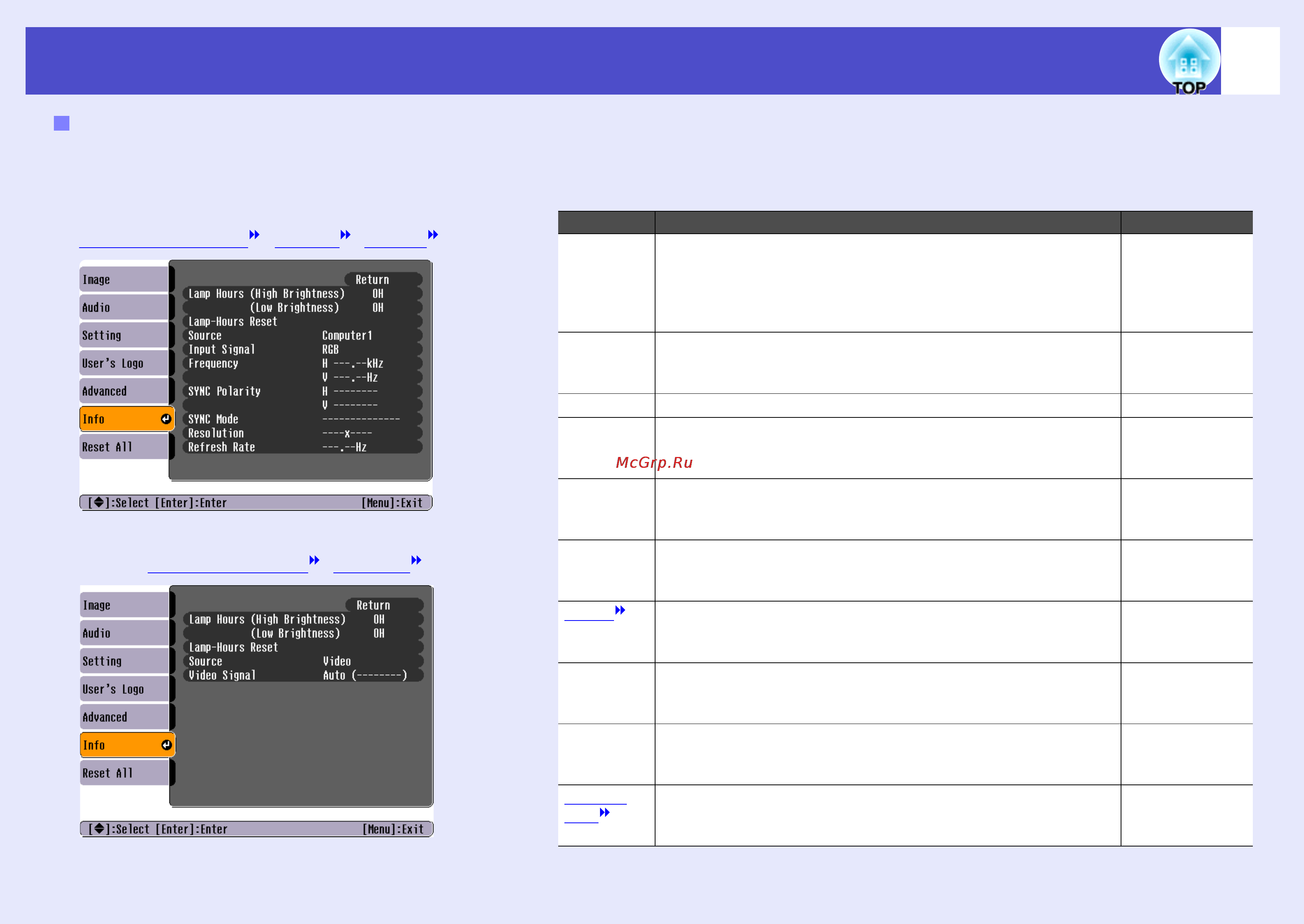

"Info" Menu
Computer (Analogue-RGB)/RGB Video/
Component video
(YCbCr
, YPbPr
)
Video (
Composite video
, S-Video
)
*Contents of the menu screen of EMP-74L differs slightly.
Sub-menu
Function
Default
Lamp
Hours
Displays the cumulative lamp operating time. EMP-74/54
displays the time for both "High Brightness" and "Low
Brightness" individually.
•When the lamp warning period is reached, the display
characters appear in red.
0H
Lamp-
Hours
Reset
Initialises the lamp operating time. When this command is
selected, the cumulative lamp operating time is reset to the
initial default value.
-
Source
Displays the input source which is currently being projected.
Input
Signal
Displays the input signal settings.
(Does not appear when the input source is composite video
or S-video.)
Video
Signal
Shows the video signal format.
(Not displayed for computer, RGB video or component
video images)
-
Frequency
Displays the horizontal and vertical scanning frequencies.
(Does not appear when the input source is composite video
or S-video.)
-
SYNC
Polarity
Displays the sync polarity.
(Does not appear when the input source is composite video
or S-video.)
-
SYNC
Mode
Displays the sync attributes.
(Does not appear when the input source is composite video
or S-video.)
-
Resolution
Displays the input resolution.
(Does not appear when the input source is composite video
or S-video.)
-
Refresh
Rate
Displays the refresh rate.
(Does not appear when the input source is composite video
or S-video.)
-
