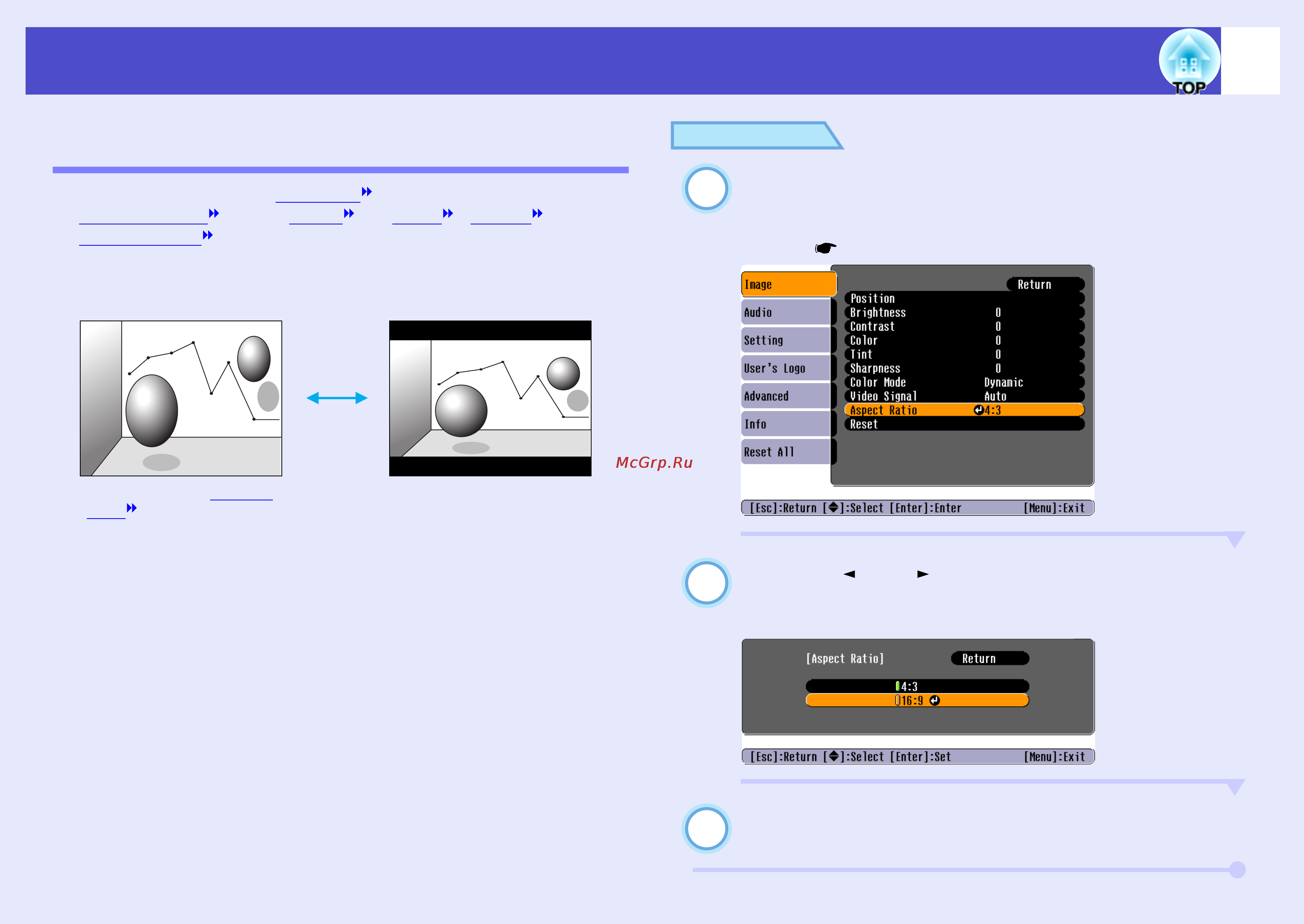

Epson EMP-74L [49/107] Equipment changing the aspect ratio
![Epson EMP-74L [49/107] Equipment changing the aspect ratio](/views2/1055829/page49/bg31.png)
48
Functions for Enha
ncing Projection
Wide-screen Projection of Images from Video
Equipment (Changing the Aspect Ratio)
This function changes the aspect ratio
of images from 4:3 to 16:9 when
component video
images (YCbCr
and YPbPr
), S-Video
or
composite video
images are being projected.
Images which have been recorded in digital video or onto DVDs can be
viewed in 16:9 wide-screen format.
PROCEDURE
Press the [Menu] button on the remote control, and
then select "Aspect Ratio" from the "Image" menu.
For details on this operation, refer to "Using the Configuration
Menus". p.66
Press the [ ] and [ ] buttons to set the aspect ratio to
either "4:3" or "16:9", and then press the [Enter]
button.
After making the adjustment, press the [Menu] button
to exit the configuration menu.
When images in squeeze
mode are projected at 16:9
When images in squeeze
mode
are projected at 4:3
1
2
3
